Chapter 6
6 - 4

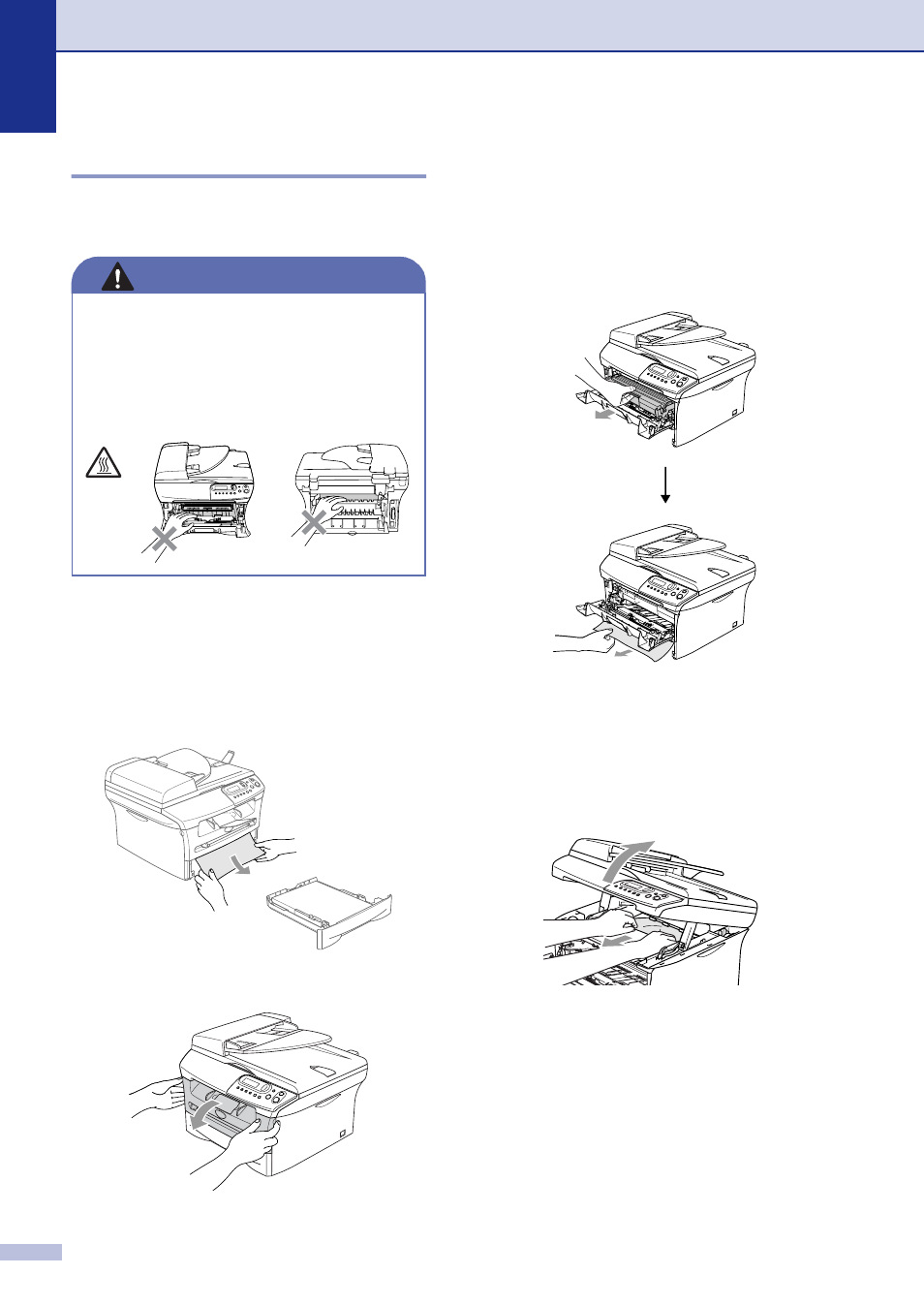

Paper jams
To clear paper jams, please follow the steps
in this section.
Paper is jammed inside the DCP
1
Pull the paper tray completely out of the
DCP.
2
Pull the jammed paper up and out of the
paper tray opening.
3
Open the front cover.
4
Pull out the drum unit and toner
cartridge assembly. The jammed paper
may be pulled out with the toner
cartridge and drum unit assembly, or
this may release the paper so you can
pull it up and out of the paper tray
opening.
5
If you can not remove the drum unit and
toner cartridge assembly easily, do not
use extra force. Instead, lift the scanner
cover and use both hands to carefully
pull the jammed paper up and out of the
output tray opening.
WARNING
After you have just used the DCP, some
parts inside the machine are extremely
hot. When you open the front cover or
back cover of the DCP, never touch the
shaded parts shown in the following
diagram.
