6 Appendix
815 Robotic USB Sample Processor XL
■■■■■■■■
53
The arm can be equipped with two microelectrodes, one propeller stirrer
and three spray nozzles. Two buret tips with anti-diffusion valve and one
aspiration tip with connections for M6 tubing are already retracted into
the arm.
Material: PP
6.1462.160
Robotic arm with holder for a titration head and beaker sensor,
left-swinging
The arm can be modified to create the desired titration robotic arm by
means of the installation of a titration head 6.1458.xxx.
Material: PP
6.1462.170
Robotic arm with holder for a titration head and beaker sensor,
right-swinging
The arm can be modified to create the desired titration robotic arm by
means of the installation of a titration head 6.1458.xxx.
Material: PP
6.4.2
Robotic arms for sample preparation

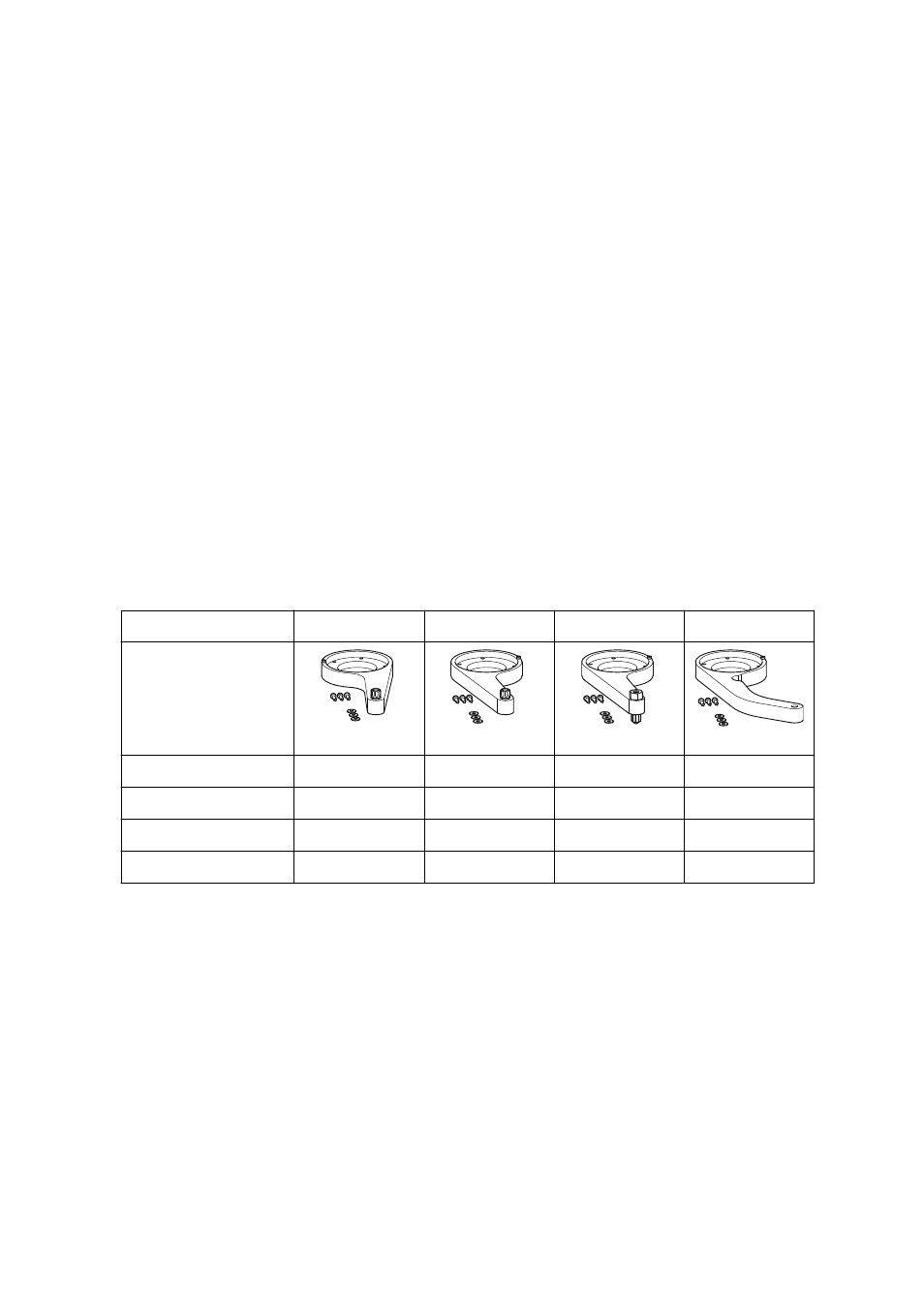

Table 4
Configuration data of the robotic arms for sample preparation
Type
6.1462.030
6.1462.040
6.1462.090
6.1462.240
6.1462.030
6.1462.040
6.1462.090
6.1462.240
Swing direction
+
–
–
–
Swing offset
8°
8°
8°
–8.6°
Max. swing angle
117°
117°
117°
122°
Swing radius
112 mm
112 mm
112 mm
149.8 mm
6.1462.030
Robotic arm with transfer head, left-swinging
Robotic arm for fully automated pipetting or dilution of liquid samples
with Sample Processor Systems.
Material: PP
6.1462.040
Robotic arm with transfer head, right-swinging
