1.2 Instrument description
■■■■■■■■■■■■■■■■■■■■■■
4
■■■■■■■■

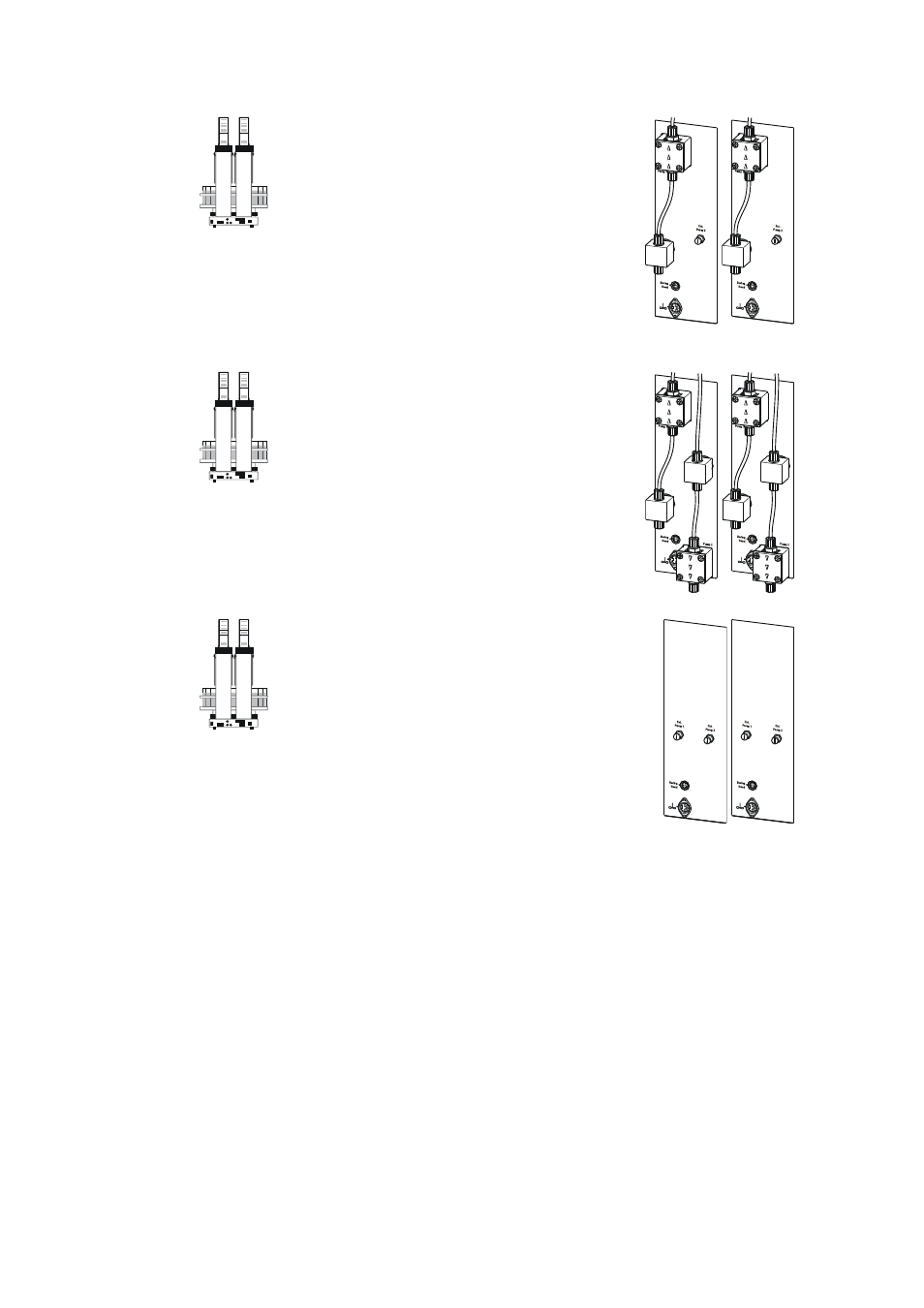

815 Robotic USB Sample Processor XL
2.815.0110
2-Tower version
■
2 membrane pumps and 2 valves
■
2 connectors for external pumps
■
2 stirrer connectors (tower stirrer)
■
2 Swing Head connectors
■
3 MSB connectors for dosing devices or stir-
rers
■
2 USB connectors
■
1 controller connection
2.815.0120
2-Tower version
■
4 membrane pumps and 4 valves
■
2 stirrer connectors (tower stirrer)
■
2 Swing Head connectors
■
3 MSB connectors for dosing devices or stir-
rers
■
2 USB connectors
■
1 controller connection
2.815.0130
2-Tower version
■
4 connectors for external pumps
■
2 stirrer connectors (tower stirrer)
■
2 Swing Head connectors
■
3 MSB connectors for dosing devices or stir-
rers
■
2 USB connectors
■
1 controller connection
1.2.2
Instrument components
The 815 Robotic USB Sample Processor XL has the following components:
■
Turntable
For sample racks with a diameter of up to 48 cm.
■
One or two towers with lift
With titration head holder. Each lift can subsequently be extended by a
Swing Head and a robotic arm.
■
One, two or no membrane pump per tower
Instead of an integrated pump, an external pump connector is availa-
ble depending on the model version.
