Page 50

3.16 Mounting the drip pan
■■■■■■■■■■■■■■■■■■■■■■
42
■■■■■■■■
815 Robotic USB Sample Processor XL
5 Loosen the screw for fastening the bracing on the rear panel of the
tower (see figure) and fix the bracing with the enclosed hexagon
screw.
6 Fix the bracing to the support rod with a hexagon key, see figure.
3.16
Mounting the drip pan
Serious damage to the instrument or a danger to the user can occur if
chemicals or liquid samples are spilled. The use of the drip pan
(6.2711.060) is recommended in order to avoid such incidents.
Mounting the drip pan
1
2

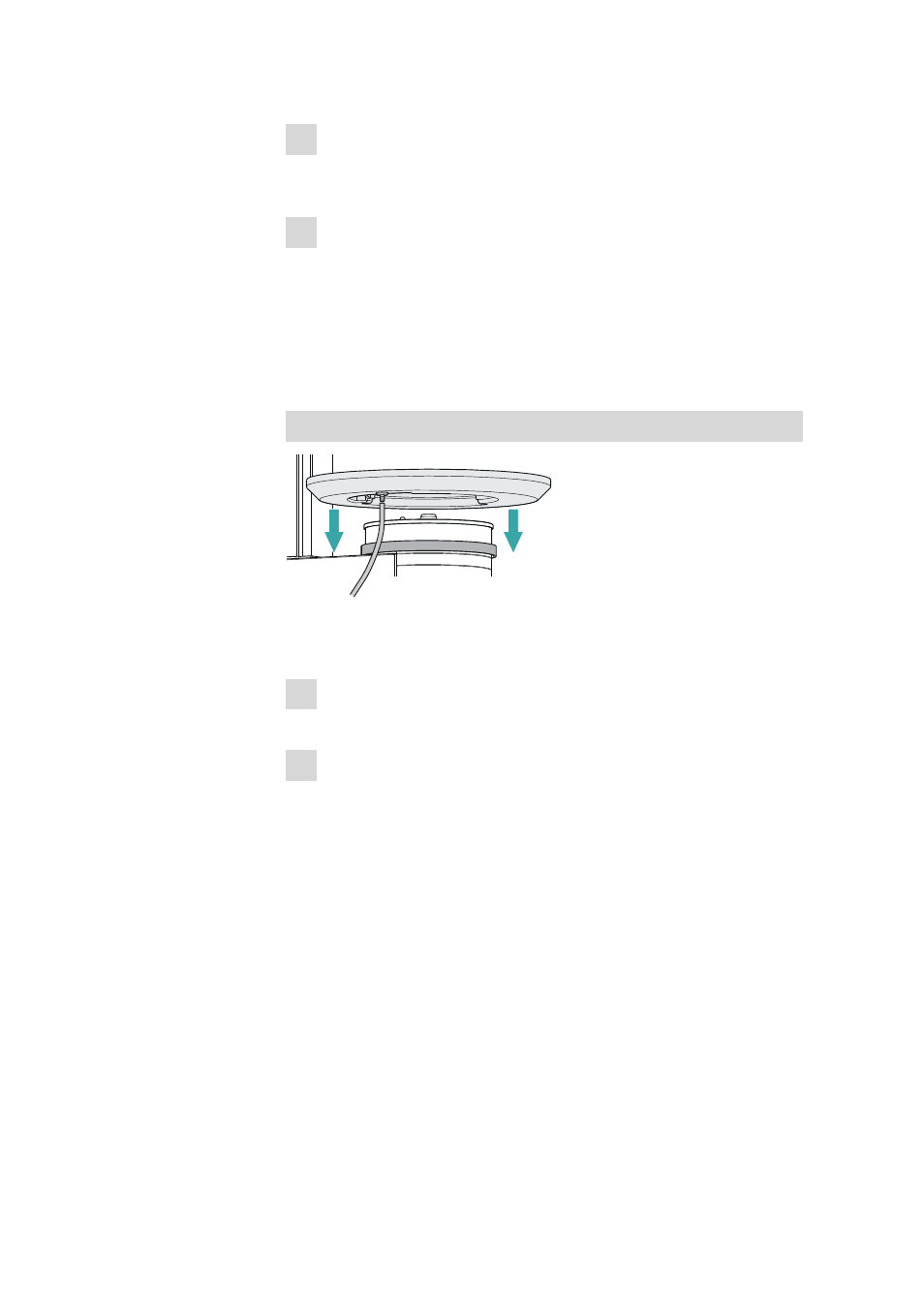

Figure 32
Installing the drip pan
Install the drip pan as follows:
1 Fasten the tubing enclosed to the drainage nipple on the drip pan
and then guide the free end of the tubing into a waste container.
2 Place the drip pan on the assembly rail of the turntable as shown in
the figure.
