Mounting Frame Arms

Instructions

Check arms.

(1)

Check propellers for cracks, then install and screw propeller cover on tightly.

(2) Ensure motors are mounted firmly and rotate freely.

(3) Mount arms with red propeller covers to M1 and M2 to indicate the nose of the S1000.

(4) Distinguish marks CW and CCW on the arms. Mount the arms with mark CCW to the M1, M3, M5, and M7

positions of the center frame. The arms marked CW should be mounted to the M2, M4, M6, and M8

positions of the center frame.

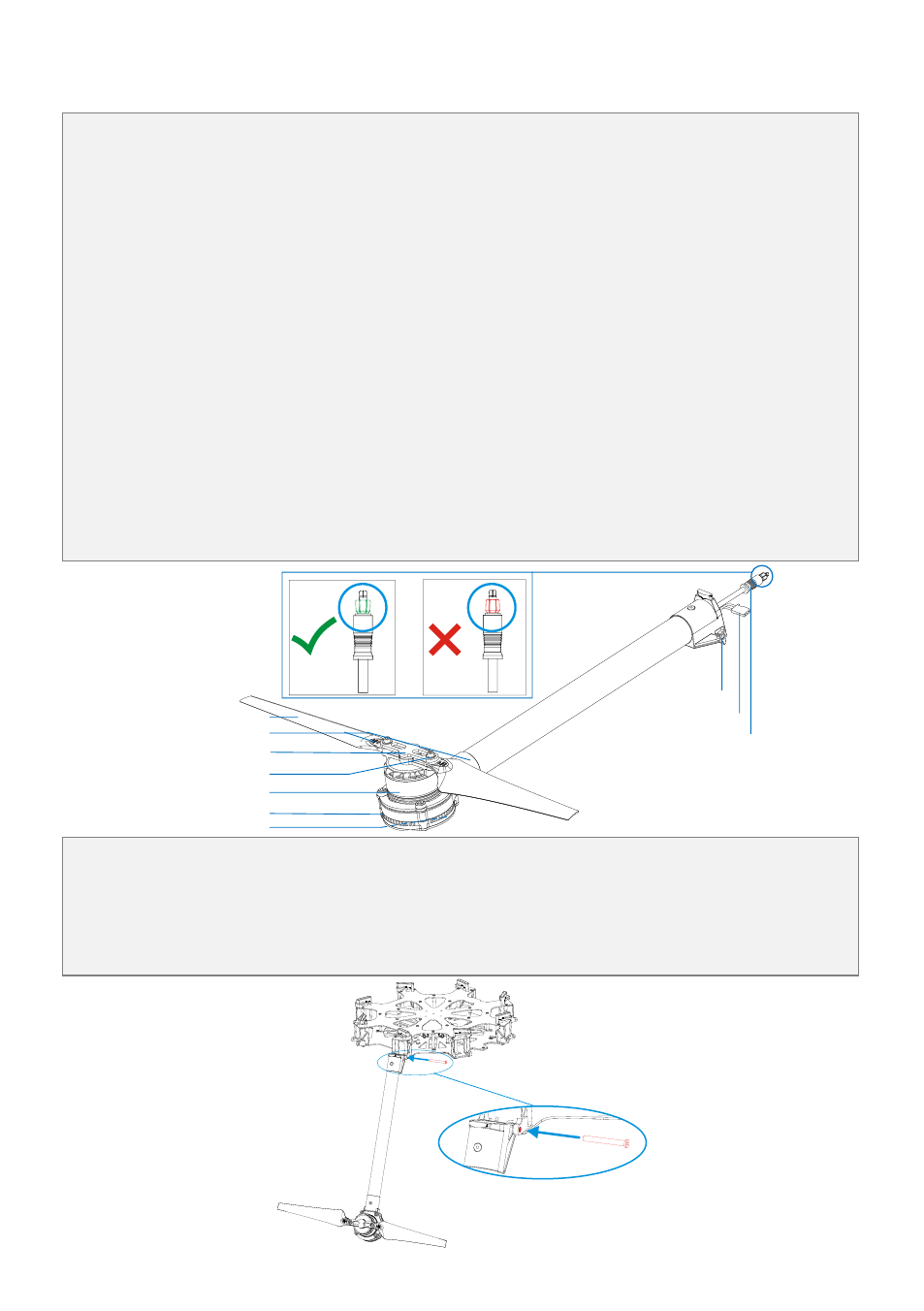

(5) Check power cable connector. Diagram A shows normal and B shows abnormal. The correct connection

method is detailed below.

i. Remove shrapnel from the damaged connector as demonstrated by diagram A using tweezers or a knife.

ii. Replace the power cable connector if the shrapnel damage is too great (e.g. connector is broken or bent)

and cannot be pulled out or plugged in.

Cover

LED*

Screw Mount

CW or CCW Mark

*LED is on after motor started.

ESC Signal Cable

Power Cable

Motor

ESC

Screw

Propeller

Insert frame arm vertically into the mounting area on the center frame.

Adjust screw mounts of frame arm and center frame.

Insert the M4x35 screw from the right of the frame arm as the thread is located on the left of the screw

mount. Tighten screw appropriately.

Over tightening may lead to connector abrasion.
