Mounting Landing Gear
Instructions
1.

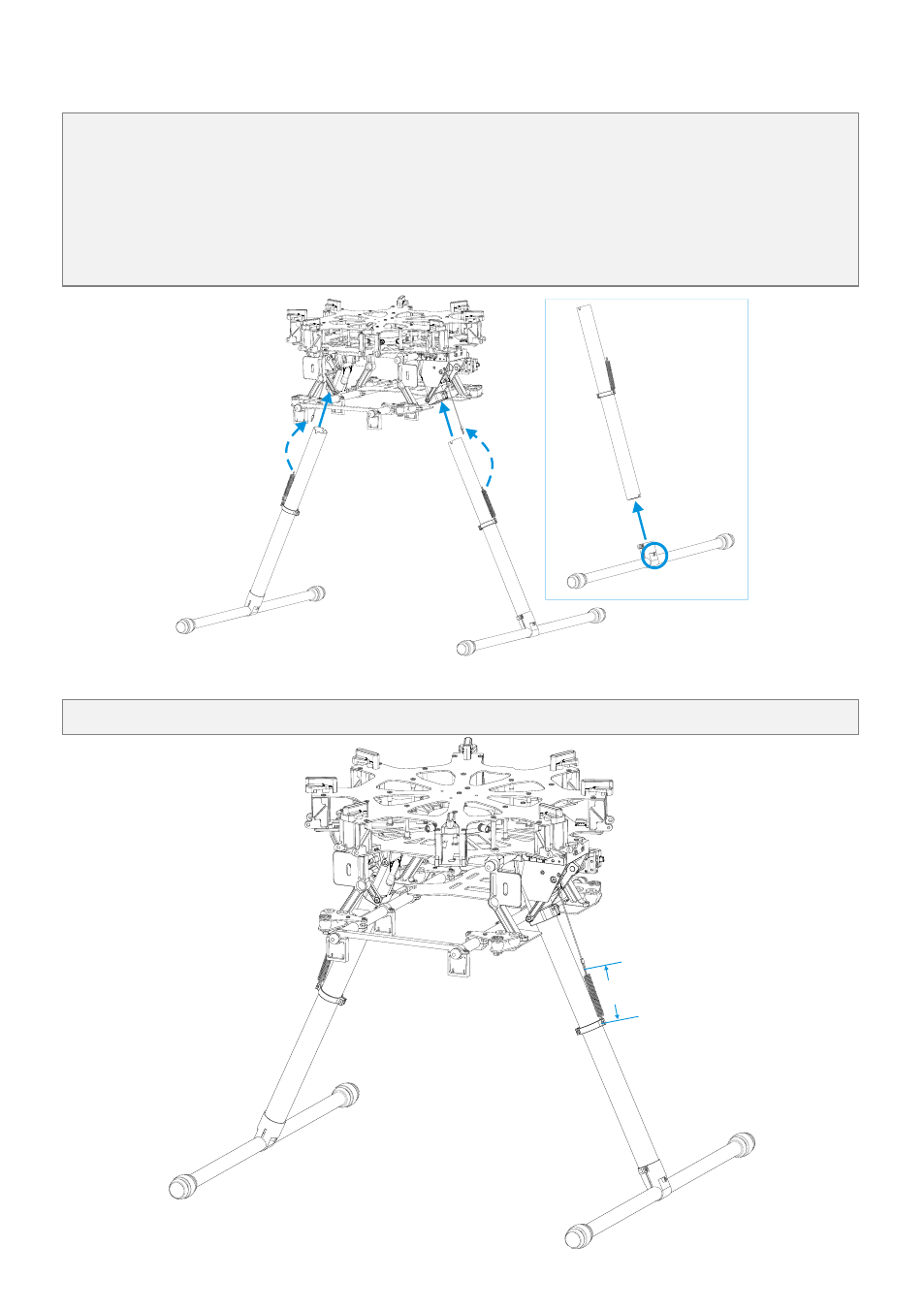

Slide landing gear leg into landing skid tube then affix the joints with M2.5x6.7 screws. Ensure silicone
rubber dampers are attached.
2.
Insert the landing gear leg into connection point on the center frame. Affix in place with M3x8 screws.
3.
Connect springs to both parts to ensure safety.
4.
Complete. Spring length is 58.5mm unstretched and 70mm stretched.
70mm
