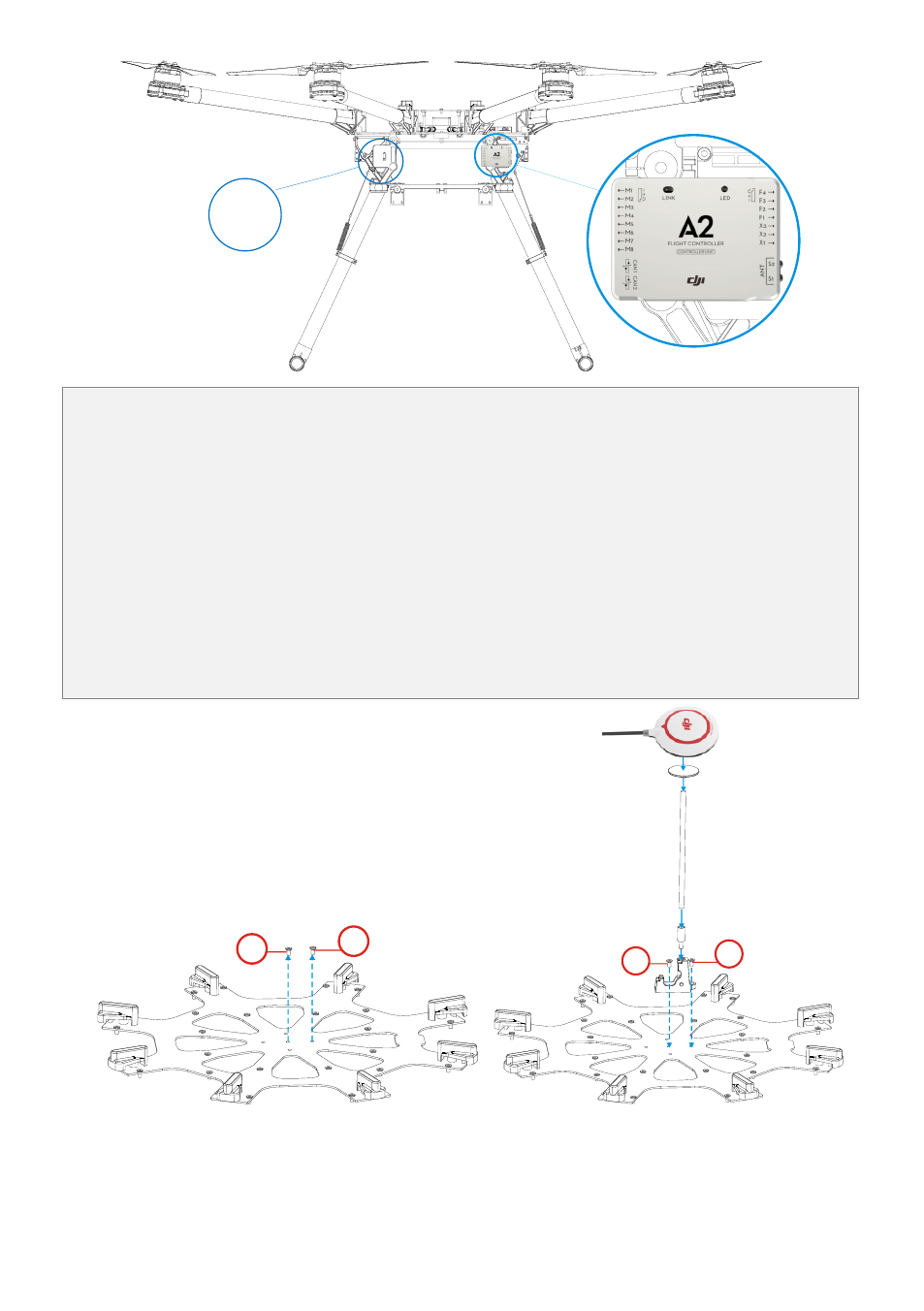

Attach the GPS collapsible mount to the center frame using M2.5x6.7 screws. Washer for GPS

collapsible mount is pre-installed on the center frame. To install GPS collapsible mount, remove the screw

from the washer then follow the below instructions:

(1)

Remove screw

① from the center frame.

(2)

Position GPS collapsible mount then return the screw to its original position and tighten.

(3)

Remove remaining screw

② from center frame.

(4)

Position GPS collapsible mount then return screw to its original position and tighten.

Mount a GPS module to the GPS mount with a bracket. Ensure the arrow points toward the nose and

avoid catching fingers in the bracket when folding for transportation.
