©2014 DJI. All Rights Reserved.

25

FAQ

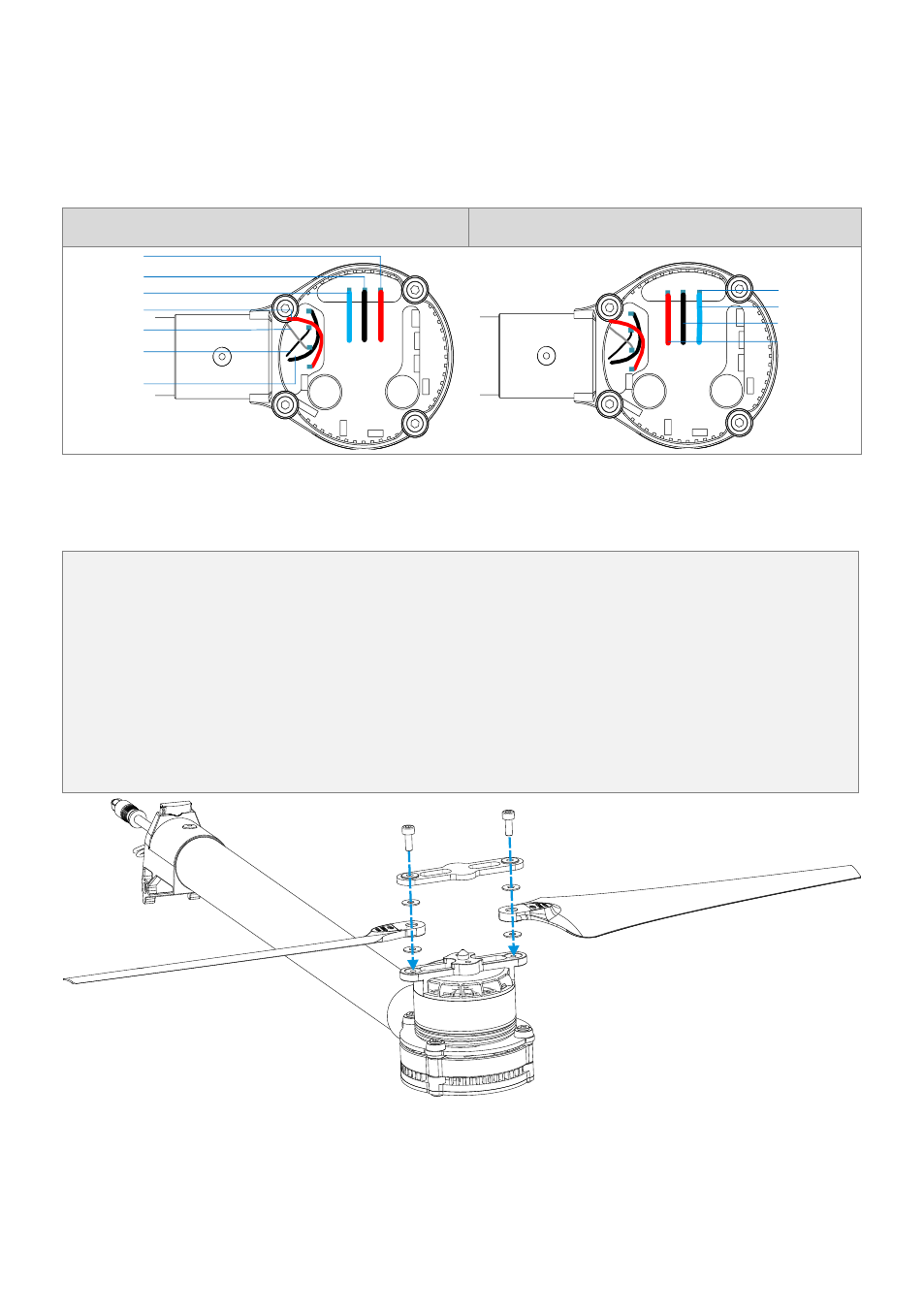

Soldering the ESC

Be sure to solder the thick wires and fine wires correctly when soldering an ESC to the frame arm.

Clockwise (CW) and counter clockwise (CCW) motors should be soldered to the ESC in order of color.

CCW arms

CW arms

G

V

G

P

G

V

G

P

Fine wire

Thick wire

Blue

Black

Red

Thick wire

Fine wire

Blue

Solder pad

Black

Red

Remounting the Propeller

Instructions

1.

Use two M3x8 screws and four washers to remount propeller.

2.

Apply thread locker to the thread of the propeller mount first.

3.

Affix screws with 4Kg.cm (0.4N.m) torque..

Tips: Refer to original screw tensions if unfamiliar with torque measurements. Applying thread locker to the

propeller mount first avoids getting thread locker into the holes of the plastic propeller.

Notes: Loose screws cannot be securely locked with thread locker.

Propeller Precautions

Torque markers on the screws and propeller covers will give you a visual cue to check whether the propellers are

loose. Check the torque markers before every flight.
