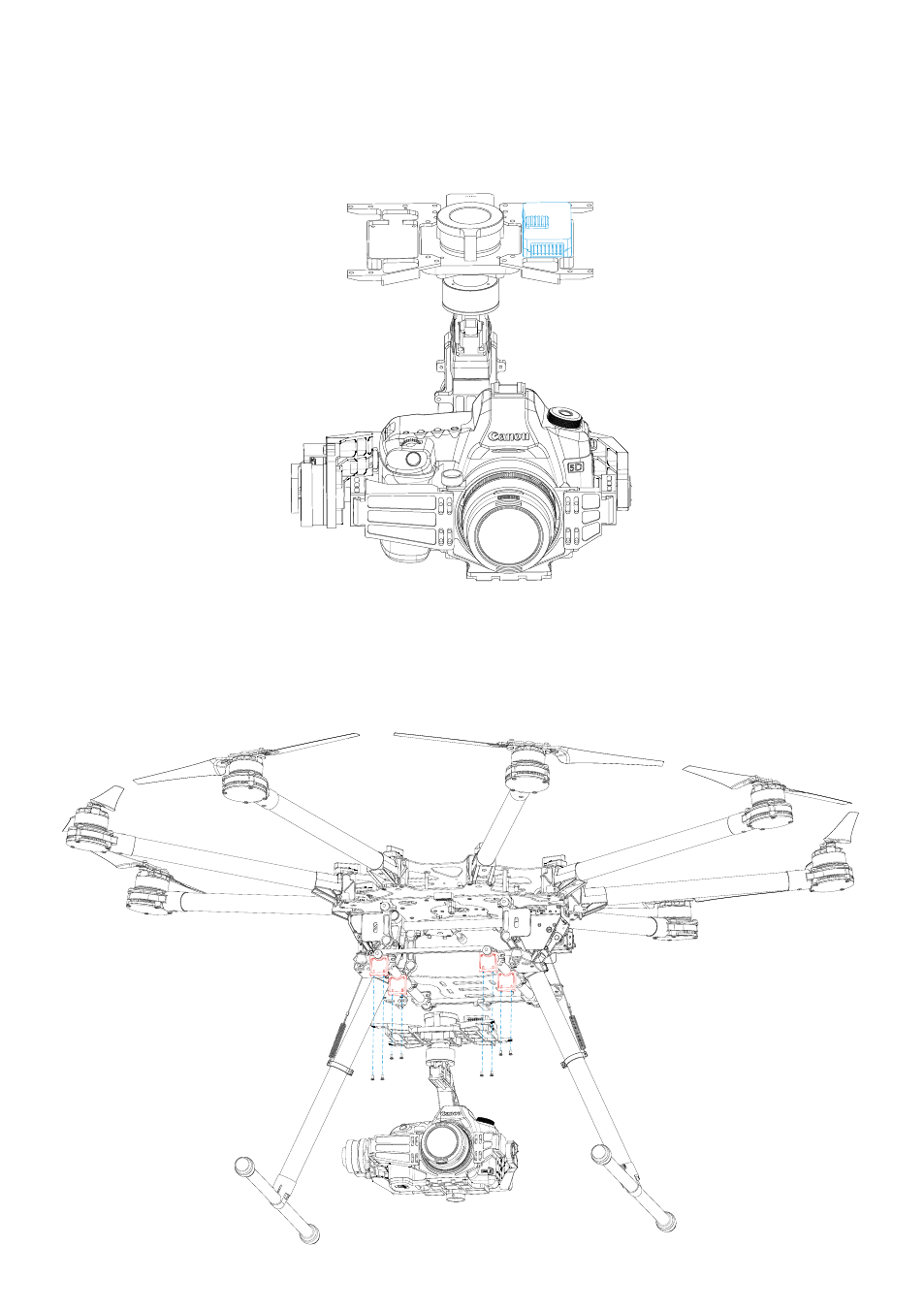

Mounting the Gimbal
Before assembling the gimbal, install GCU as shown below. Be sure to install on the side as shown below. A DJI
Z15-5D gimbal has been used as an example in the following diagrams.
The connectors on gimbal should be removed for better performance, then the gimbal can be mounted to the lower
connection points. A DJI Z15-5D gimbal has been used as an example in the following diagrams.
