(2) When powering on the system, if the transmitter switch is in the [Raise] position, the LED will flash red
quickly as a warning. Toggle the switch to the [Lower] position to continue.
(3) If there is an abnormal signal or no signal input into the [IN] port, the LED will slowly flash red. Check
receiver and connections for problems.
(4) If servo power consumption is too high, the LED will light up red. If this lasts more than 4 seconds,
landing gear will lower and the LED will flash green slowly. Re-calibration is needed before flying.
(5) A2 flight control system users can use the A2 Assistant Software to set intelligent gear on the
“Advanced” page. Refer to the “A2 flight control system user manual” for details.

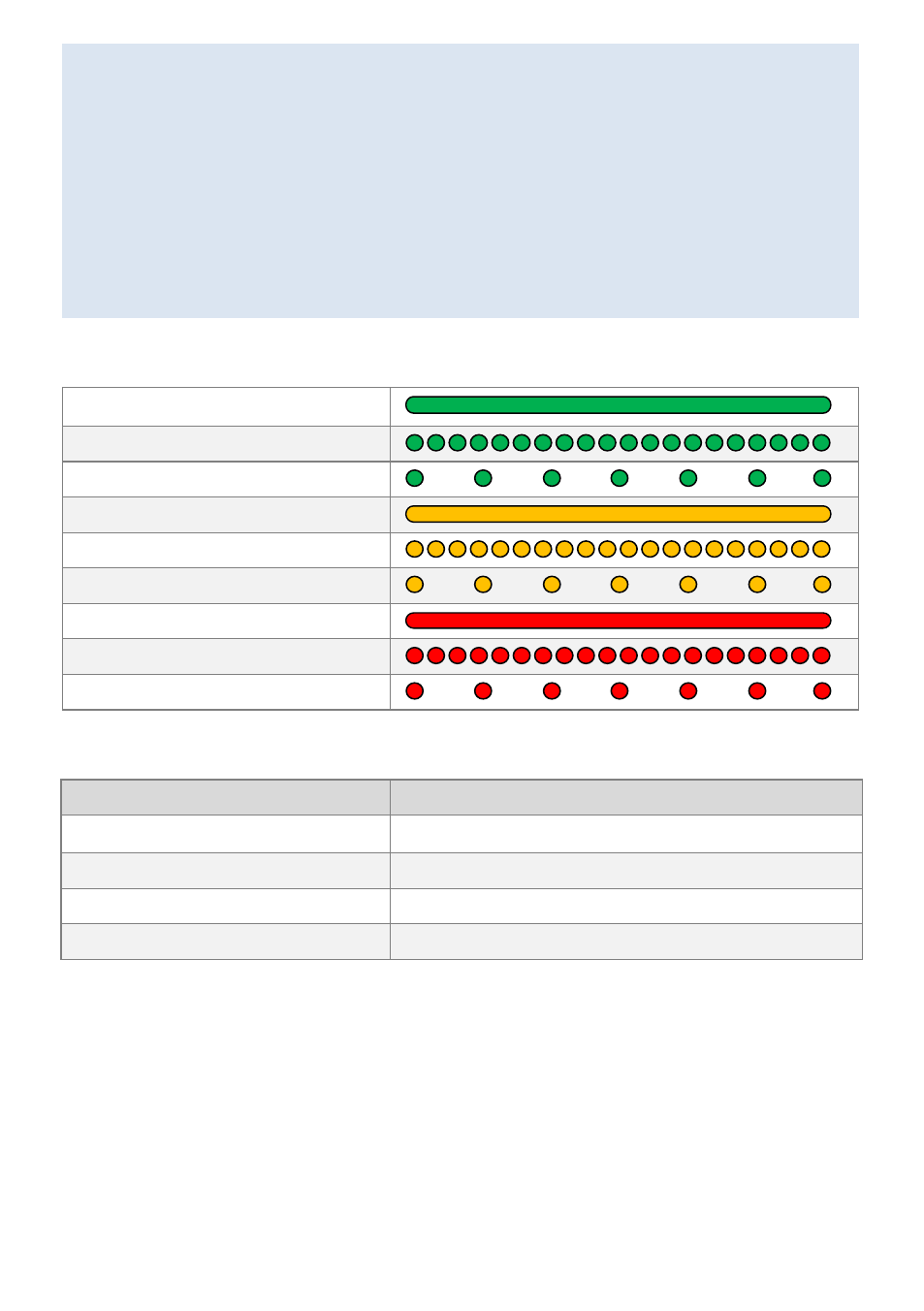

LED Control Board Indicator
System normal
Calibration required
Recalibration required
Calibration failed
Enter calibration mode
System calibrating
Motor stalled
Unsafe startup alert
Input signal abnormal
Specifications
Parameter Range Parameter Range
Working Voltage 3S~6S (LiPo) Input Signal PWM (High-Pulse Width 800us~2200us)
Working Current Max 1A@6S Output Signal PWM(Mid Position is 1520us) in 90Hz
Working Temperature -20~70 o C Output Voltage 6V
Total Weight 875g Servo Travel 150 o (Minimum120 o )
