Dimensional drawings (cont) – Bryant 588A User Manual
Page 9

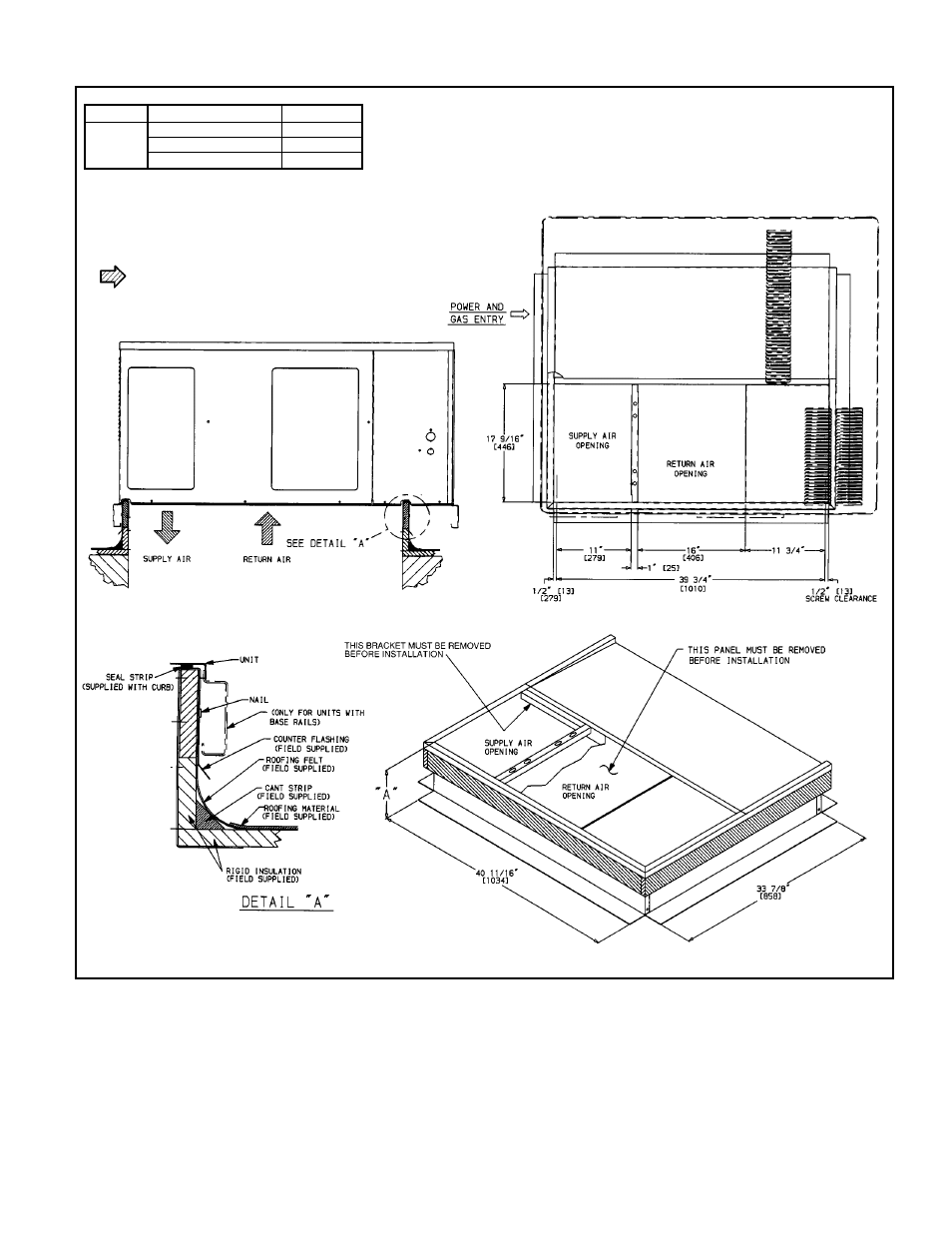

DIMENSIONAL DRAWINGS (cont)
UNIT
PART NUMBER
‘‘A’’
588A
CPRFCURB001A00
8
Љ
[203]
CPRFCURB002A00
11
Љ
[279]
CPRFCURB003A00
14
Љ
[356]
NOTES:
1. Roof curb must be set up for unit being installed.
2. Seal strip must be applied as required for unit being installed.
3. Dimensions in [
] are in millimeters.
4. Roof curb is made of 16 gage steel.
5. Attach ductwork to curb (flanges of duct rest on curb).
6. Service clearance 4 ft on each side.
7.
Direction of airflow.
8. Insulated panels: 1-in. thick fiberglass, 1 lb density.
Roof Curb, Sizes 018-060
9
