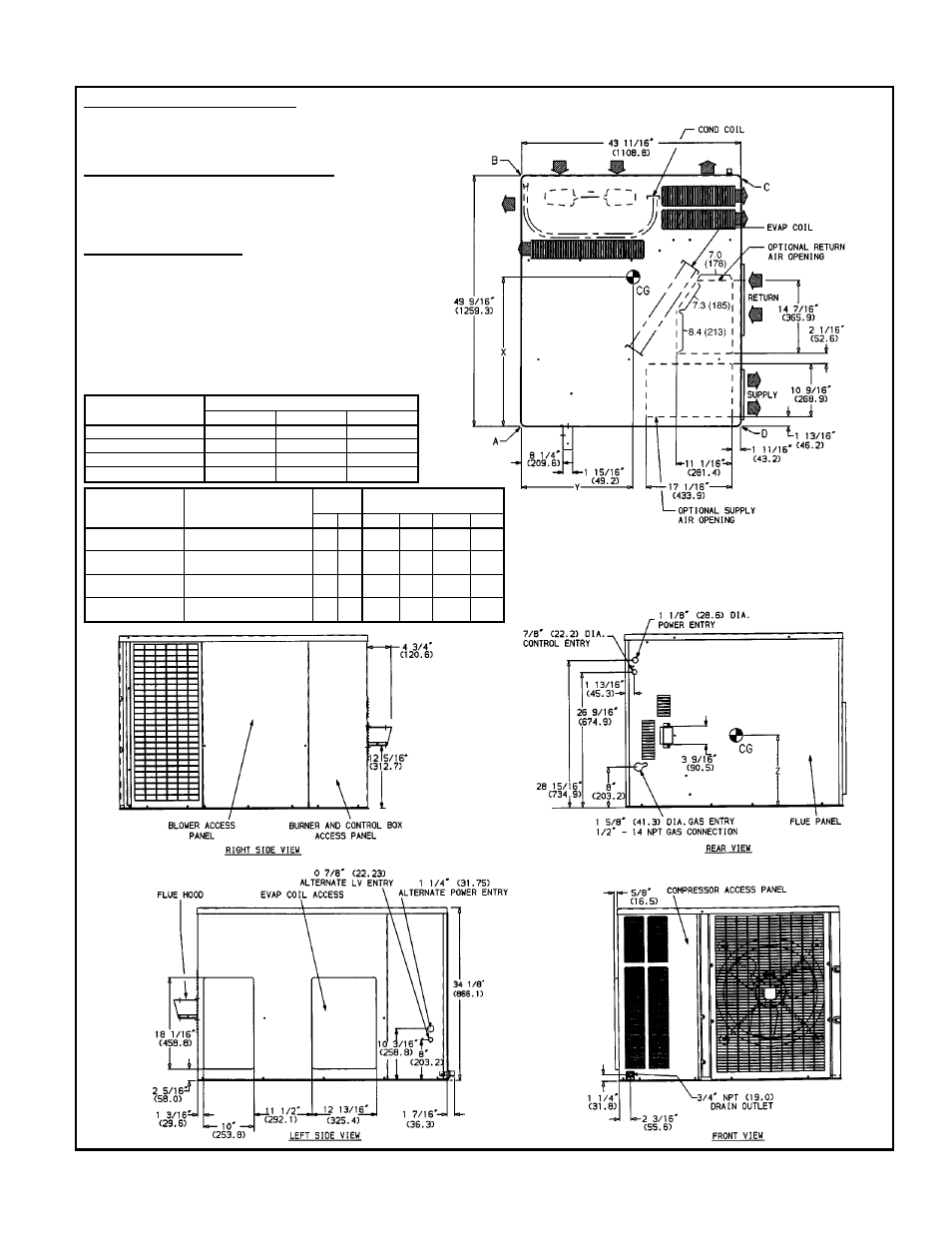

DIMENSIONAL DRAWINGS (cont)
REQ’D CLEARANCES FOR SERVICING. in. (mm)
Duct panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Unit top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Side opposite ducts . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Compressor access . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
(Except for NEC requirements)
REQ’D CLEARANCES TO COMBUSTIBLE MAT’L. in. (mm)
Maximum extension of overhangs . . . . . . . . . . . . . . . . . 48 (1219)
Unit top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Duct side of unit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 (51)
Side opposite ducts . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Bottom of unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Flue panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
NEC REQ’D CLEARANCES. in. (mm)
Between units, control box side . . . . . . . . . . . . . . . . . . 42 (1067)
Unit and ungrounded surfaces, control box side . . . . . . . . . . 36 (914)
Unit and block or concrete walls and other grounded
surfaces, control box side
. . . . . . . . . . . . . . . . . . . . . 42 (1067)
LEGEND
CG
—
Center of Gravity
COND
—
Condenser
LV
—
Low Voltage
MAT’L
—
Material
NEC
—
National Electrical Code
REQ’D
—
Required
NOTES:
1. Clearances must be maintained to prevent recirculation of air from outdoor-fan
discharge.
2. Adequate clearance around air openings into combustion chamber must be
provided.
UNIT
CENTER OF GRAVITY (in./mm)
X
Y
Z
588A048080
28.76/731
23.46/596
15.35/390
588A048100/120/140
28.42/722
23.42/595
15.35/390
588A060080
28.36/720
23.27/591
15.35/390
588A060100/120/140
27.95/710
23.23/590
15.35/390
UNIT
ELECTRICAL
CHARACTERISTICS
UNIT
WEIGHT
CORNER WEIGHT
(lb/kg)
lb
kg
A
B
C
D
588A048080
208/230-1-60, 208/230-3-60,
460-3-60
414
188
107/49
83/38
158/72
66/30
588A048100/120/140
208/230-1-60, 208/230-3-60,
460-3-60
426
193
110/50
86/39
159/72
71/32
588A060080
208/230-1-60, 208/230-3-60,
460-3-60
453
206
117/53
93/42
167/76
76/35
588A060100/120/140
208/230-1-60, 208/230-3-60,
460-3-60
465
211
120/55
96/44
167/76
82/37
Unit 588A048,060 Without Base Rail
