FIELD-INSTALLED ACCESSORY DESCRIPTION AND

USAGE (cont)

Lifting Bracket Kit — Provides attachment point for rigging
straps.

SUGGESTED USE:
• When unit needs to be lifted or moved. The kit is not required

when unit is equipped with optional base rail or downflow
application.

High- and Low-Pressure Switches — Protect the unit from
running at unsuitable pressures.

SUGGESTED USE:
• Provides additional safety features when needed.

CONTENTS

Page

Model Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
ARI Cooling Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Heating Capacities and Efficiencies . . . . . . . . . . . . . . . . . . . 4
Dimensional Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11,12
Selection Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Net Cooling Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . 14-16
Air Delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17,18
Electrical Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Operating Sequence . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Typical Field Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22-24
Typical Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Application Data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Engineers’ Specification Guide . . . . . . . . . . . . . . . . . . . . . . 26

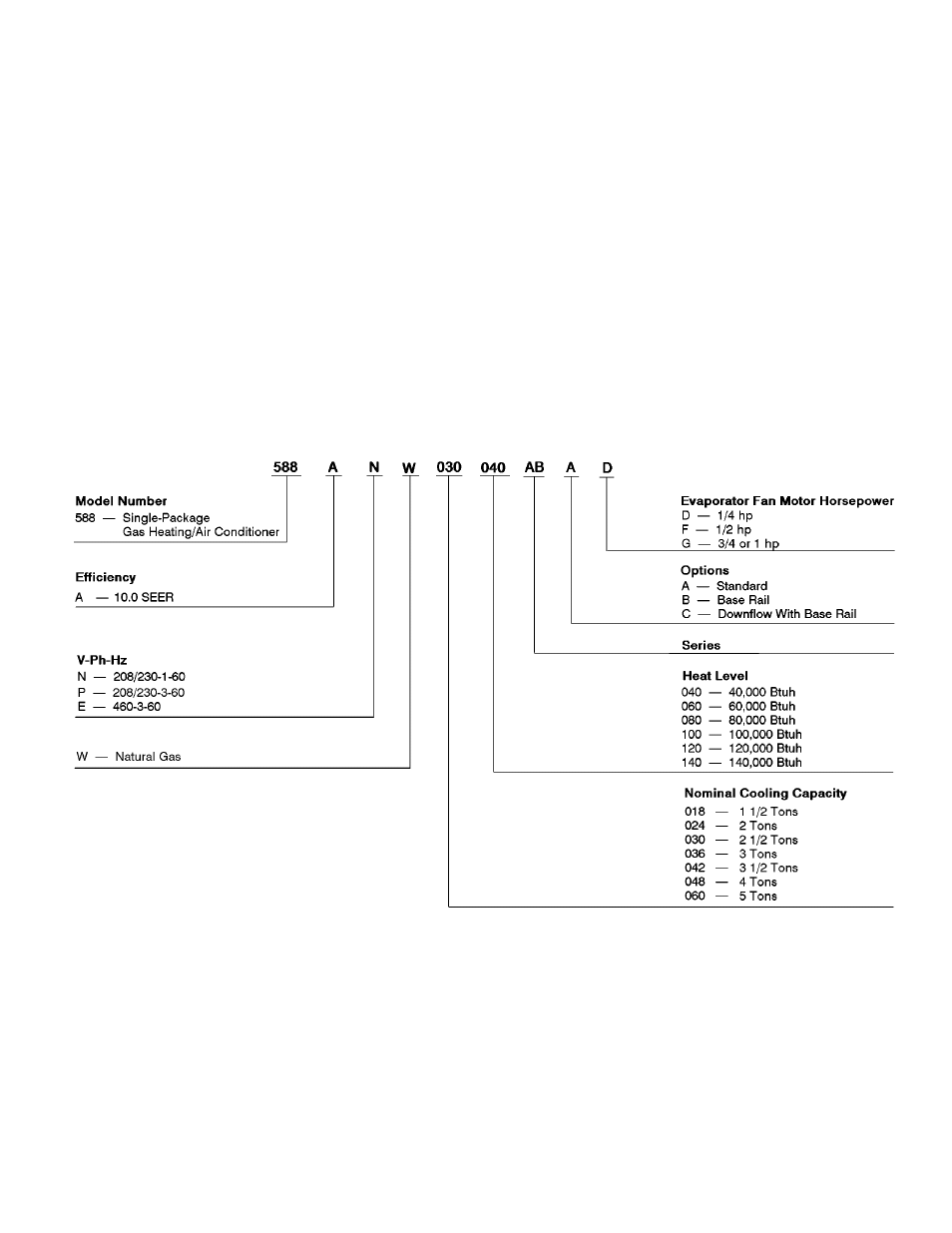

MODEL DESCRIPTION

SEER — Seasonal Energy Efficiency Ratio
