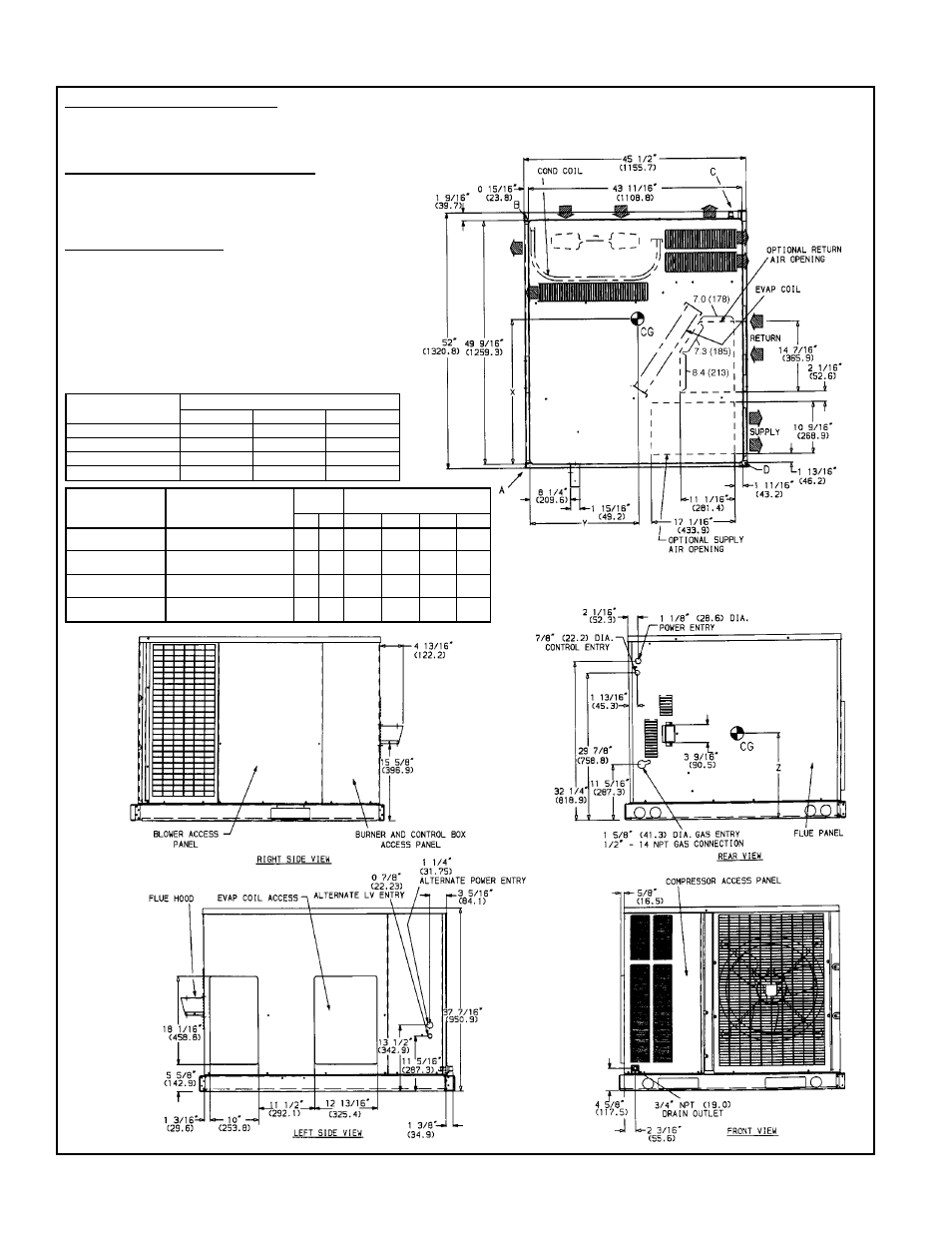

DIMENSIONAL DRAWINGS (cont)

REQ’D CLEARANCES FOR SERVICING. in. (mm)

Duct panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Unit top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Side opposite ducts . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
Compressor access . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)
(Except for NEC requirements)

REQ’D CLEARANCES TO COMBUSTIBLE MAT’L. in. (mm)

Maximum extension of overhangs . . . . . . . . . . . . . . . . . 48 (1219)
Unit top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Duct side of unit

. . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 (51)

Side opposite ducts . . . . . . . . . . . . . . . . . . . . . . . . . 14 (356)
Bottom of unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0
Flue panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36 (914)

NEC REQ’D CLEARANCES. in. (mm)

Between units, control box side . . . . . . . . . . . . . . . . . . 42 (1067)
Unit and ungrounded surfaces, control box side . . . . . . . . . . 36 (914)
Unit and block or concrete walls and other grounded
surfaces, control box side

. . . . . . . . . . . . . . . . . . . . . 42 (1067)

LEGEND

CG

Center of Gravity

COND

Condenser

LV

Low Voltage

MAT’L

Material

NEC

National Electrical Code

REQ’D

Required

NOTES:
1. Clearances must be maintained to prevent recirculation of air from outdoor-fan

discharge.

2. Adequate clearance around air openings into combustion chamber must be

provided.

UNIT

CENTER OF GRAVITY (in./mm)

X

Y

Z

588A048080

28.54/724.9

20.00/508

17.66/448.6

588A048100/120/140

28.22/716.8

20.05/509.3

17.66/448.6

588A060080

28.18/715.6

20.19/512.8

17.66/448.6

588A060100/120/140

27.79/705.9

20.23/513.8

17.66/448.6

UNIT

ELECTRICAL

CHARACTERISTICS

UNIT

WEIGHT

CORNER WEIGHT

(lb/kg)

lb

kg

A

B

C

D

588A048080

208/230-1-60, 208/230-3-60,

460-3-60

438

199

113/51

89/40

164/75

72/33

588A048100/120/140

208/230-1-60, 208/230-3-60,

460-3-60

450

205

116/53

92/42

165/75

77/35

588A060080

208/230-1-60, 208/230-3-60,

460-3-60

477

217

123/56

99/45

173/79

82/37

588A060100/120/140

208/230-1-60, 208/230-3-60,

460-3-60

489

222

126/57

102/46

173/79

88/40

Unit 588A048,060 With Optional Base Rail

8
