PMT

When assembling, consider the following:

• Will the custom pod be painted? If so, paint the mount

BEFORE attaching cradle assembly.

• The cradle mounting plates can be painted to match the

custom mount.

• Painting the PMT cradle is not recommended.

PMT Cradle

Front Mounting Plate

Back Mounting Plate

(Threaded Screw Holes)

Mounting Screws

Custom Gauge Pod

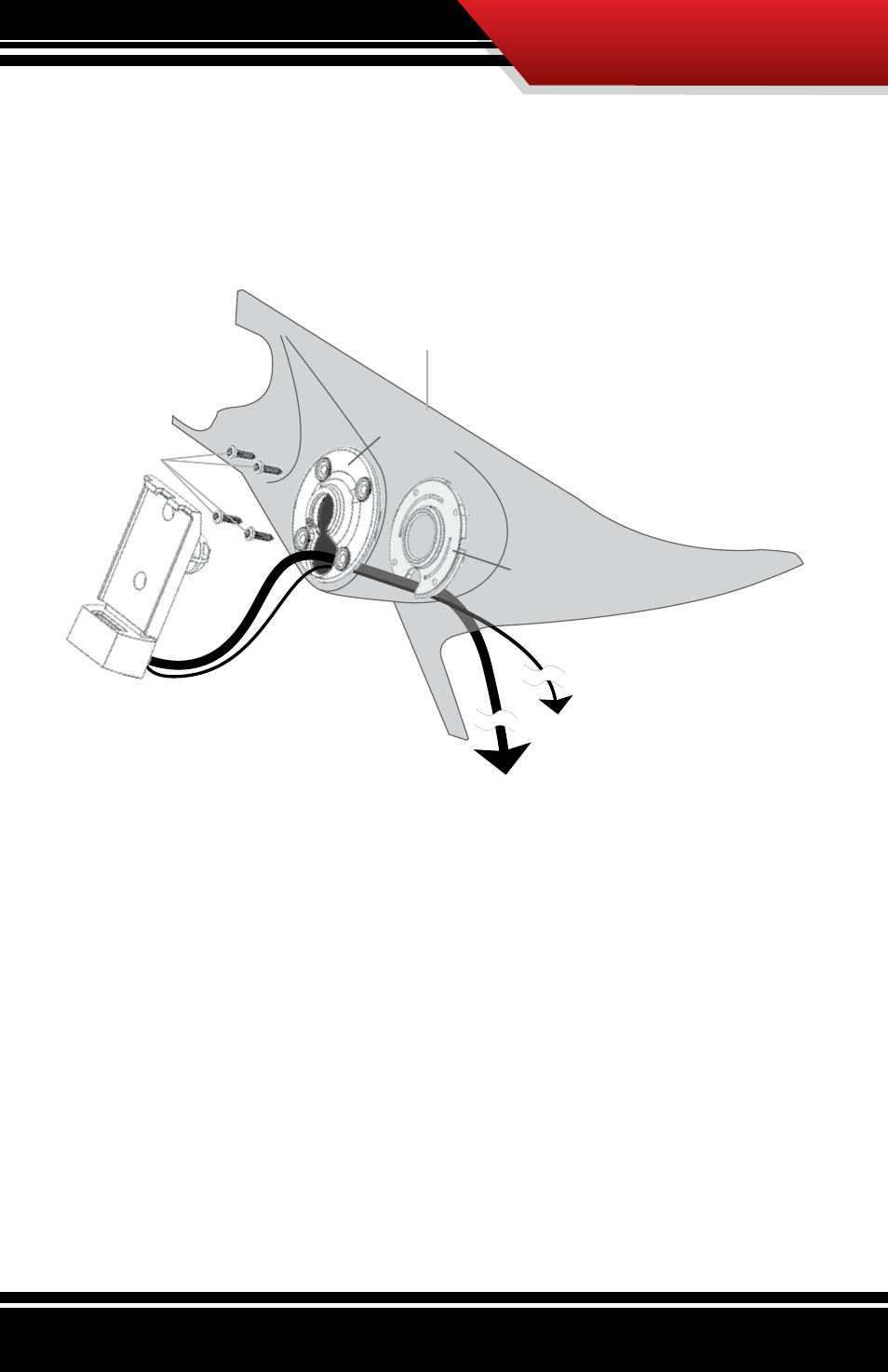

PMT Gauge Pod Assembly Diagram

(To OBDII Adapter Plug)

(To Vehicle Fuse Box)

Cradle Cable

Ignition Fuse Wire
