Parts List
This section contains an illustrated list of all authorized replacement parts for
the 4391A RF power Analyst. Parts are grouped into major assemblies and sub-
assemblies.

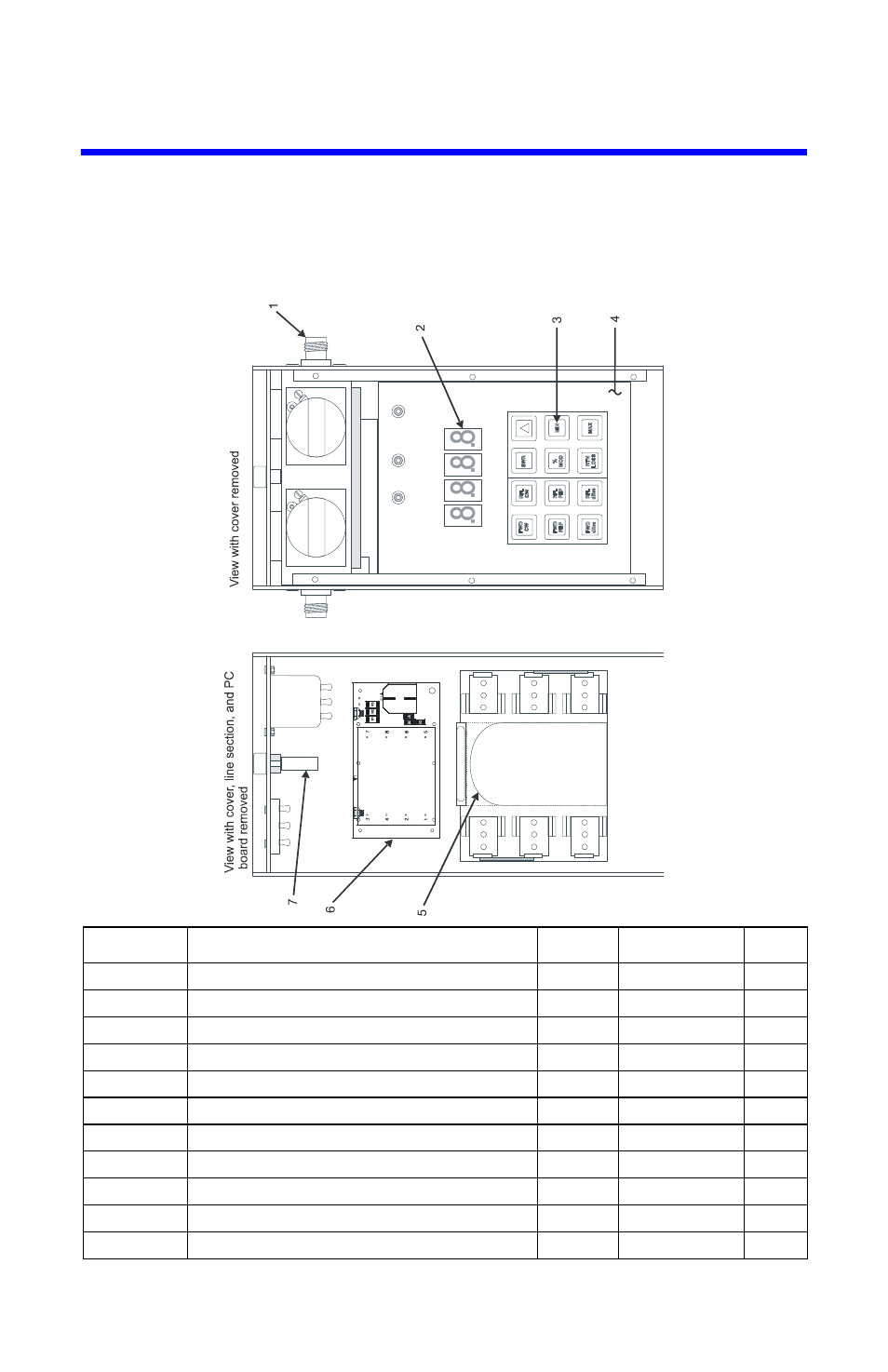

Figure 24 Parts Drawing
Item No. Description Part No. Qty
Figure 24
1 Connector, QC F-N 4240-062 2
2 LED display, (DS1 - DS4) 5-1337 4
3 Keyboard legend 4386-012 1
4 PC board, Main, assembly 4391C007 1
5 Velcro strap 5-1958 1
6 PC board assy (includes rectifier circuit) 4391B041 1
7 Fuse, Slo-Blo, IEC 1/8 amp 5A2257-7 1
N/S Battery (rechargeable) “C” cell 5A1230 6
N/S Dust plug 3610-031 2
N/S Cable, power cord, 115V / 230V 4421-055 1
N/S = not shown in figure
