Additional sockets
ON/OFF
Mains switch
IR IN
For connection of a BeoLink IR receiver
enabling remote control operation of
BeoSystem 1
MAINS
Connection to the mains
RGB
For connection of a plasma screen, LCD
screen or a large-screen projector.
RS232
For connection of a plasma screen supported
by Bang & Olufsen or a large-screen
projector.
0/12V CONTROL
For connection of a home automation system
with a projector.
FAN
For connection of an external ventilator.
S-VHS / VIDEO / R / L / PHONES
The Camcorder and headphones sockets. For
more information, refer to the chapter ‘Close-
up socket panel’ on page 48.

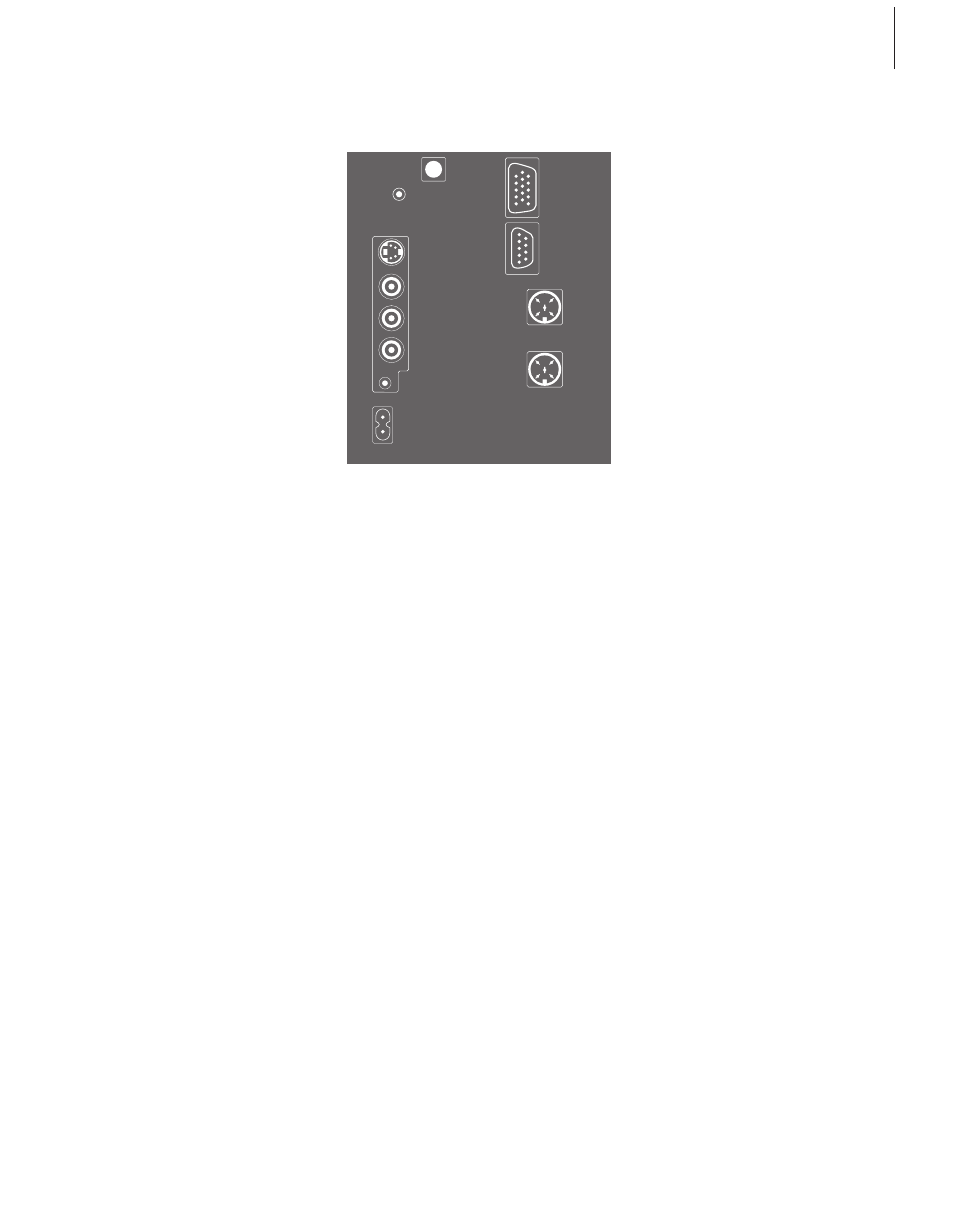

IR-IN
FAN
0/12 V CONTROL
MAINS
RGB
ON/OFF
RS232
PHONES
L
R
VIDEO
S-VHS
