Section 5: MSP20 Connections
Physical characteristics
Autocue cue light
MSP20
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd

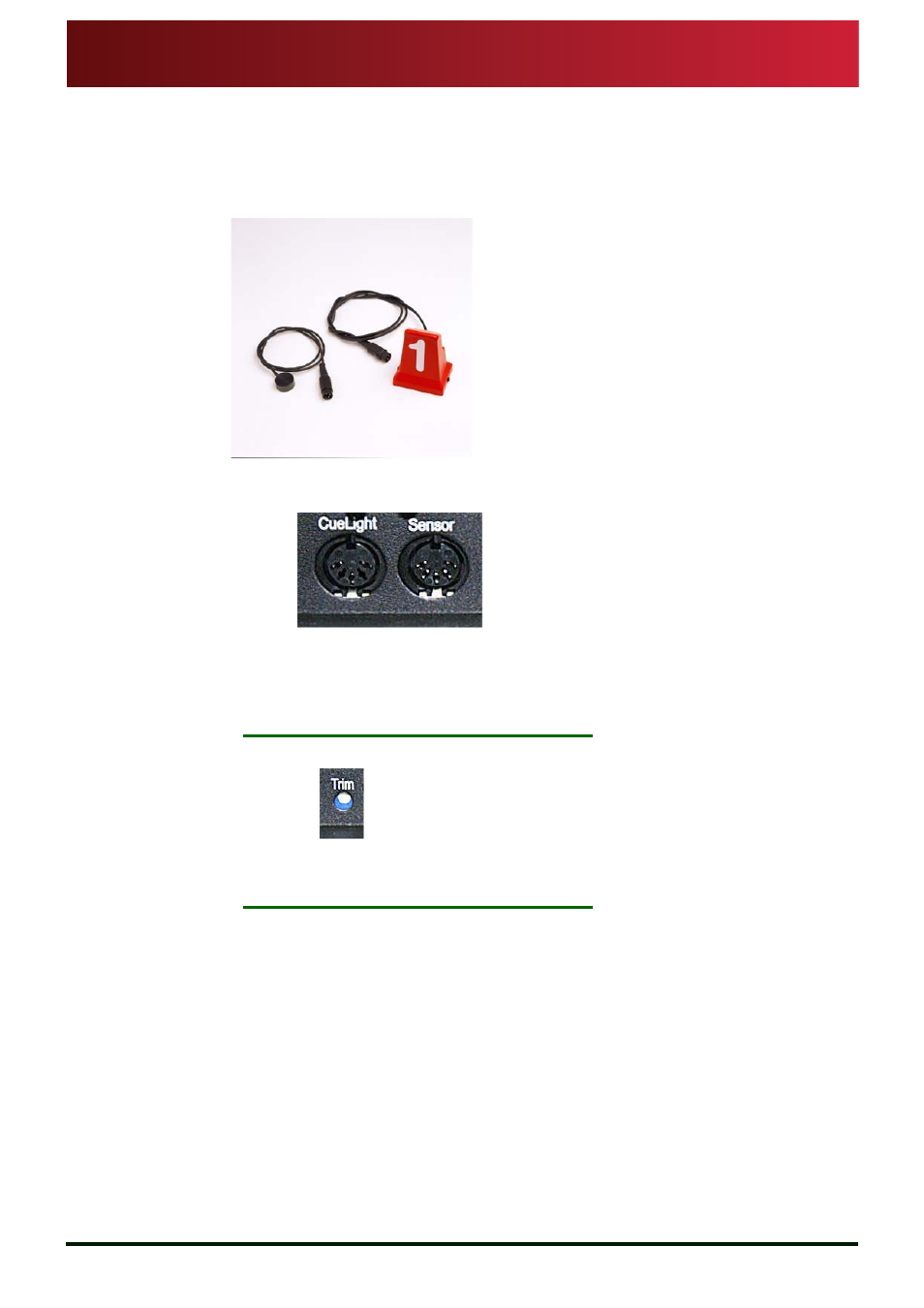

5.1.2: Autocue cue light
When an on-camera unit is used, the hood can sometimes obscure the cue light on
the camera. To overcome this, Autocue has developed an extension light that is
attached to the hood.
1. Attach the sensor to the light on the camera.
2. Plug the sensor into the Sensor socket on the prompter display unit.
3. Attach the cue light to the top of the hood.
4. Insert the plug from the light in to the CueLight socket.
5. The Autocue cue will illuminate whenever your camera is “live”.
N OTE :
The cue light sensitivity can be adjusted using the preset
marked Trim on the control panel.
