Section 4: Assembly Procedures
Mount prompter display unit and hood
Attach MSP20
MSP20
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd

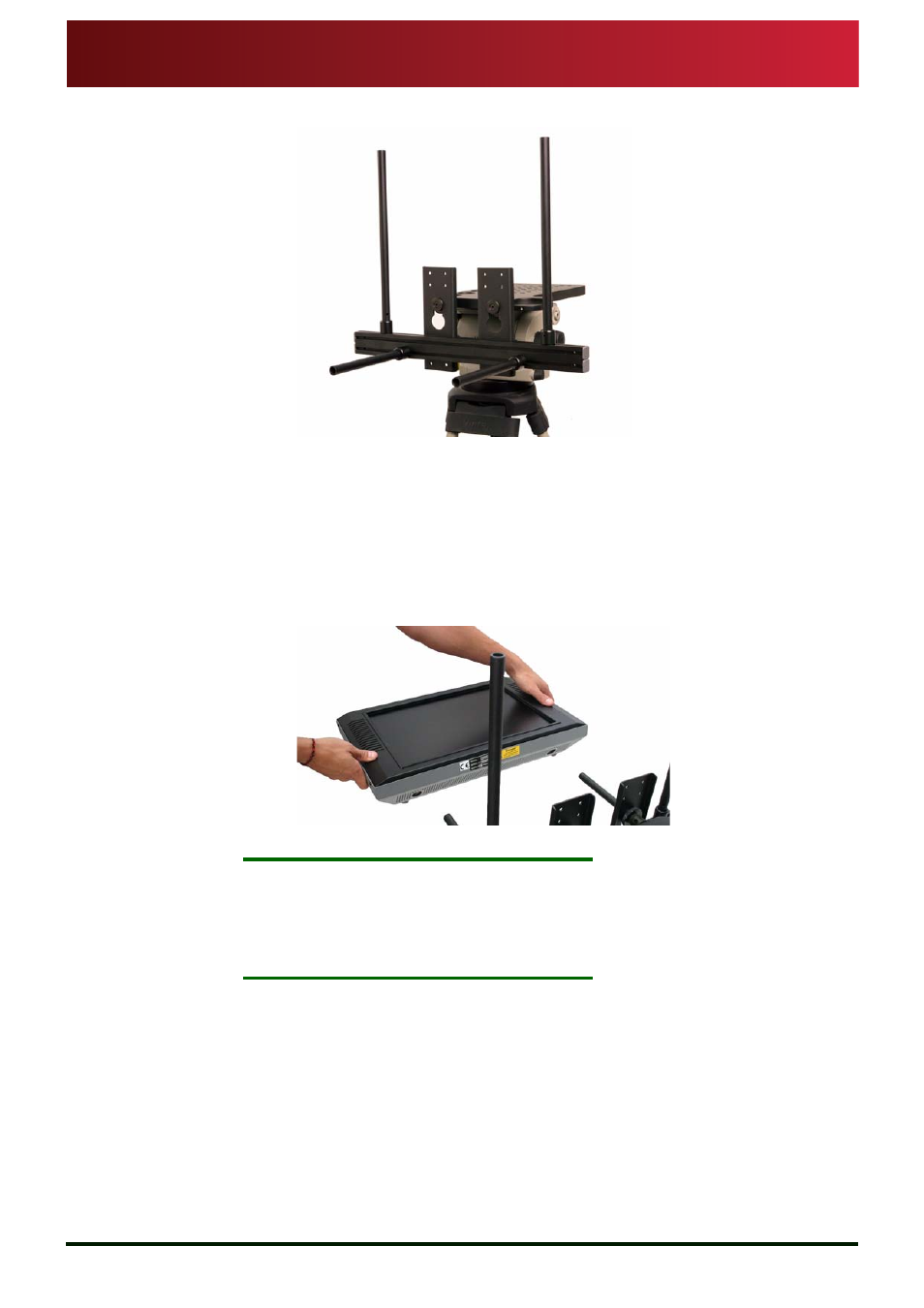

3. Tighten the locking rings to secure the mounting bracket in postion.
4.5: Mount prompter display unit and hood
4.5.1: Attach MSP20
1. Slide the horizontal rods of the Mounting Bracket into the mounting holes
in the MSP20 chassis.
N OTE : The prompter display unit shown is for illustration only. The
position of the horizontal rods should have been set for the
size of monitor you are using when the Mounting Bracket was
assembled.
