Section 4: Assembly Procedures
Autocue Wide Angle Bracket
Bracket assembly
MSP20
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd
N OTE : The illustrations below depict various sized brackets.

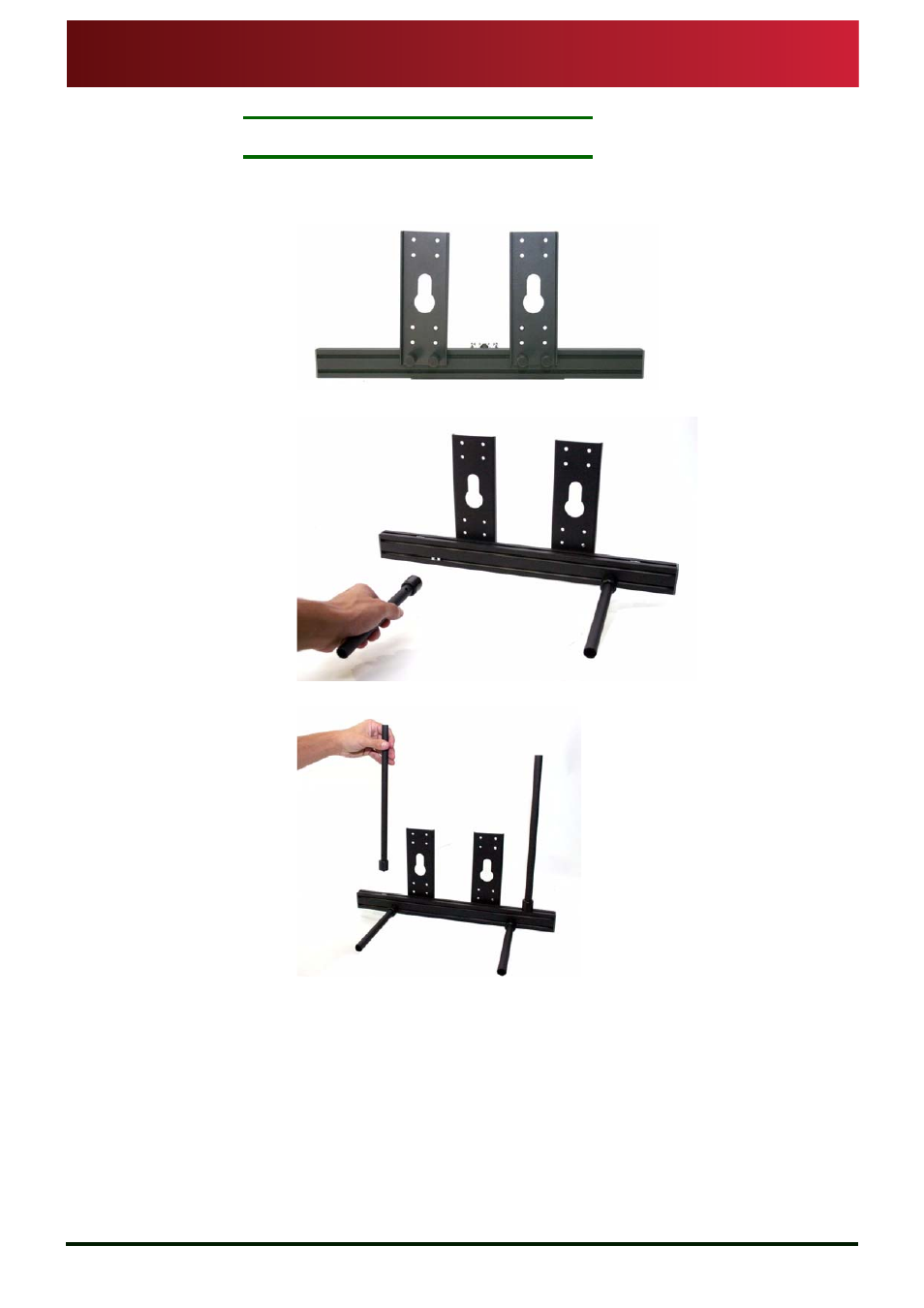

1. Unscrew the keyhole plates in the bracket and rotate them to the upright
position.
2. Screw in the horizontal prompter display unit mounting bars.
3. Screw in the vertical hood mounting bars.
