Section 4: Assembly Procedures
Autocue Wide Angle Bracket
Adjust spacing and location of the mounting bars
MSP20
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd

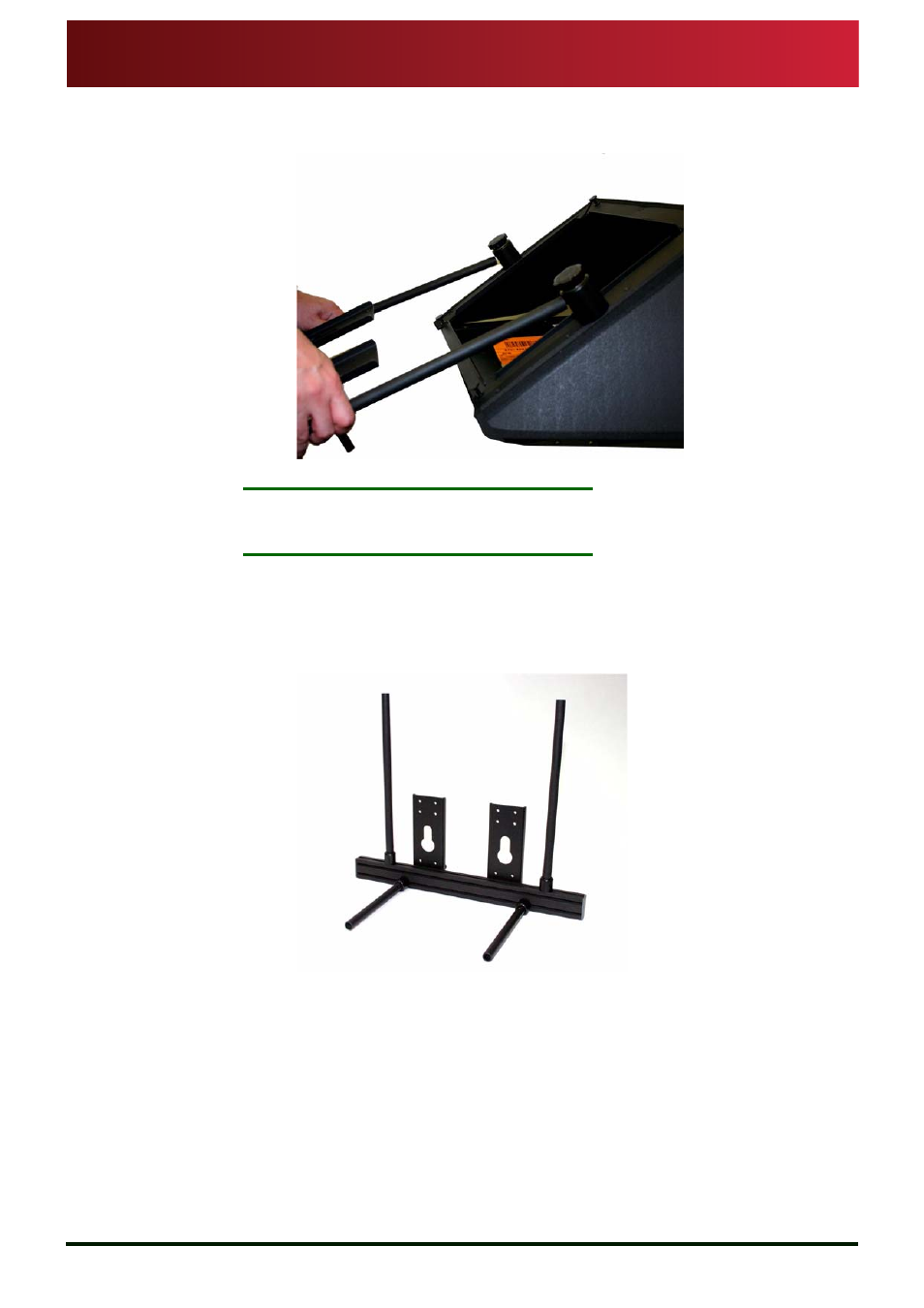

7. Align the vertical mounting bars with the screw clamps on the rear of the
hood and slide the bars in.
N OTE : It is recommended that you mount the hood so that it is
centred along the mounting bracket.
8. Tighten the vertical mounting bars to secure them in position and remove
them from the screw clamps.
9. The mounting bracket is now ready to be attached to the plate you
ordered.
