Section 5: MSP20 Connections
Physical characteristics
Video and power inputs
MSP20
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd
The actions of the on-screen menus are described in Section 6: Prompter
Operation.

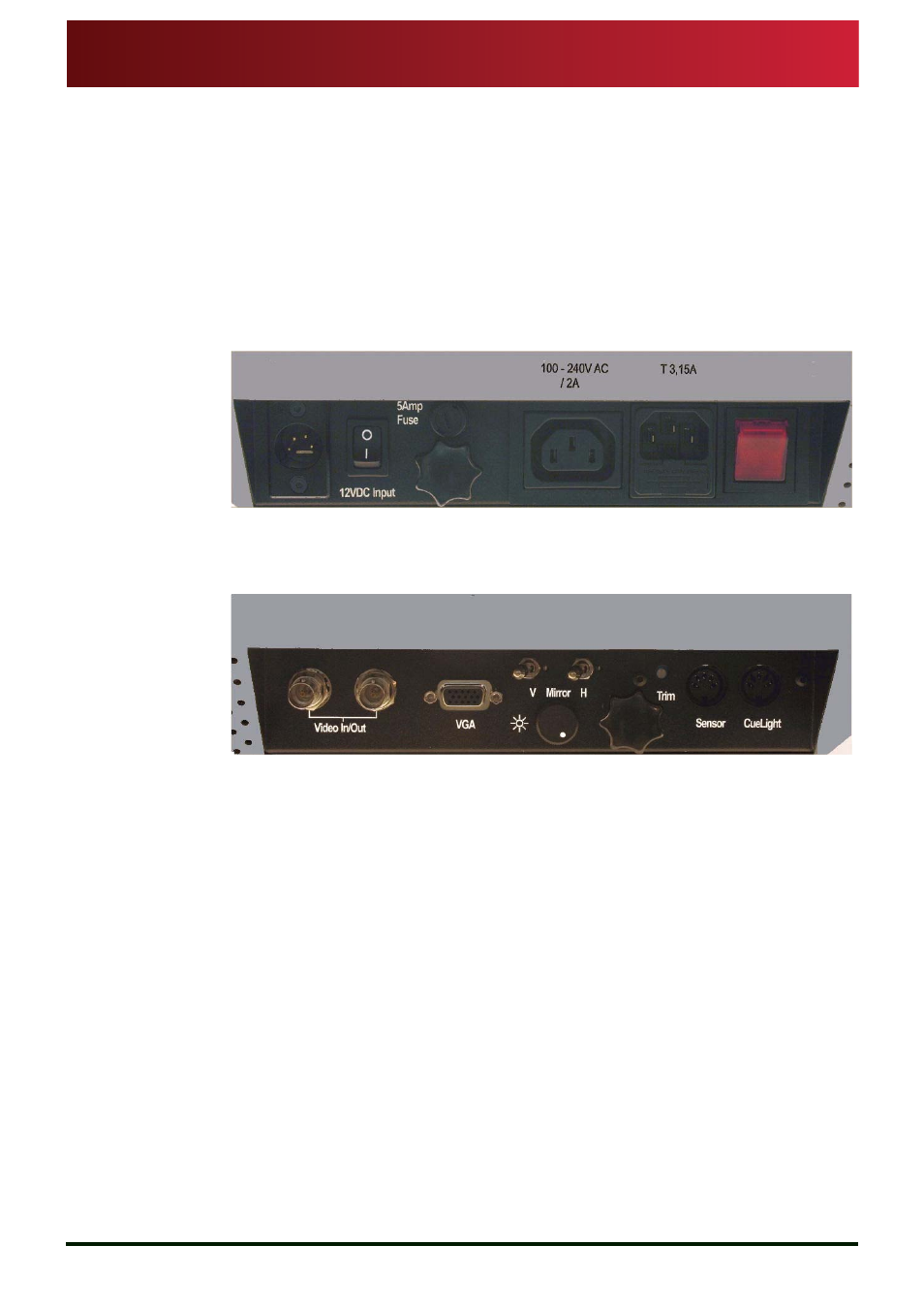

5.1.1: Video and power inputs
Connect video cables and power leads to the sockets on the side of the .prompter
display unit.
Power. Use either a standard mains electrical supply cable to the Mains Input
socket or use the supplied 12 V DC XLR connector to the DC Input socket.
Video.
You can connect a video signal via the Video In BNC or use the
prompter display unit directly from your computer using a standard VGA cable.
