Section 4: Assembly Procedures
Mount prompter display unit and hood
Attach Wide Angle Hood
MSP20
Assembly and Installation
Guide
Issue
#
: 081
016
©
2003
-200
8
Au
to
cu
e Grou
p Ltd

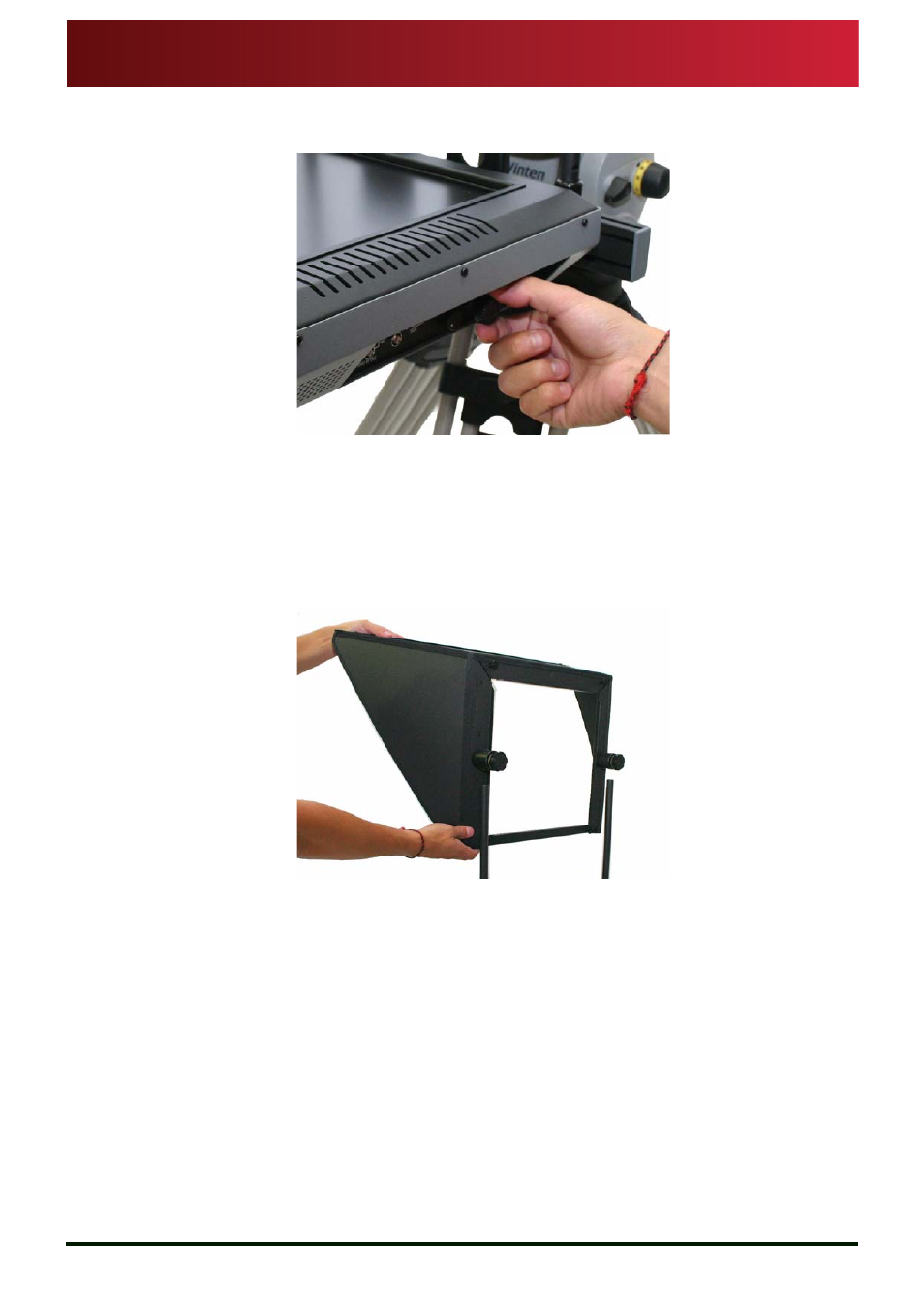

2. Secure in the required position by tightening the locking clamp on the
side of the chassis.
3. Repeat for the other clamp.
4. Ensure that the whole assembly is stable and balanced.
4.5.2: Attach Wide Angle Hood
1. Slide the locking clamps of the Wide Angle Hood over the vertical bars of
the Mounting Bracket.
2. Move the hood down the vertical bars to position the unit so that the lens
of your camera will be centred in the glass plate of the hood.
