SYS system parameters

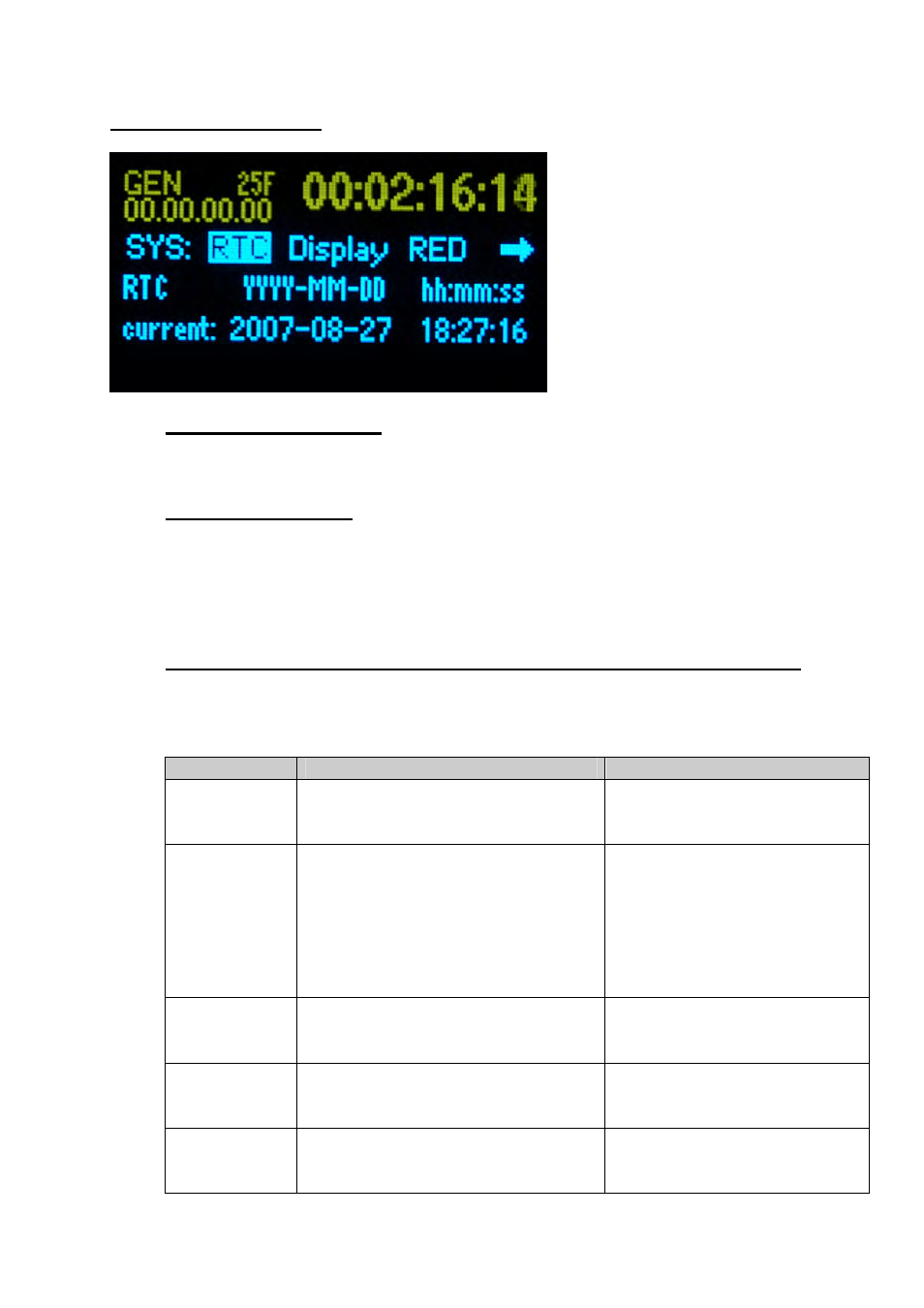

RTC. The real time clock
Time can be set from the TOD generator or edited
Date can be set from the TOD generator or edited
DISPLAY Parameters
The brightness of the display can be set
Auto off function can be turned on or off.
Note: use a display brightness that is required, not brighter. This
conserves power and prolongs display life.
RED Logging filter and TC spot check can be set (only in logging mode)
INPUT TC FILTER See table
TC SPOT CHECK 5, 7, 10 sec after REC begin
Setting Record In Record Out
Record-Run Consecutive Frs. 2 to 22 in the
same second. Same value timecode in 2
consecutive frames
( timecode stopped)
Incremental
Record Run Consecutive Frs. 2 to 22 in the
same second.
In addition the following
critera must be fulfilled
• Cassette number has changed
• Timecode value is larger than
the last Rec.Run. time out value
Same value timecode in 2
consecutive frames
( timecode stopped)
LANC-Status
( “rec” on off
status) LANC-Status changes from any
status to „rec“ LANC-Status changes form
„rec status to any status
Input High
“Rec” on Off
signal LowHigh Transition HighLow Transition
Input Low
Rec” on Off
signal HighLow Transition LowHigh Transition
