Rockwell Automation Publication PFLEX-IN030A-EN-P - July 2014 3
PowerFlex 700/700S Frame 5 Drives 600/690V Brake Bus Bar Insulator Installation

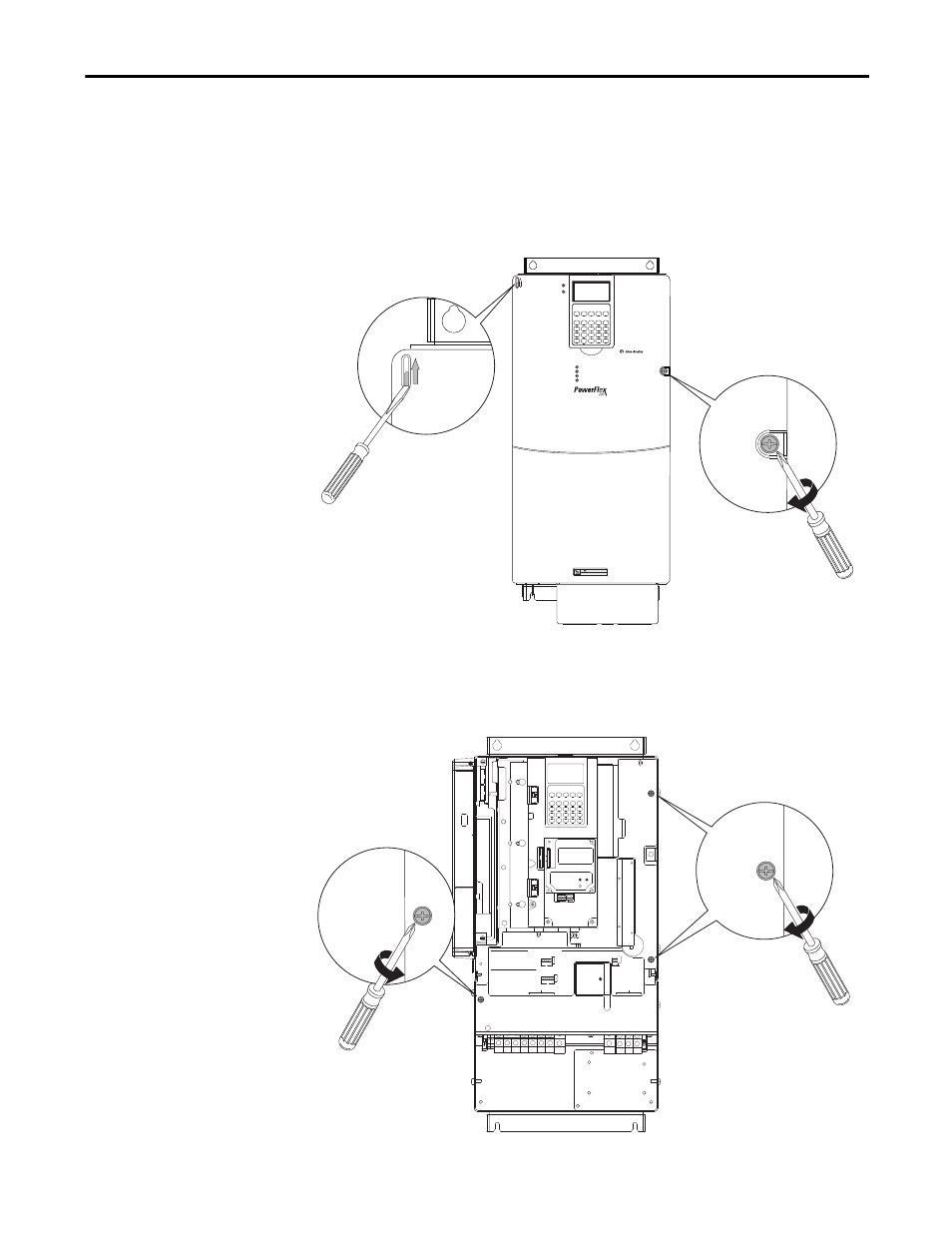

Remove the Protective Covers
1. Locate the slot in the upper left corner of the drive cover and slide up the
locking tab.
2. Loosen the hexalobular screw on the right side of the drive and remove the
cover.
3. Remove the three hexalobular screws that secure the clear-plastic
protective cover to the chassis and remove the cover. Use care when
removing the cover so you do not damage the MOV wires (if present).
HOT surfaces can cause severe burns CAUTION
WIRE RANGE: 14-1/0 AWG (2.5-35 MM 2 ) TORQUE: 32 IN-LB (3.6 N-M)
STRIP LENGTH: 0.67 IN (17 MM)
USE 75 C CU WIRE ONLY
POWER TERMINAL RATINGS
WIRE RANGE: 6-1/0 AWG (16-35 MM 2 )
TORQUE: 44 IN-LB (5 N-M)
STRIP LENGTH: 0.83 IN (21 MM)
GROUND TERMINAL RATINGS (PE)
300 VDC EXT PWR SPLY TERM (PS+, PS-)
WIRE RANGE: 22-10 AWG (0.5-4 MM 2 ) TORQUE: 5.3 IN-LB (0.6 N-M)
STRIP LENGTH: 0.35 IN (9 MM)
17
21 INPUT AC OUTPUT
9
