PowerFlex 700H and 700S AC Drives Frame 11 Main Fan Capacitor Replacement Kit
Step: 3 Remove the
Existing Fan Capacitor
1. Disconnect the fan signal connector from the front of the drive chassis.
2. If replacing the fan capacitor on the V phase, loosen the screws that secure
the wires to both ends of the fan fuse holder and remove the wires.
3. Cut the cable ties that secure the fan signal and fan fuse wires to the fan
capacitor.

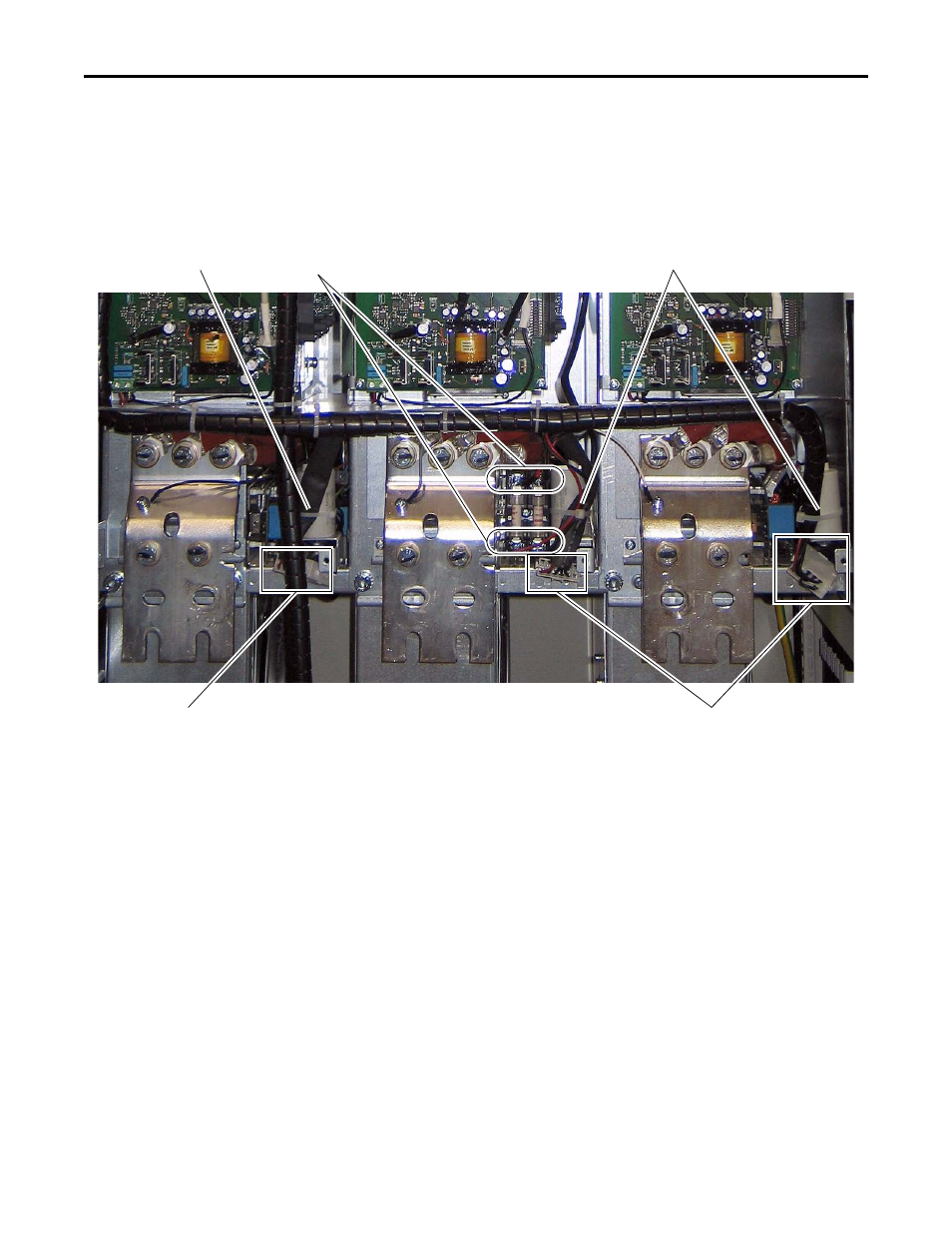

Disconnect fan signal connector
Disconnect fan signal connector
Remove wires from fan fuse holder
Cut cable tie
Cut cable tie
