Rockwell Automation 20D PowerFlex 700H and 700S AC Drives Frame 11 Main Fan Capacitor Replacement Kit User Manual
Page 11
Rockwell Automation Publication PFLEX-IN026A-EN-P - July 2011
11
PowerFlex 700H and 700S AC Drives Frame 11 Main Fan Capacitor Replacement Kit
3. Secure the new fan capacitor bracket assembly to the fan inverter assembly
using the two M5 x 10 mm POZIDRIV screws provided in the kit.
Tightening torque is 4 N
•
m (35 lb
•
in).
4. Install the fan inverter assembly in the reverse order of removal as detailed
Remove the Existing Fan Capacitor
on page

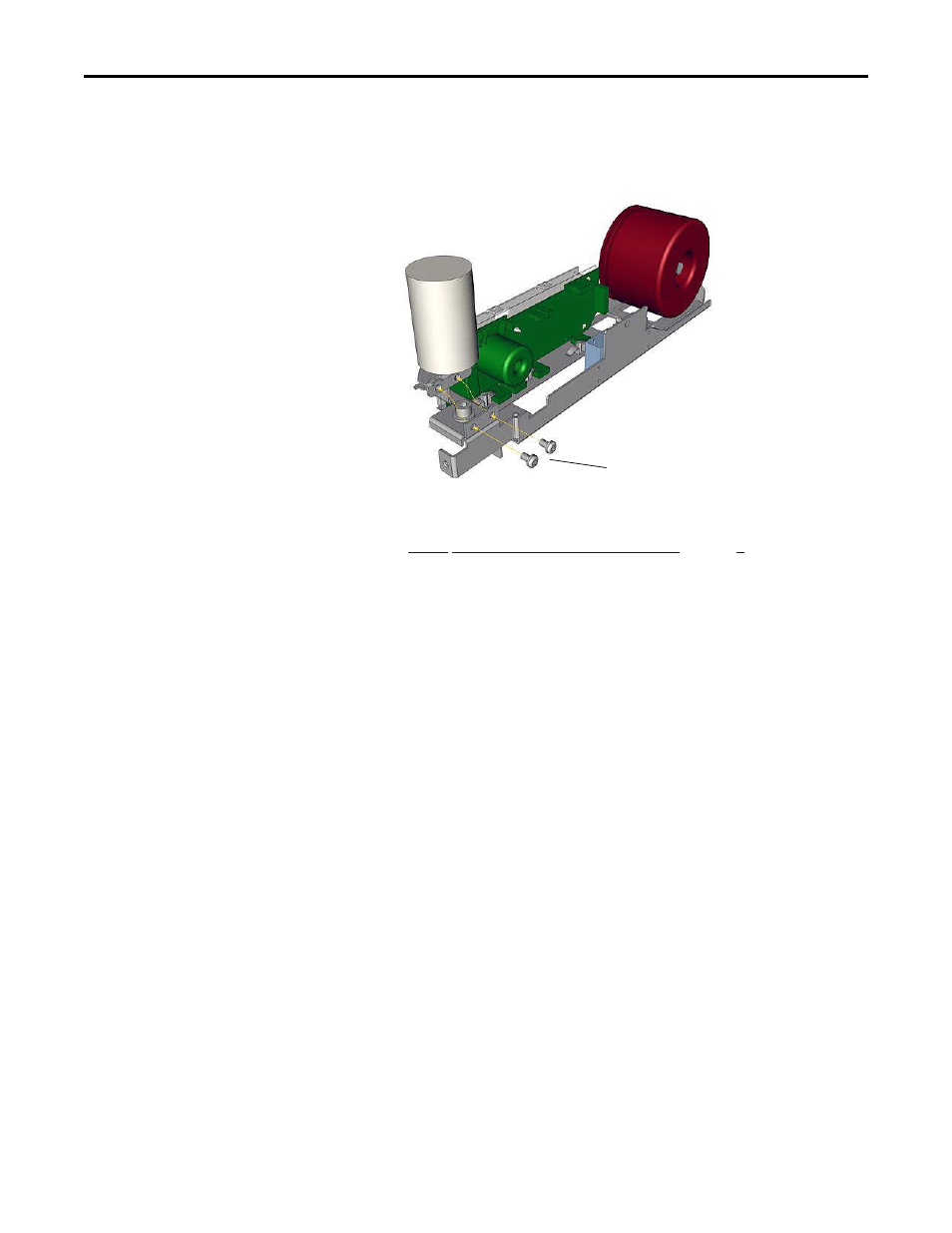

Secure capacitor bracket assembly to fan
inverter assembly using two screws provided
