I/O Companion Slot Cables TC-200
Issue 14 Apr 10 PD-TC200 28
20. I/O Companion Slot Cable Type TC-223
This type of cable, and the modules/field termination assemblies it is used with, is shown in Figure 20
below.

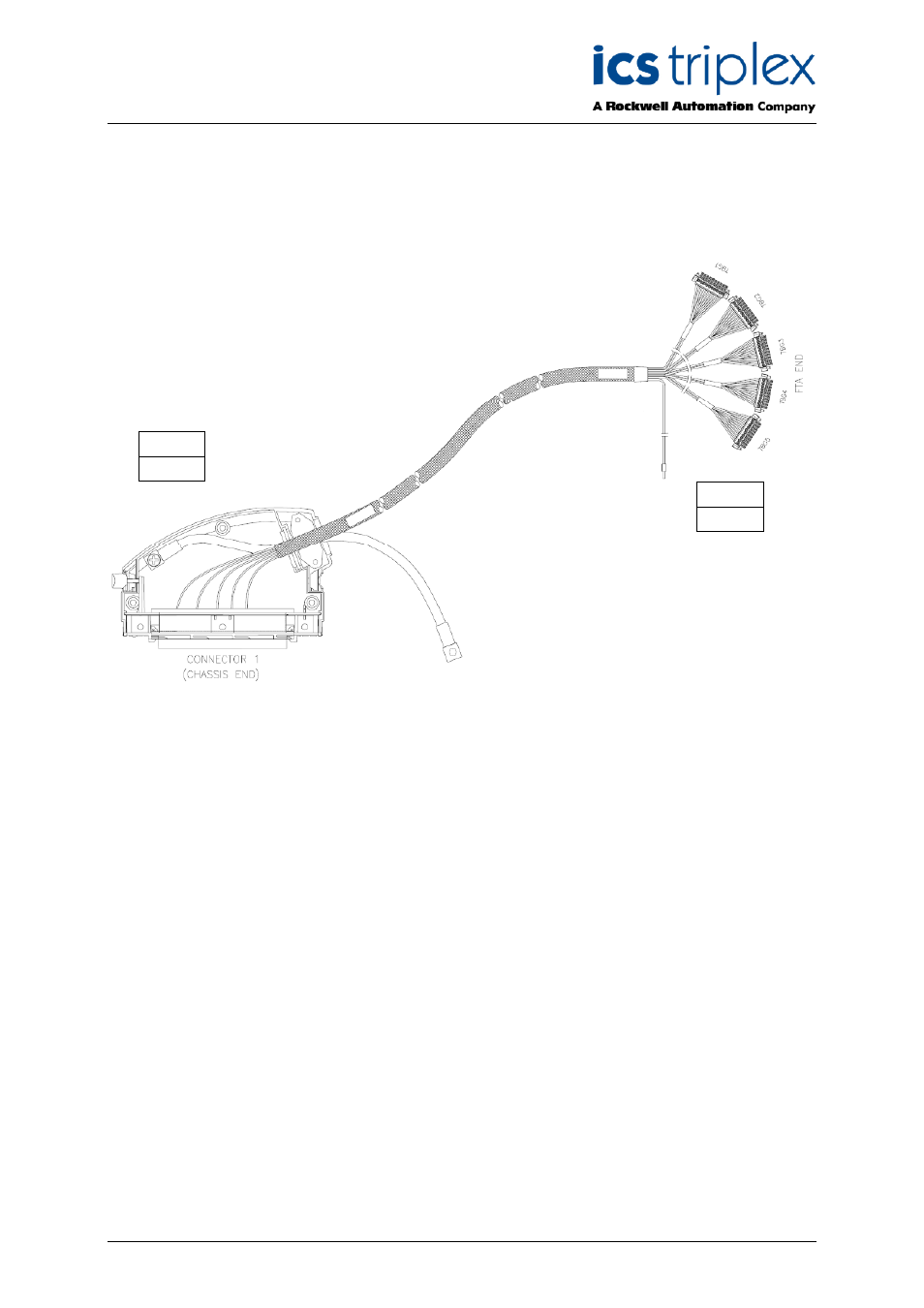

Figure 20 I/O Companion Slot Cable Type TC-223
This type of Trusted
TM
I/O Companion Slot Cable is designed for use with T8424 120Vac digital input
modules and is suitable for connecting input signals from an internal VFTA to the module. Note that the
T8424 should only be paired with a T8824 FTA.
The chassis end of the multi-core cable is fitted with two 96-way type ‘C’ connectors housed in a
double-width hood. The other end of the multi-core is fitted with five 10-way screw-retained connectors
enabling the cable to be terminated at a T8824 VFTA.
The multi-core is stripped back 1.5m at both ends, then shrouded in nylon Rilgain sheathing. The ends
of the sheathing are heated or fitted with over sleeving to prevent fraying.
At the chassis end, a sheathed braid allows the connector hood to be wired to safety earth. At the
remote end, the multicore screen drain is wired to a green wire to allow connection to screen earth.
Module
T8424
VFTA
T8824
