12. Communications Cable Type TC-322-02
This type of Communications Cable is shown in Figure 13 below.

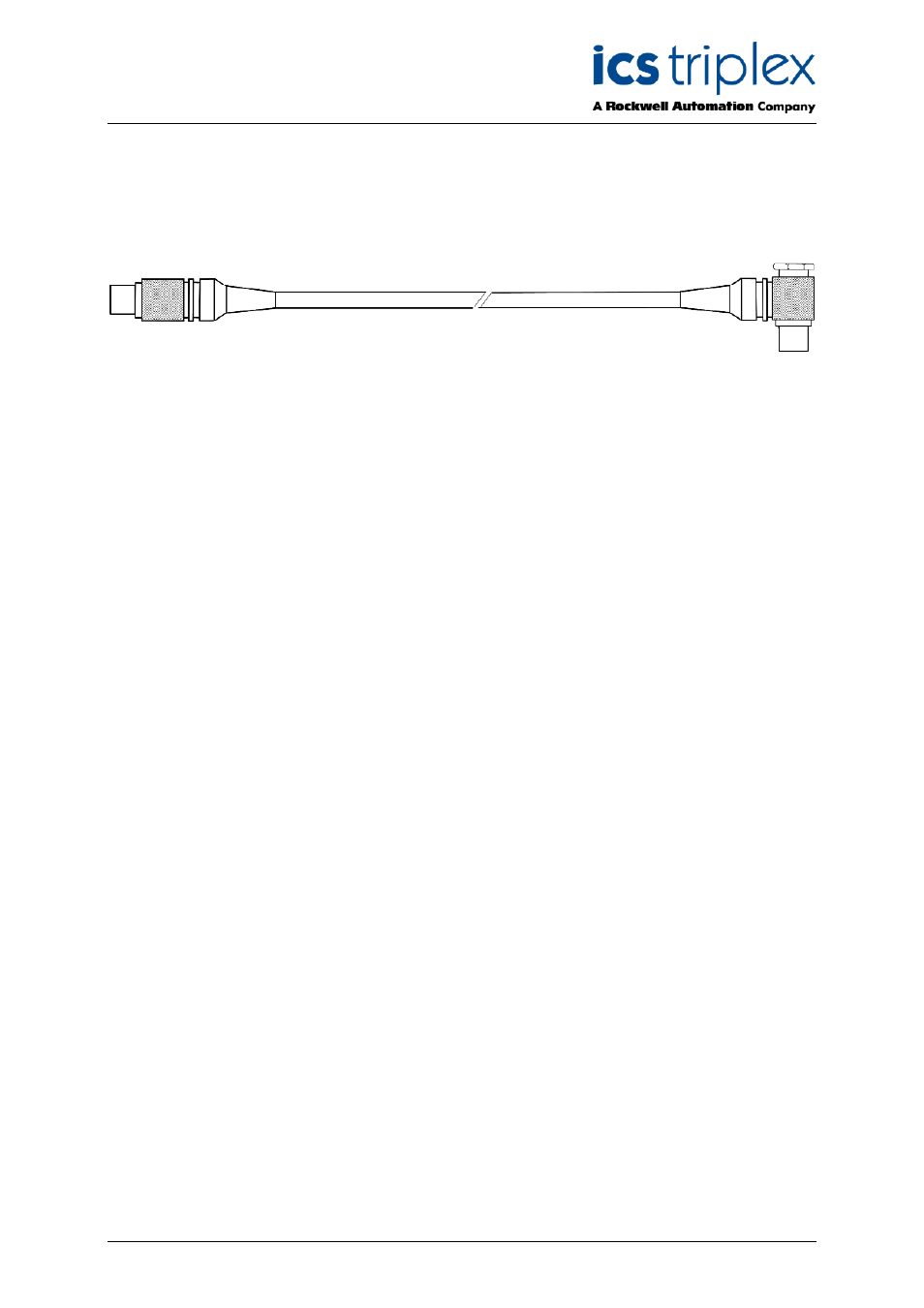

Figure 13 Communications Cable Type TC-322-02
This type of Trusted
TM
Communications Cable is designed to connect communications between a
Trusted
TM
Expander Interface module T8311 and a 8161 SC300e Bridge Module in a SC300e
Triguard chassis or a 8162 CS300 Bridge Module in a CS300 chassis. This creates a system with a
Trusted
TM
processor (and other Trusted
TM
modules) and Triguard or CS300 I/O modules.
The cable is fitted with two 12-way round connectors. At the Trusted
TM
end, the connector fits a socket
on the T8312 Interface Adapter, which mounts on the Trusted
TM
chassis behind the P8311 Expander
Interface. At the Triguard or CS300 end, the right-angled connector fits an interface card supplied with
the cable, which fits the three PCB header connectors on the Triguard or CS300 chassis backplane.
For more information, please refer to PD-8161 and PD-8162
The Cable is manufactured from two lengths of 8 way screened cable shrouded in Vidaflex sheathing.
The ends of the sheathing are taken inside a bend relief cable boot at each end.
