11. Communications Cable Type TC-321-01
This type of Communications Cable is shown in Figure 12 below.

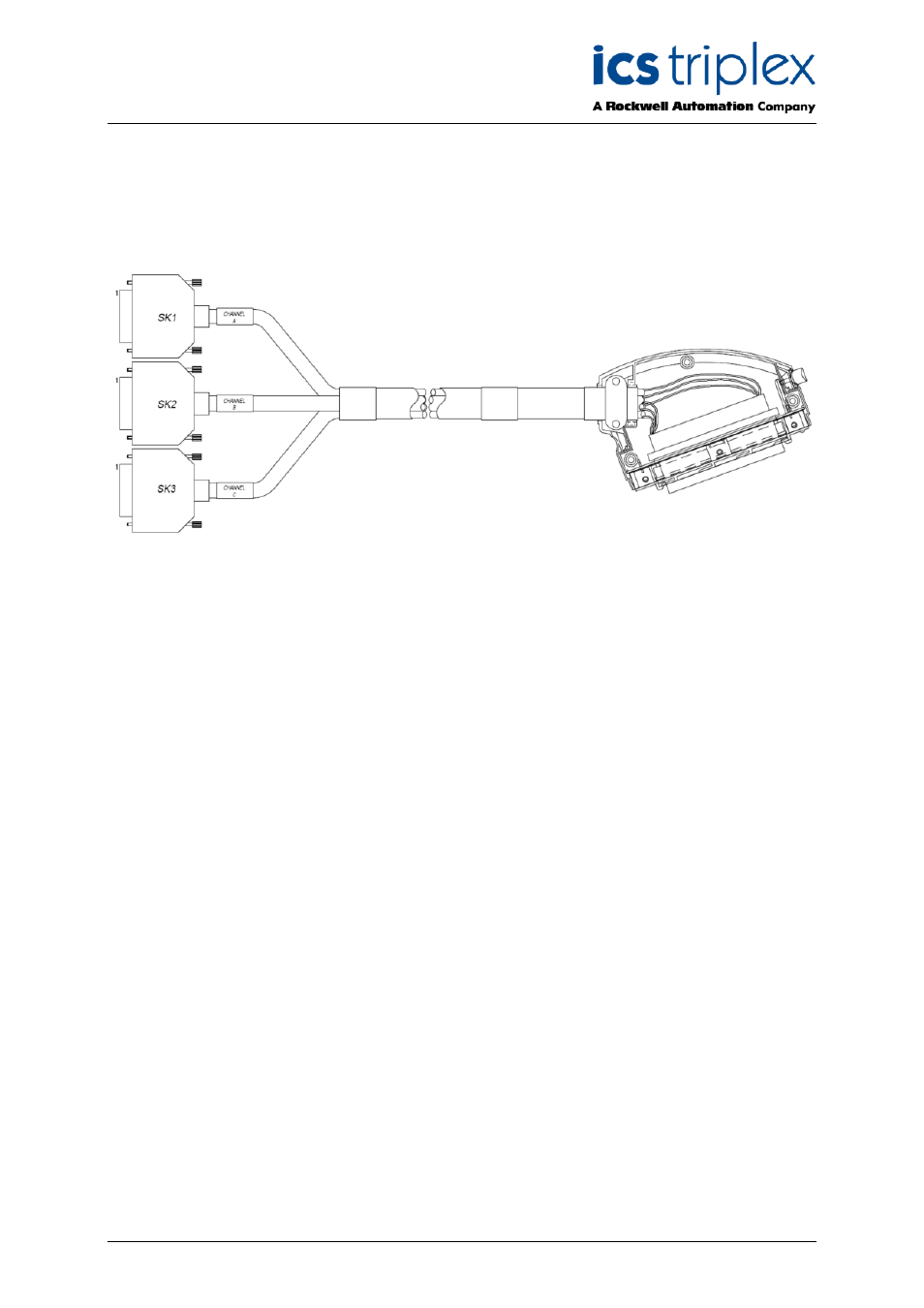

Figure 12 Communications Cable Type TC-321-01
This type of Trusted
TM
Communications Cable is designed to connect communications between a
T8160 TMR Interface Module and one or more Regent I/O chassis. This creates a system with a
Trusted
TM
processor (and other Trusted
TM
modules) and Regent I/O modules.
The T8160 end of the cable is fitted with two 96-way type ‘C’ connectors housed in a double-width
hood. The hood is fitted with an earth braid. The Regent Chassis end is fitted with three sockets
designed to link onto three TMR Interface cables to the Regent chassis.
The Cable is manufactured from 96-way LSLH cable shrouded in Vidaflex sheathing. The ends of the
sheathing are covered in heat shrink sleeving and heated to prevent fraying.
