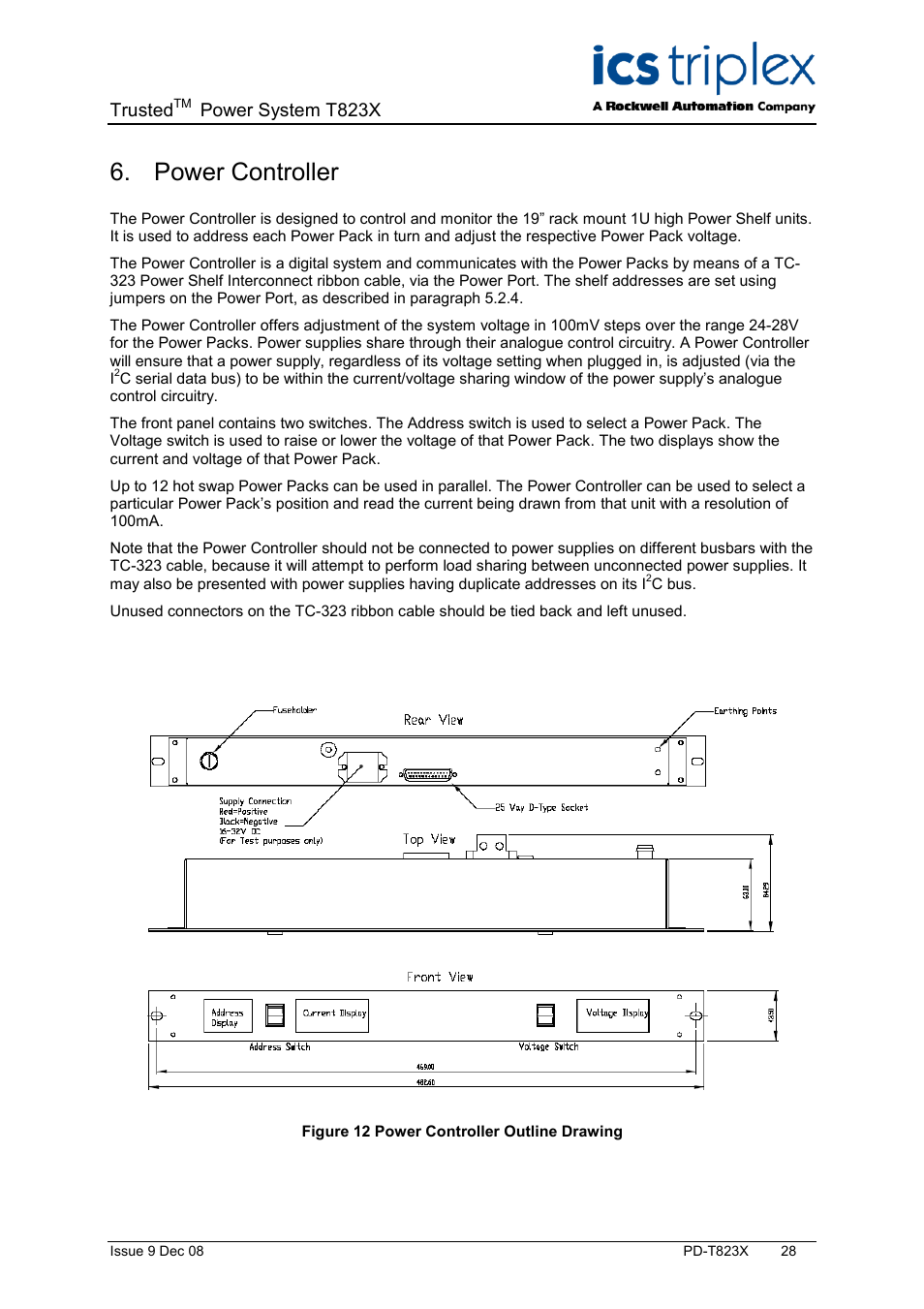

Power controller, Figure 12 power controller outline drawing, Trusted – Rockwell Automation T823X Trusted Power System User Manual
Page 28: Power system t823x
