Fire Detector Input Modules (T7419)


P D - 7 0 3 2 M a r - 0 6

13

Configuration

Each fire detector input module is configured using the
W

INTERPRET

I/O Configuration Editor. In the editor, you will

perform the steps described below to configure the input
module.

1) Set the Module Type:

Position the cursor on the module slot you wish to define.
Choose Set Module Type from the Edit Menu and select
the T7419, Fire Detector Input Module from the list.

2) Edit the Module Definition:

Choose Edit Module Definition from the Edit Menu. A
dialog box will open where you can define the input module
and point definitions.

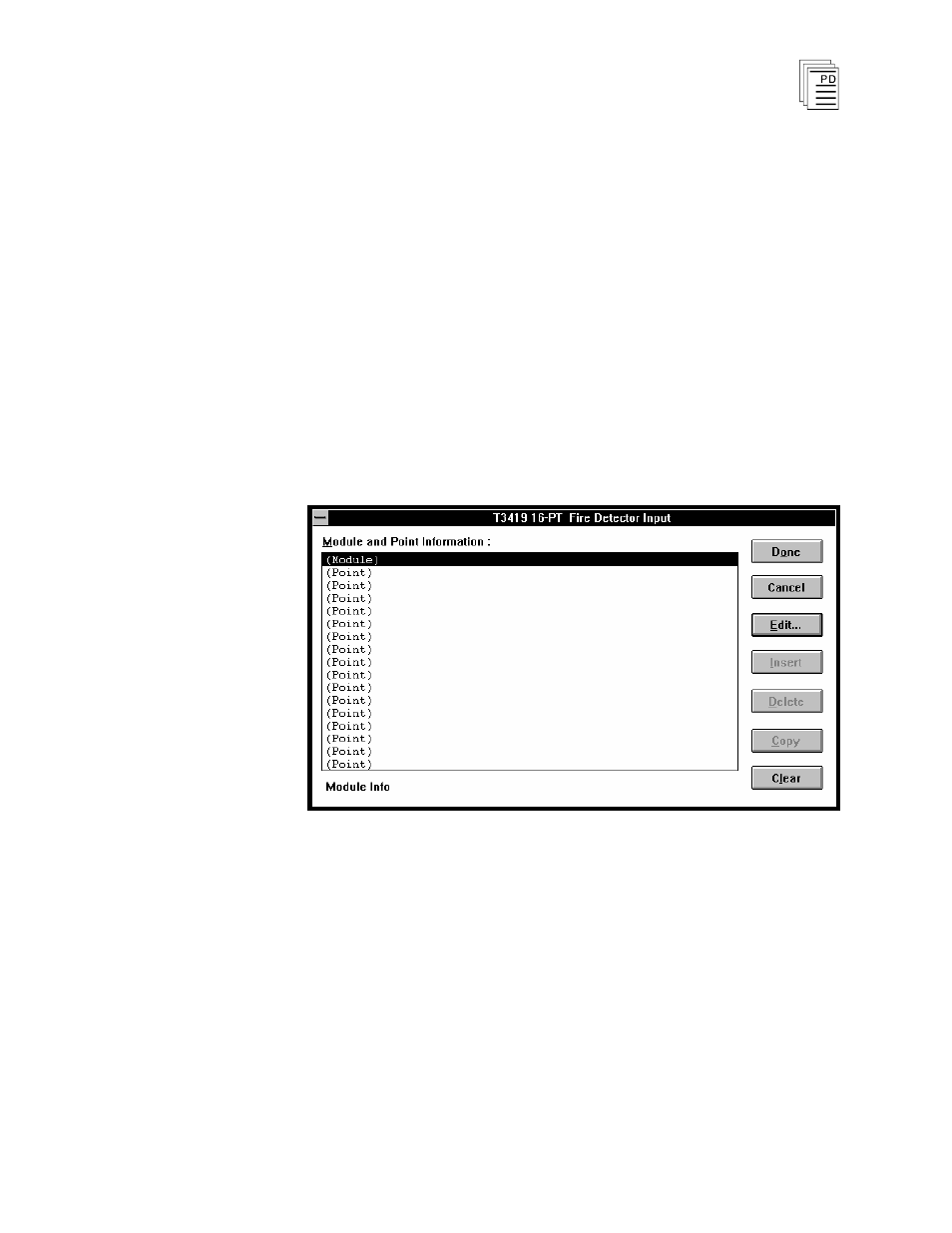

Figure 5. Fire Detector Input Module Definition.

3) Define the Input Module Fields and Thresholds:

With the cursor at the top of the list in the Module
Definition dialog shown in Figure 5, open the Fire Detector
Input Module dialog by pressing Enter or double clicking
on the “(Module)” selection. The dialog box shown in
Figure 6 will open.
