Mount the computer on a din rail – Rockwell Automation 6155F-NPXPDC Compact Non-display Computers User Manual
Page 9
Compact Industrial Non-display Computers 9
Rockwell Automation Publication 6155R-IN002E-EN-P - July 2013

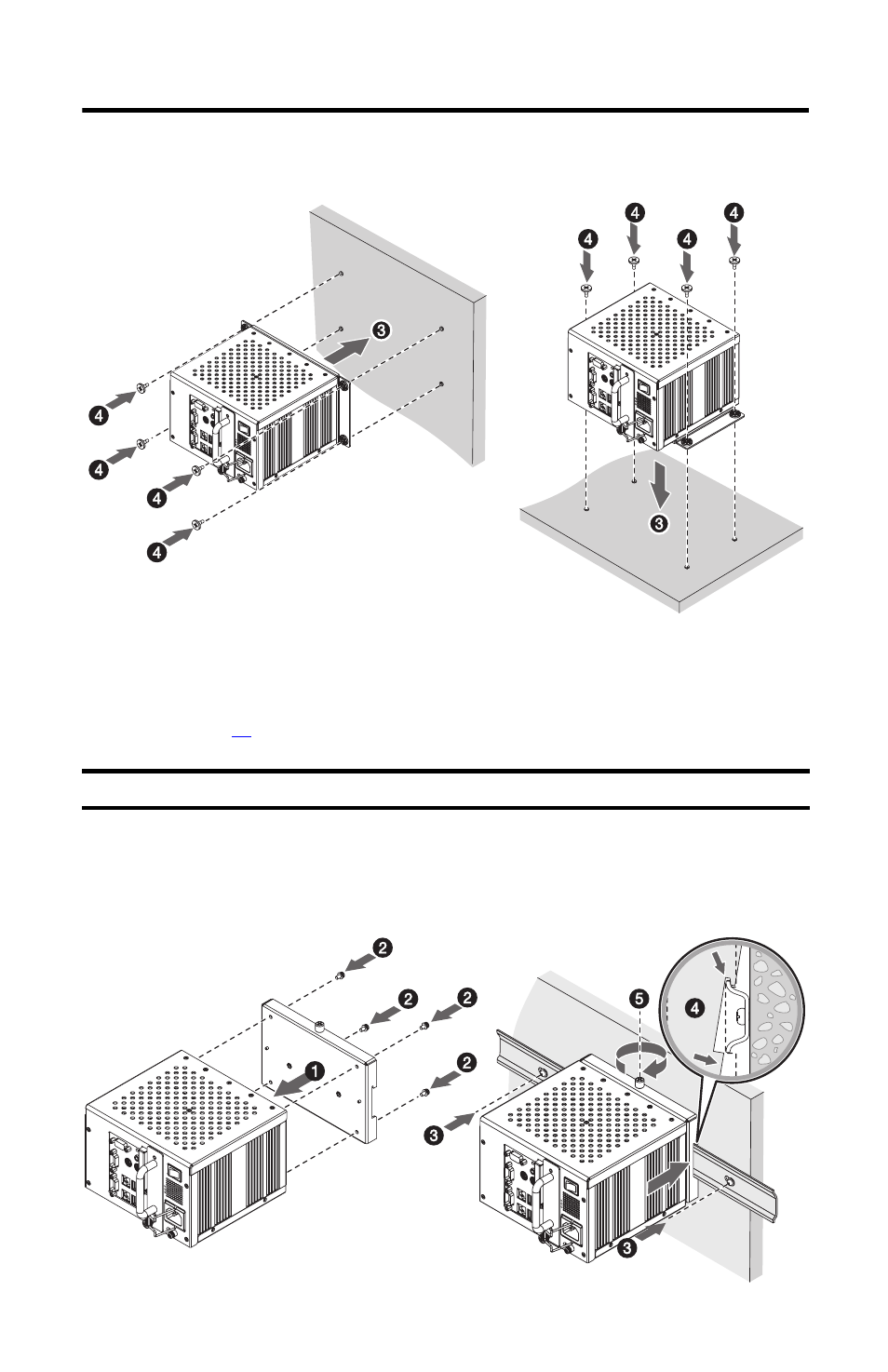

5. Insert the remaining M4 panhead screws through the mounting bracket into the wall
and tighten
(4).
Mount the Computer on a DIN Rail
You can mount the computer on a DIN rail. The DIN-rail bracket mounts to the back of the
computer. See page
11
for the DIN-rail bracket dimensions.
1. Attach the DIN-rail bracket to the back of the computer (1).
2. Secure the DIN-rail bracket by using four, M4 x 5 mm panhead screws; torque to 0.686
N•m (6.072 lb•in)
(2).
IMPORTANT
Do not mount the computer on a DIN rail in high shock and vibration environments.
Mounting Bracket on the Back
Mounting Bracket on the Bottom
