8 Compact Industrial Non-display Computers
Rockwell Automation Publication 6155R-IN002E-EN-P - July 2013
Install the Computer
The computers support various mounting options:
•
Wall mount
•
DIN rail mount
•
VESA mount
A bracket with mounting screws is provided for each mounting option.
Mount the Computer on a Wall
You can mount the computer on a wall by using a mounting bracket. See page
11
for the
wall-mount bracket dimensions.
1. Drill and tap four M4 holes in the wall, a minimum of 5 mm, that correspond to the
holes in the mounting bracket.

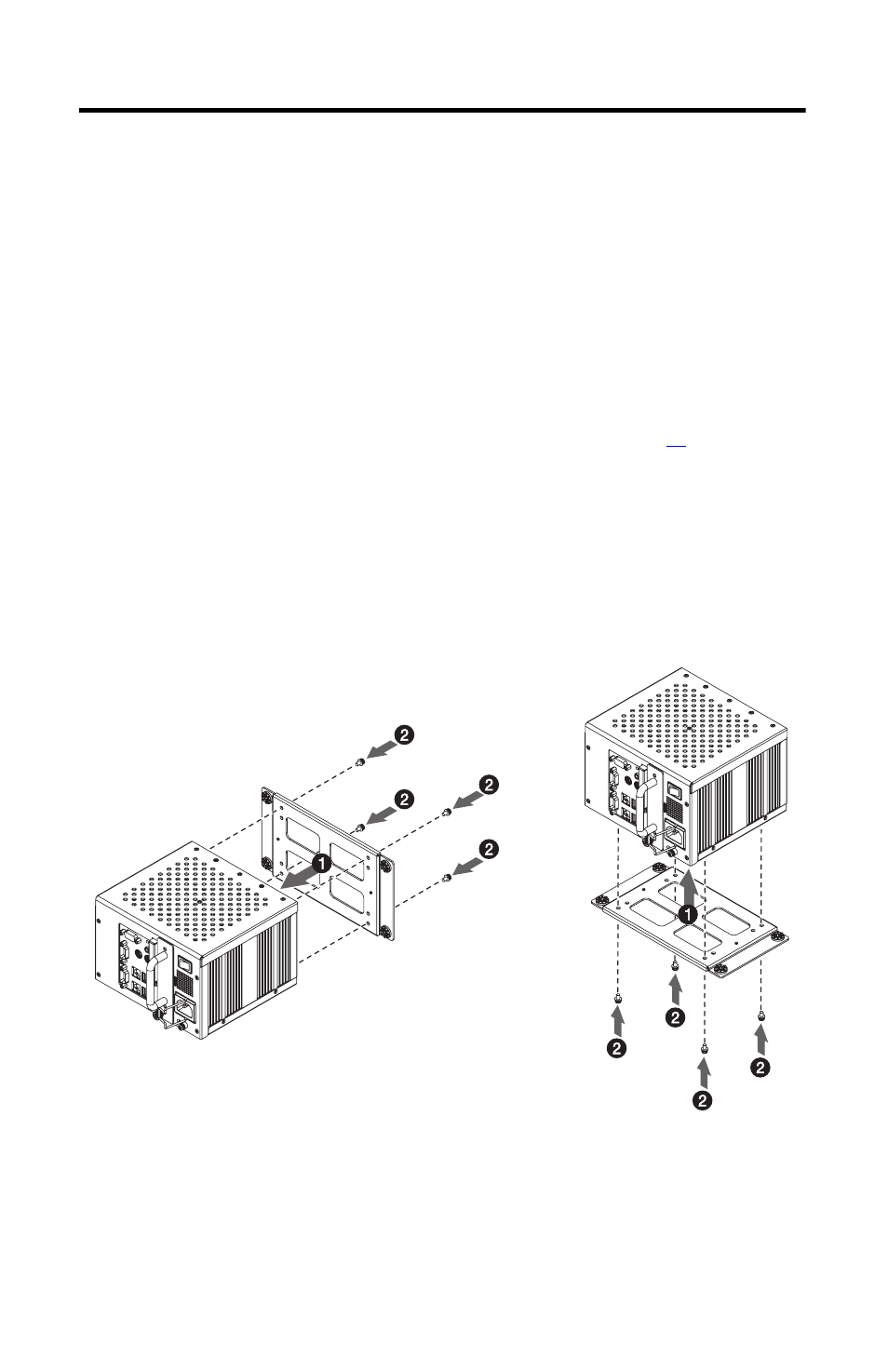

2. Attach the mounting bracket to the bottom or back of the computer (1).
3. Secure the mounting bracket with the provided M4 x 8 mm panhead screws (2).
Torque the screws to 0.686 N•m (6.072 lb•in).
4. Position the computer against the wall, aligning the holes in the mounting bracket with
the holes in the wall
(3).
TIP
Support the computer with a shelf or other means to make installation at the appropriate
height easier.
Mounting Bracket on the Back
Mounting Bracket on the Bottom
