5v aux – Rockwell Automation 2090-U3BB-DM12 CN1 Control Interface Breakout Boards Installation Instructions User Manual
Page 4

Rockwell Automation Publication 2090-IN007D-EN-P - August 2010
PN-78228
Supersedes Publication 2090-IN007C-EN-P - January 2007
Copyright © 2010 Rockwell Automation, Inc. All rights reserved. Printed in the U.S.A.
Allen-Bradley, Rockwell Automation, Rockwell Software, and Ultra3000 are trademarks of Rockwell Automation, Inc.
Trademarks not belonging to Rockwell Automation are property of their respective companies.
Rockwell Otomasyon Ticaret A.Ş., Kar Plaza İş Merkezi E Blok Kat:6 34752 İçerenköy, İstanbul, Tel: +90 (216) 5698400
Catalog Number 2090-U3BB-DM12
Connector
Pin
Signal
Connector
Pin
Signal
SERCOS
Non-SERCOS
SERCOS
Non-SERCOS
CN1-3
AUXPWR
(1)
(1)
The 5.2V DC auxiliary power source is connected to the AUXPWR (positive) and AUXCOM (negative) terminals. Do not
ground the supply elsewhere in the system, as AUXCOM is connected to the drive chassis ground.
AUXPWR
(1)
CN1-37
OTRAV+
INPUT7
CN1-2
AUXCOM
(1)
AUXCOM
(1)
CN1-38
OTRAV–
INPUT8
CN1-31
ENABLE
INPUT1
CN1-27
I/OCOM
I/OCOM
CN1-32
HOME
INPUT2
CN1-43
BRAKE+
RELAY+
CN1-33
REG1
INPUT3
CN1-44
BRAKE–
RELAY–
CN1-34
REG2
INPUT4
SHIELD
SHIELD
SHIELD
CN1-3
CN1-2
CN1-31
CN1-32
CN1-33
CN1-34
CN1-37
CN1-38
CN1-27
CN1-43
CN1-44
SHIELD

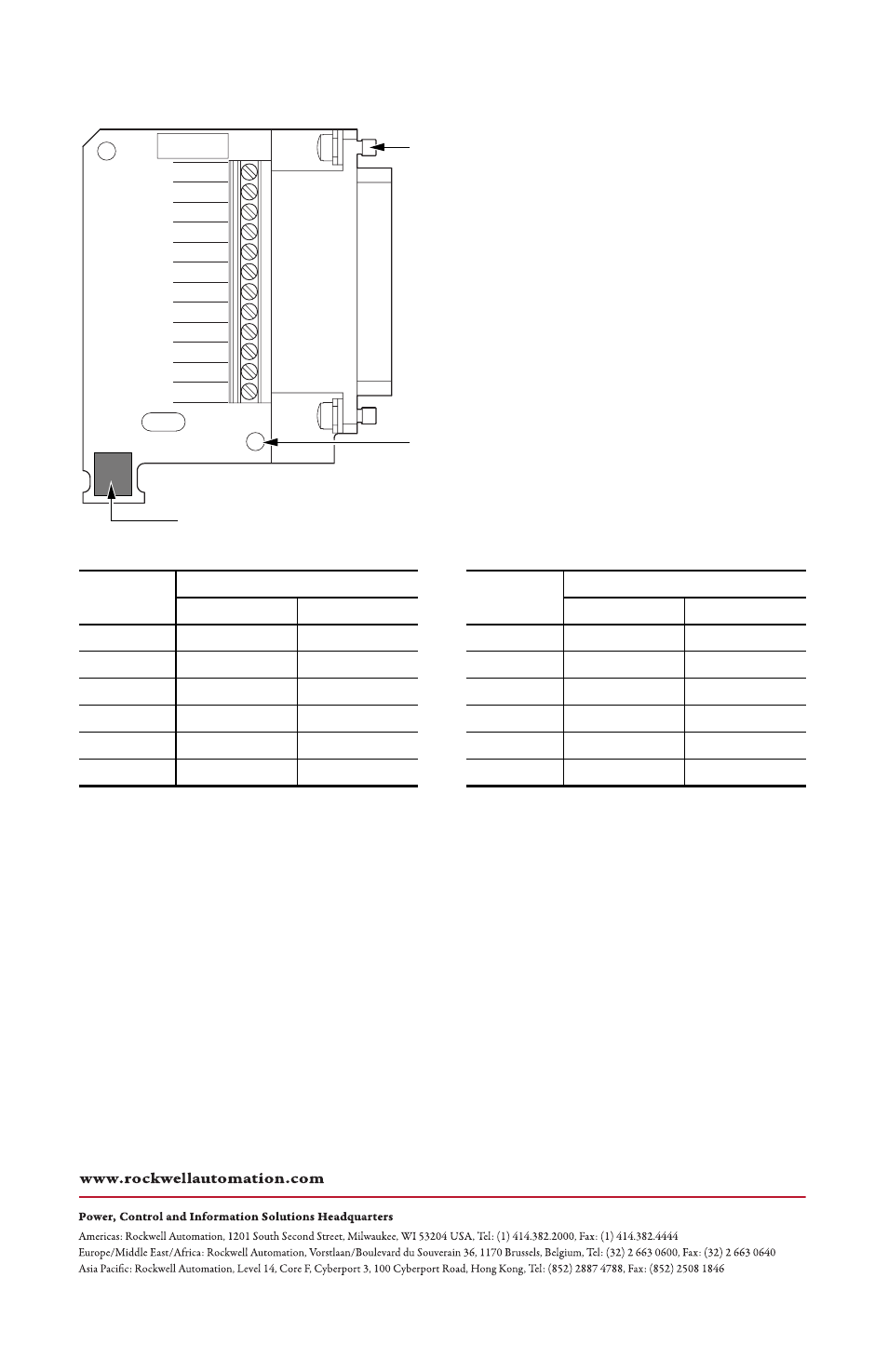

5V AUX
Mounting
Screw (2)
2 x 4-40 UNC
Cover Alignment
Pin (2)
Cable Shield Termination Pad
