Update selected drive – Rockwell Automation 7000 HMI Interface Board Software Updater and Firmware Download Procedure User Manual
Page 13
Rockwell Automation Publication 7000-QS002A-EN-P - October 2012
13
HMI Interface Board Software Updater and Firmware Download Procedure
3.
Select the desired HMI Interface Board (PowerFlex 7000 Forge Drive) from the list.
The HMI Interface Board IP is now displayed in the Drive fields.

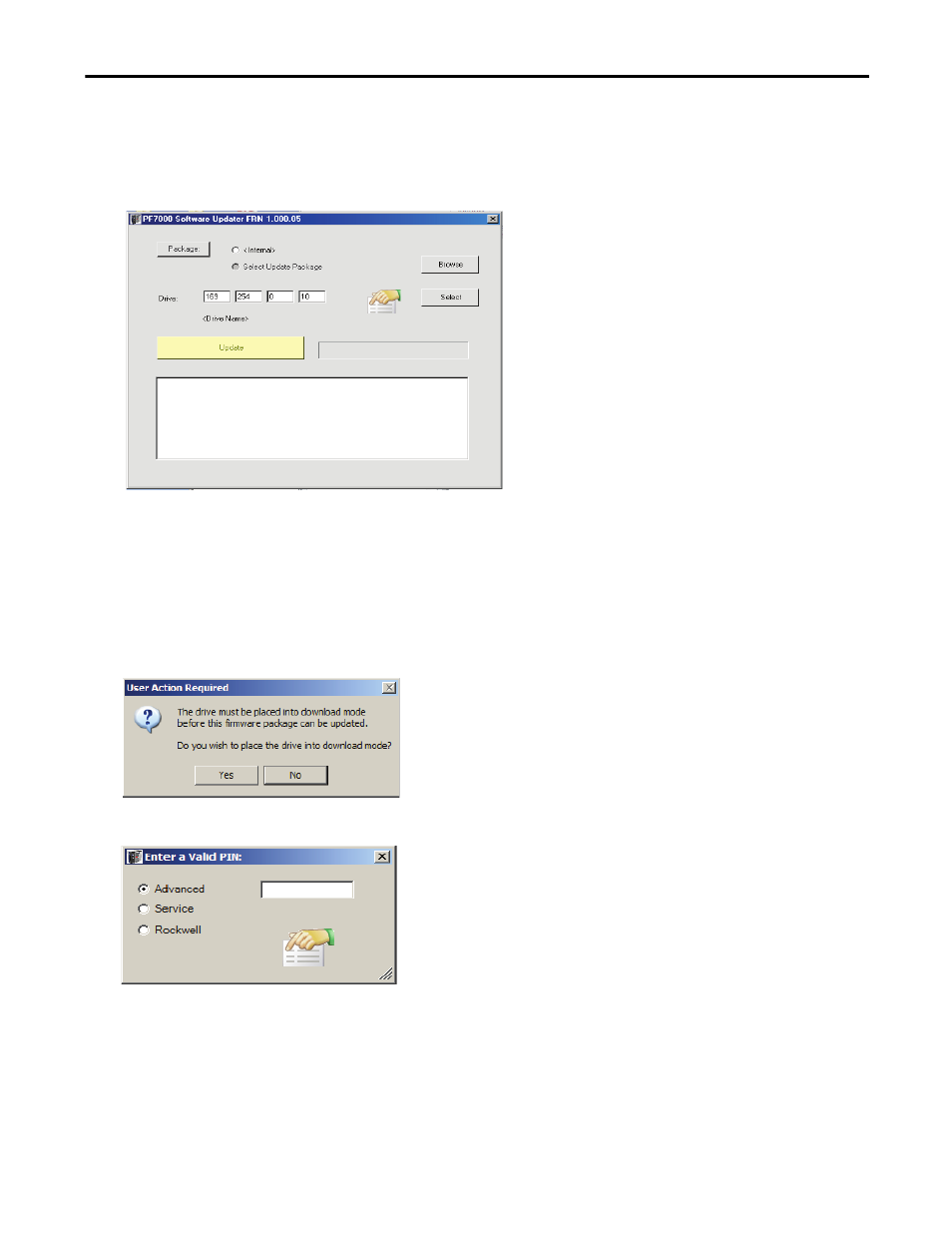

Update Selected Drive
Once the desired IP address of the drive is either selected or entered, the drive must be placed in Download Mode.
1.
Click Internal, and click Update.
The drive may need to be placed in download mode.
2.
Click Yes, and enter the appropriate PIN value for the desired access level.
TIP
If the IP address of the drive is known beforehand, enter it in the provided blank fields.
TIP
The PIN codes required for the firmware download are the same PIN codes used in the operator interface. Unless changed, the
Advanced PIN is 0 by default. If an incorrect PIN is entered, the update process must be restarted.
