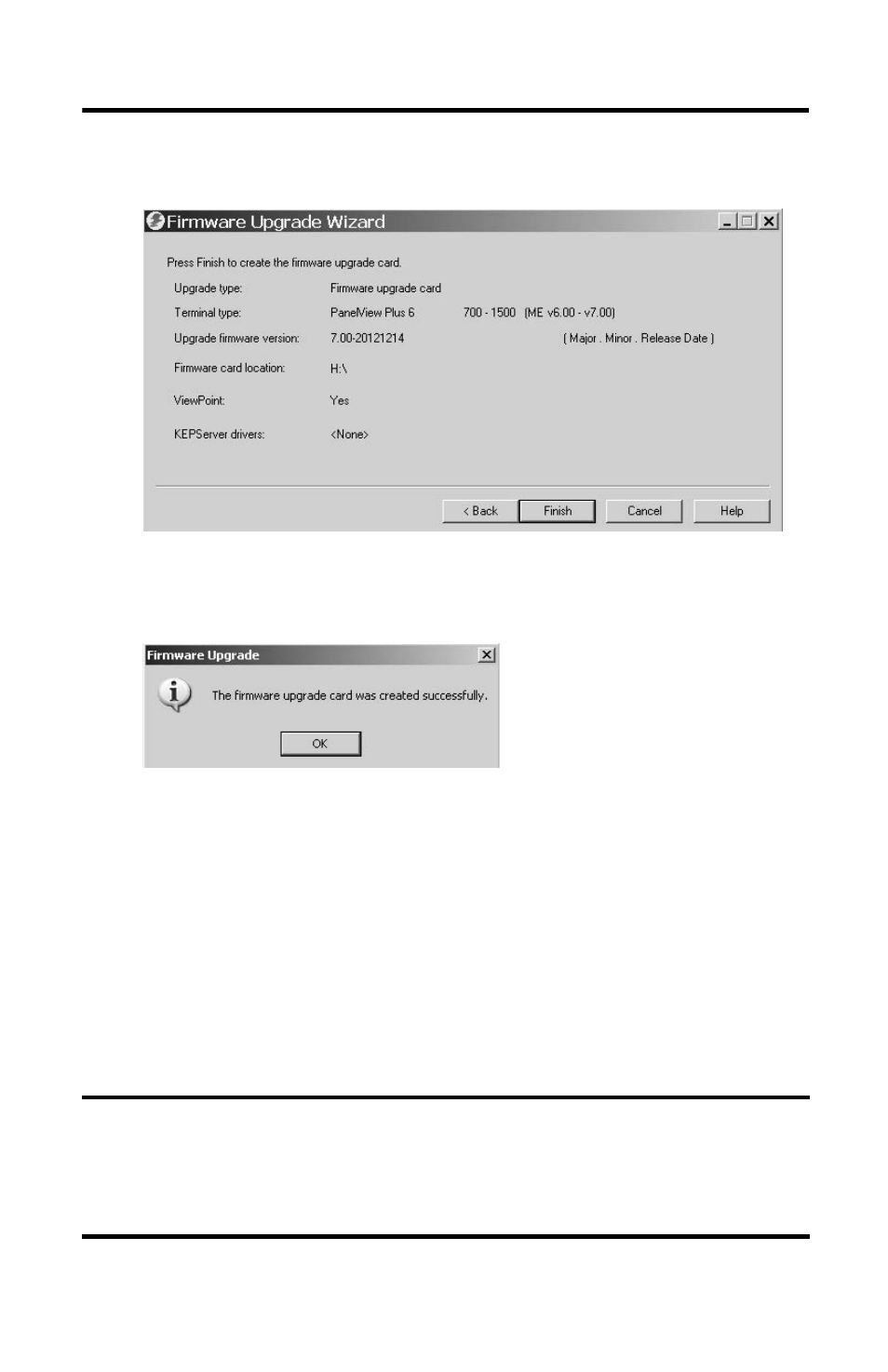

The final dialog box summarizes your choices for creating the firmware upgrade card.
6. Click Finish to update the firmware in the terminal.
A progress bar automatically updates as files are copied to the USB flash drive, CF card,
or SD card.
7. Click OK when the firmware upgrade completes successfully.
8. Remove the USB flash drive, CF card, or SD card from your computer.
9. Proceed to the next section to use this firmware upgrade card to upgrade the terminal
firmware.
Upgrade Terminal Firmware by Using Firmware Upgrade Card
Follows these steps to transfer firmware files from the USB flash drive, CF card, or SD card to the
terminal. This is the firmware upgrade card created in the previous section.
TIP
If the firmware files were copied to the hard drive, copy the files to the root directory of the USB flash
drive, CF card, or SD card.
IMPORTANT
•
Do not remove or accidently disconnect the USB flash drive, CF card, or SD card while a
firmware upgrade is in process. This could corrupt the firmware and make the terminal
unstable.
•
Do not power off the terminal during a firmware upgrade.
•
USB hubs can produce unexpected behavior and are not recommended.
