Publication 2711P-UM004B-EN-P - March 2007
50 Configure the Terminal as a Scanner
For each block of data, you will enter the node address of the
1756-DNB DeviceNet module to indicate that the module is the slave
device. The node address of the 1756-DNB module for the sample
configuration is node 1.
Configure the Scanner Input Data
You are now ready to configure the scanner input data. You will do
this in Communications Setup in RSView Machine Edition under
RSLinx Enterprise software.
The example used in this chapter builds from the Slave configuration
example. You can configure a PanelView Plus terminal as both a
scanner and slave for the same application.

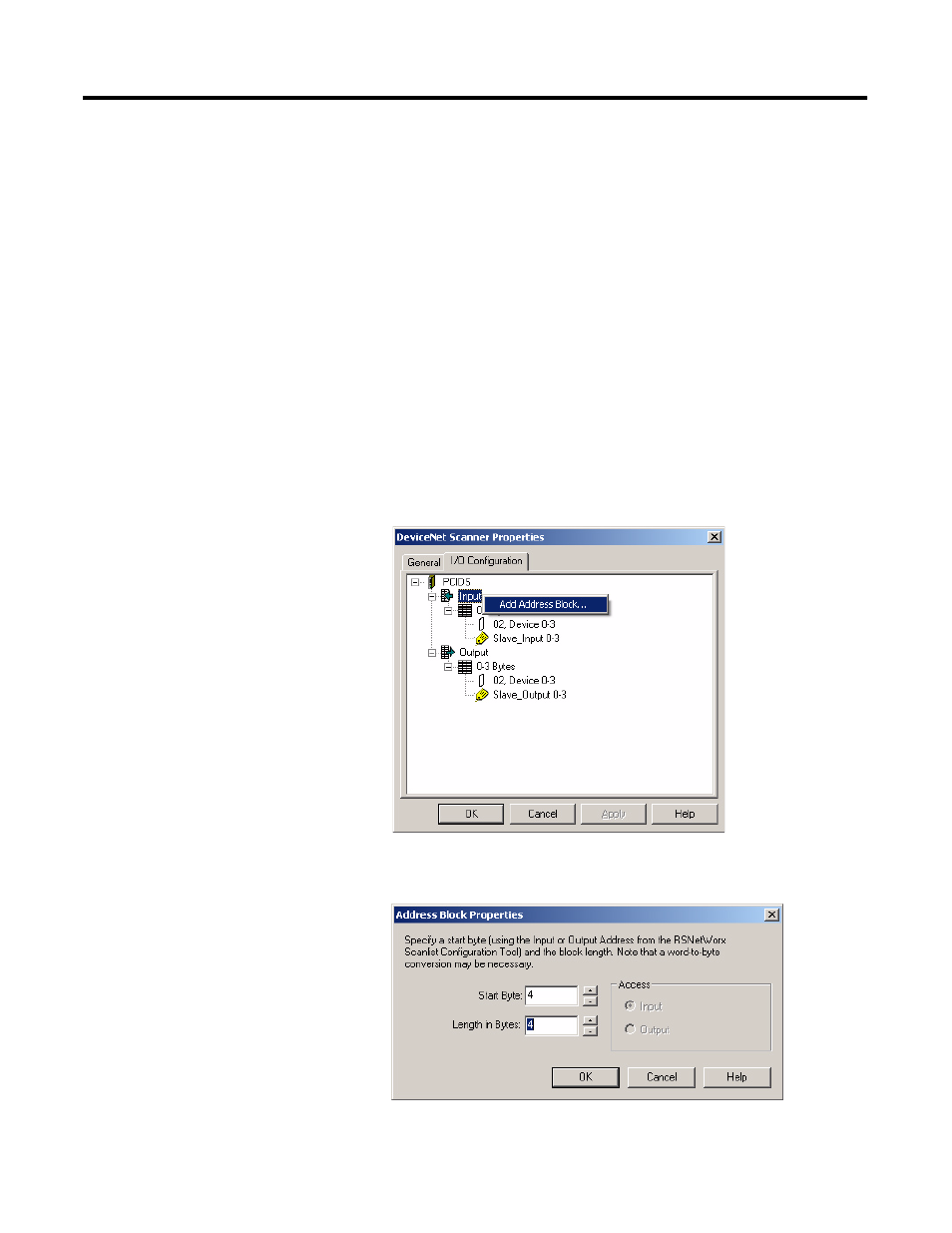

1. On the I/O Configuration Tab, right-click the Input icon and
select Add Address Block.
2. In the Address Block Properties dialog set the Start Byte to 4,
Length in Bytes to 4, and click OK.
The address block 4-7 Bytes is added under Inputs.
