Configure the Terminal as a Slave Device 31
Configure RSNetWorx for
DeviceNet Software
This section shows how to create a DeviceNet configuration using
RSNetWorx for DeviceNet software. You must now map the
PanelView Plus I/O configuration to the 1756-DNB DeviceNet
module.
1. Open RSNetWorx for DeviceNet software by selecting Start >
Menu > Programs > Rockwell Software > RSNetWorx >
RSNetworx for DeviceNet.

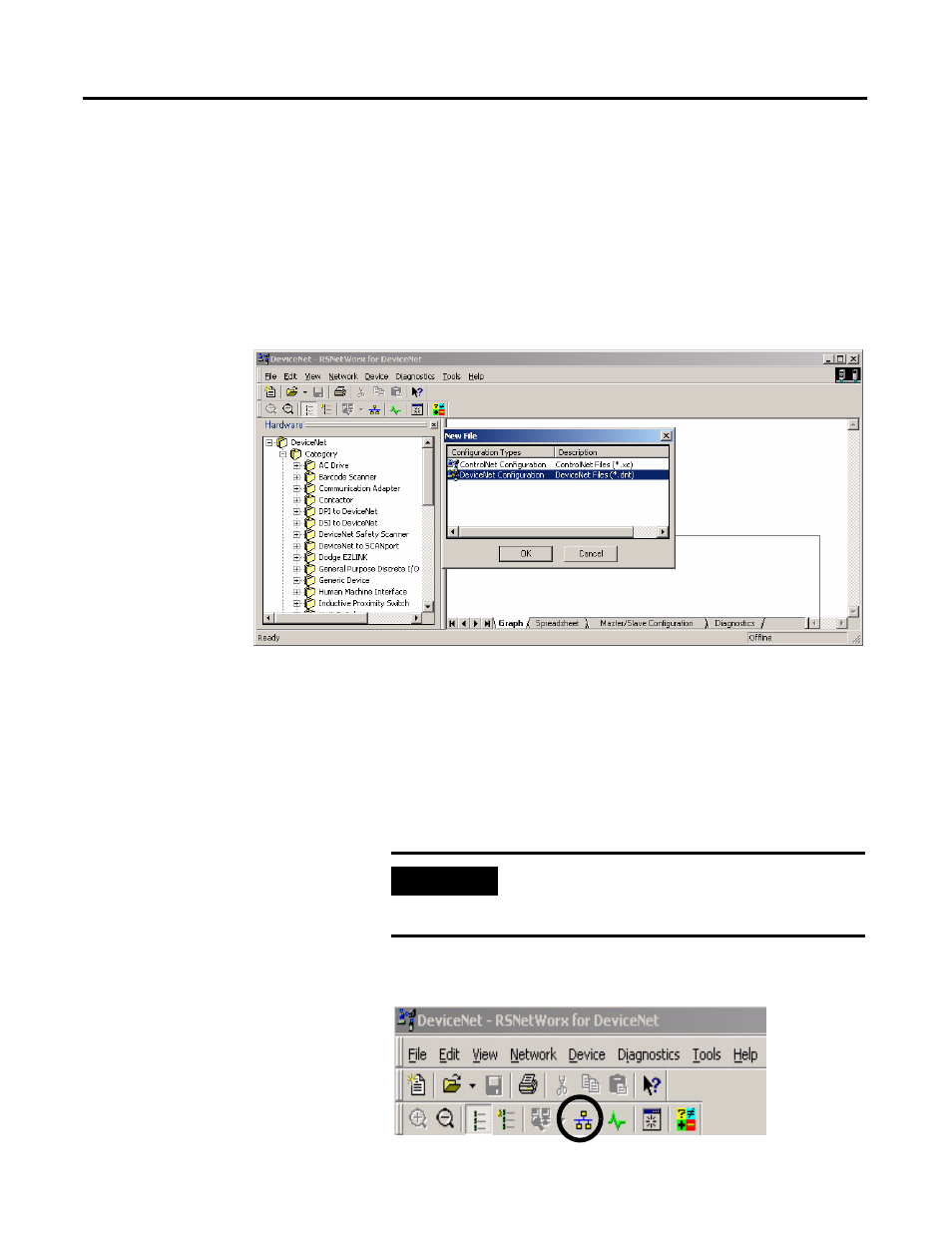

2. Create a new DeviceNet configuration and click OK.
The example configuration uses online browsing for devices on
the DeviceNet network.
3. Make sure all connections are made and that the communication
rates match on all devices.
4. On the PanelView Plus, load the runtime .mer application in
RSView Machine Edition, but do not run it as this time.
5. When the network and devices are ready, go online by clicking
the icon on the toolbar.
IMPORTANT
Do not run the application until the scanlist is
downloaded to the terminal. A scanlist will not
download to the terminal if the application is running.
