15 Publication 2711P-UM004B-EN-P - March 2007
Chapter
2
Configure the Terminal as a Slave Device
Chapter Objectives The procedures in this chapter will show you how to configure a
PanelView Plus terminal to operate as a slave device on a DeviceNet
network. A ControlLogix processor with a 1756-DNB DeviceNet
module will scan inputs and outputs from the PanelView Plus
terminals.
You will learn how to:
• configure communications for the PanelView Plus terminal and
1756-DNB module using RSLinx Enterprise software in RSView
Studio software.
• create a DeviceNet configuration using RSNetWorx for
DeviceNet software.
• add the DeviceNet module I/O configuration to the ControlLogix
tag database using RSLogix 5000 software.

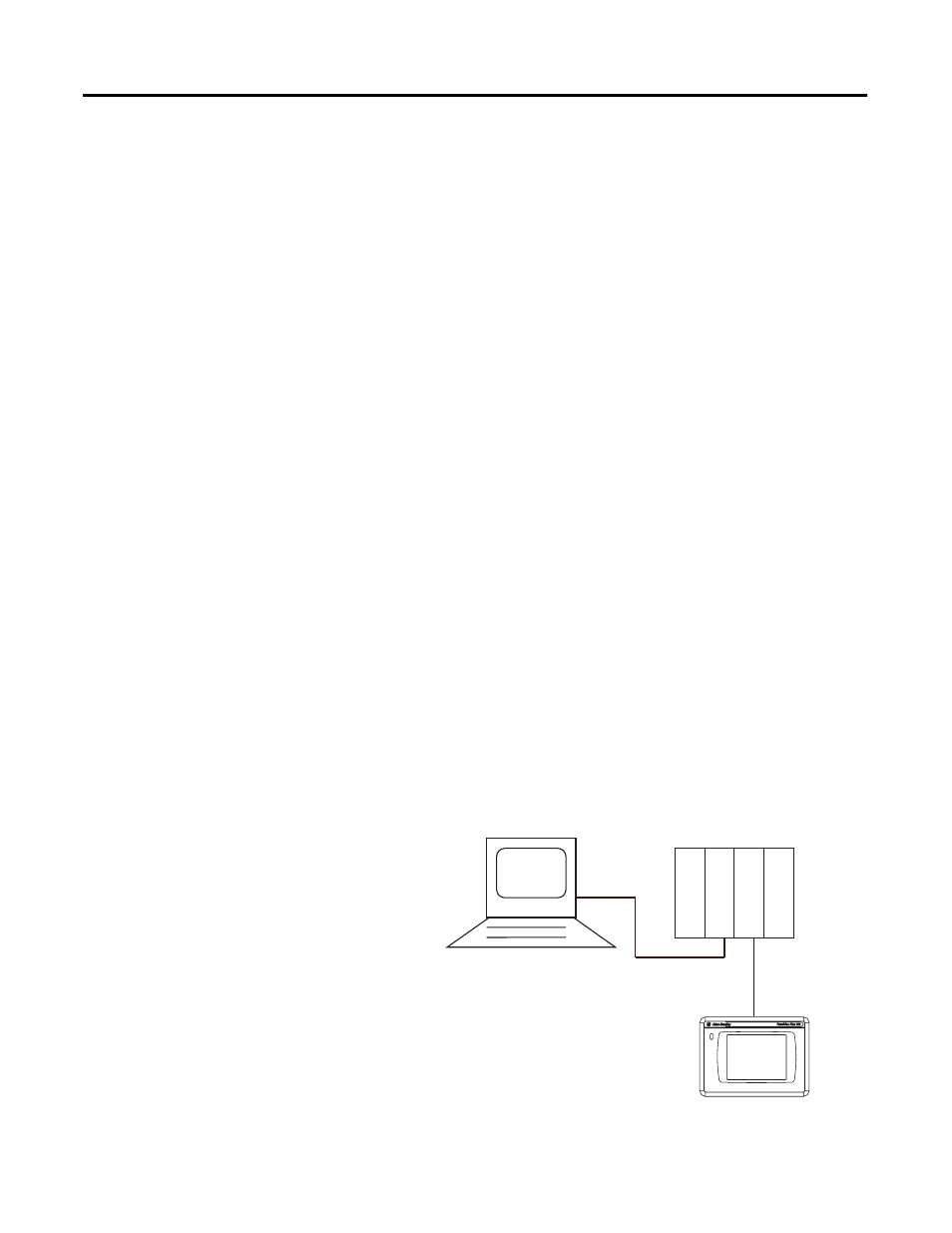

Sample Network
Configuration The example configures DeviceNet I/O messaging for a numeric input
and numeric output from a PanelView Plus terminal to a 1756-L63
ControlLogix processor, version 15.0.
• The PanelView Plus terminal has a network node address of 2.
• 1756-L63 ControlLogix processor, version 15.0, in slot 0
communicates via the 1756-DNB DeviceNet scanner module at
network node address 1 in slot 2.
D
N
B E
N
B
T
L
6
3
RSLogix 5000 network
RSNetWorx network
RSView Studio network
Ethernet
Network
PanelView Plus with
DeviceNet module
DeviceNet
Cable
Node 2
1756-DNB Scanner
Node 1
