Industrial 17" CRT Monitor 17
Publication 6159-5.1
Status LEDs
The 6159 Industrial Monitor has two status LED indicators on the front
panel. The following table lists the functions assigned to the LEDs:
Table B
6159 Industrial Monitor Status LED Indicators
LED Description
Power LED (Green) •
Indicates that power is applied to the monitor.
Status LED (Amber)
•
Indicates that the monitor is not receiving a
video signal.
Note: For information on troubleshooting the 6159 Industrial
Monitor, refer to Page 28.
Operating the Main Menu
This section explains the digital main menu and explains how to make
operation adjustments.
To display the main menu:
Press to display the menu. The main menu (see below figure) appears
on the screen.

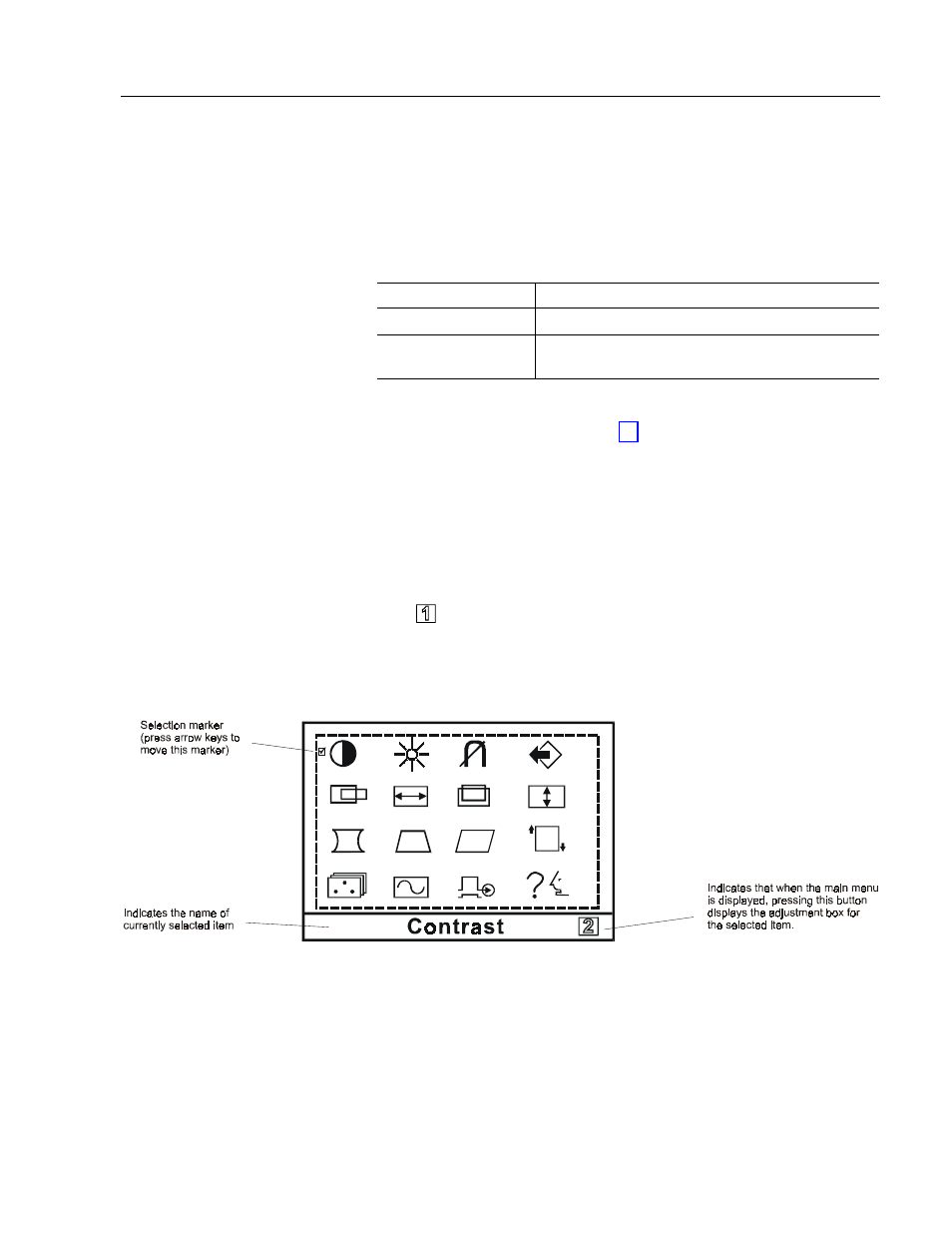

Figure 7
Main Menu
The user can make all the necessary adjustments by making selections in
the main menu using one or all of the operation keys. The following
pages describe how to make these individual adjustments.
Before advancing to these adjustments, the user needs to understand the
basic procedure in using the operation keys. To aid in this understanding,
a sample procedure is provided below:
