Step 4. attaching the new keypad faceplate – Rockwell Automation 2711E-NK5 Replacing the PanelView 1400E Keypad Faceplate User Manual
Page 6

Replacing the PanelView 1400e Keypad Faceplate
6

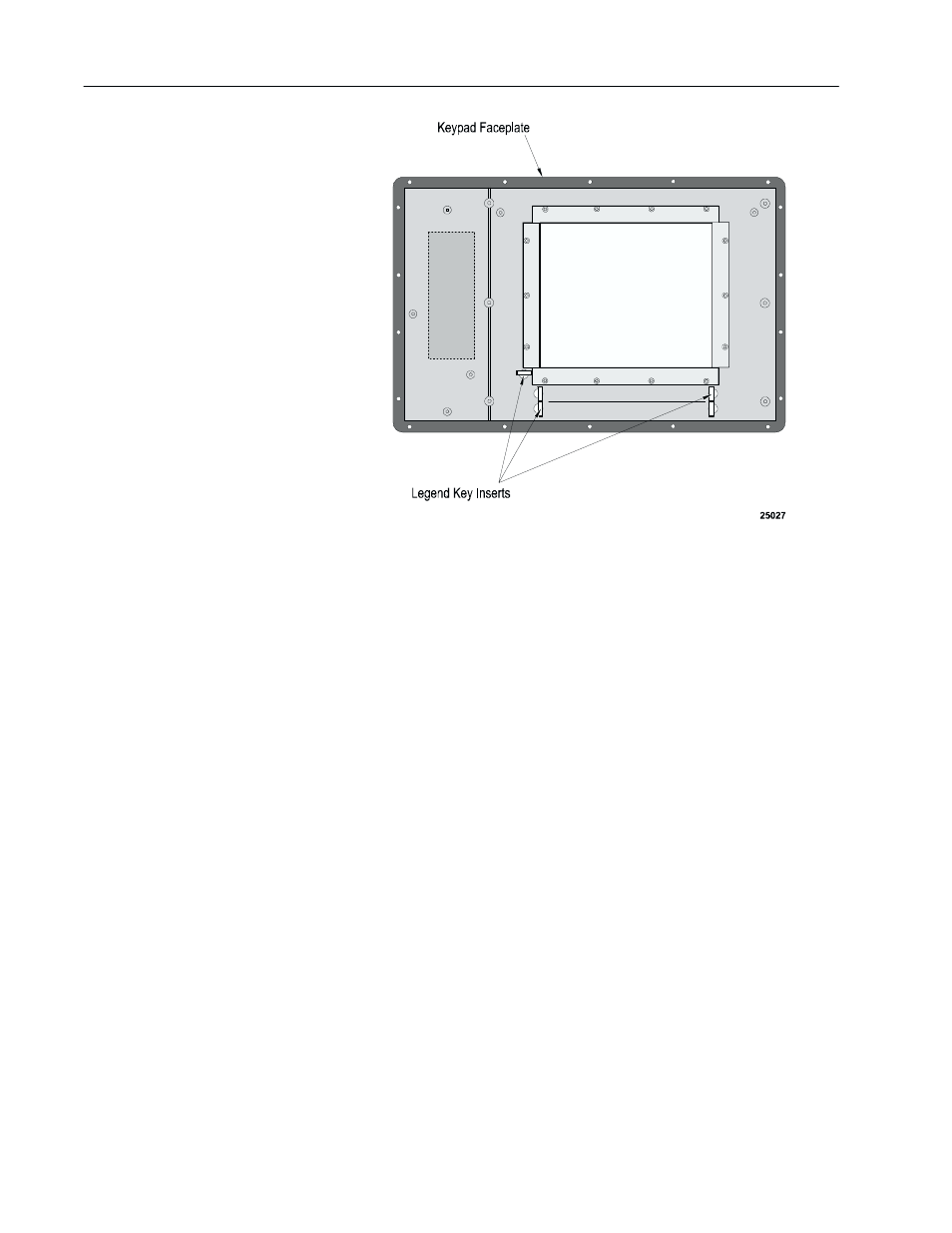

Pull gently on the blue tabs to remove the legend key inserts from
the old keypad faceplate and the new legend key inserts from the
replacement keypad faceplate. Carefully insert the customized
legend inserts from your old faceplate into your replacement
faceplate.
4. Verify that the keypad faceplate is clean. If there are any new
streaks or spots, remove them with glass cleaner and lint-free
wipes.
To attach the new keypad faceplate:
1. Place the new keypad faceplate flat on the table in front of the
terminal.
2. Apply Loktite on the bottom four or five threads of each of the
six screws. Be sparing with the Loktite.
3. Lift the faceplate into position onto the terminal. Fit the locating
pins on the faceplate into the openings on the terminal.
Important:
Be careful when aligning the pins with the holes.
If they aren’t properly aligned, the pins can
scratch the terminal.
Step 4. Attaching the New
Keypad Faceplate
