8 Industrial 19" CRT Monitor
Publication 6157-UM001A-EN-P
When properly installed, the panel mount version of the 6157- C
Industrial Monitor is designed to provide protection against water and
dust to NEMA 4 and 4X (IP 65 equivalent) and NEMA 12 (IP 52
equivalent) standards.
No slides or shelves are required because the 6157- C Industrial Monitor
is designed to be supported by the panels in which it is installed.

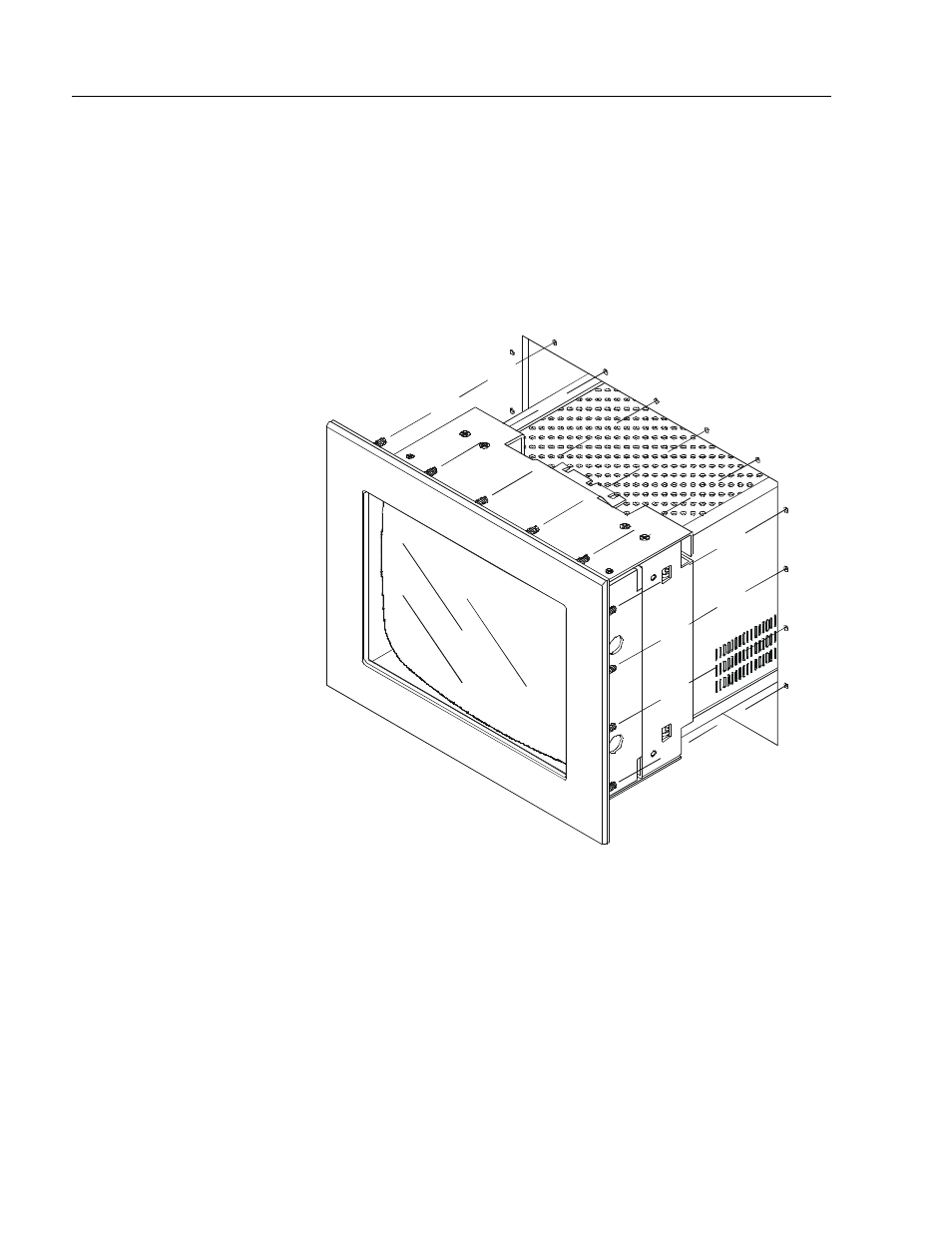

Figure 2
Generic Panel Mount Diagram
Tools Needed
In addition to the tools required to make the cutout, you will need the
following tools to mount the monitor:
•
3/8 in. deep well socket
•
¼ in. drive extension – 12 in. or longer
•
¼ in. drive ratchet or ¼ in. drive torque ratchet
Panel Mounting (6157-CE/
6157-CF)
