Keypads
A Bulletin 6151 Industrial Computer is equipped with:
• function keypad with 10 keys
• 33-key numeric keypad with numeric keys, cursor keys, and modifier
keys.
The following tables provide the scan code values for all the keys. Each
key can be set up as you need it for your work. The keypads are of
embossed membrane design for high reliability and good tactile
feedback.
Function Keys
Function keys 1 to 10 act in the same way as the equivalent keys on
standard IBM AT keyboards.

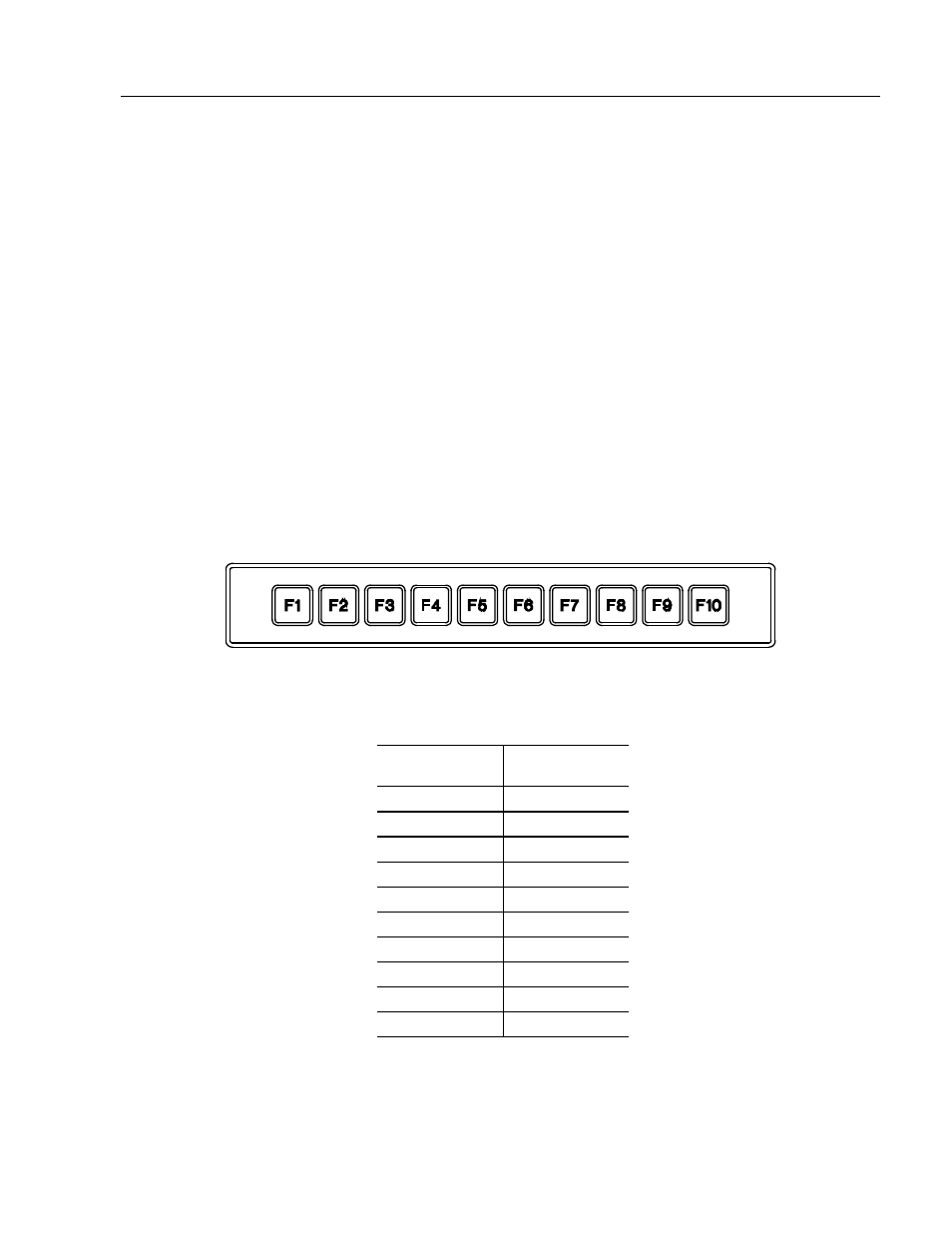

Figure 6
Function Keys
Table C
Function Key Scan Code Values
Keypad Legend Scan Code
(Hex)
F1 3B
F2 3C
F3 3D
F4 3E
F5 3F
F6 40
F7 41
F8 42
F9 43
F10 44
