6 Kinetix 6000M IPIM-to-IDM Hybrid Cable
Publication 2090-IN031B-EN-P - March 2012
5. Tighten the M23 connector approximately 45° to fully seat the contacts and secure the
connection.

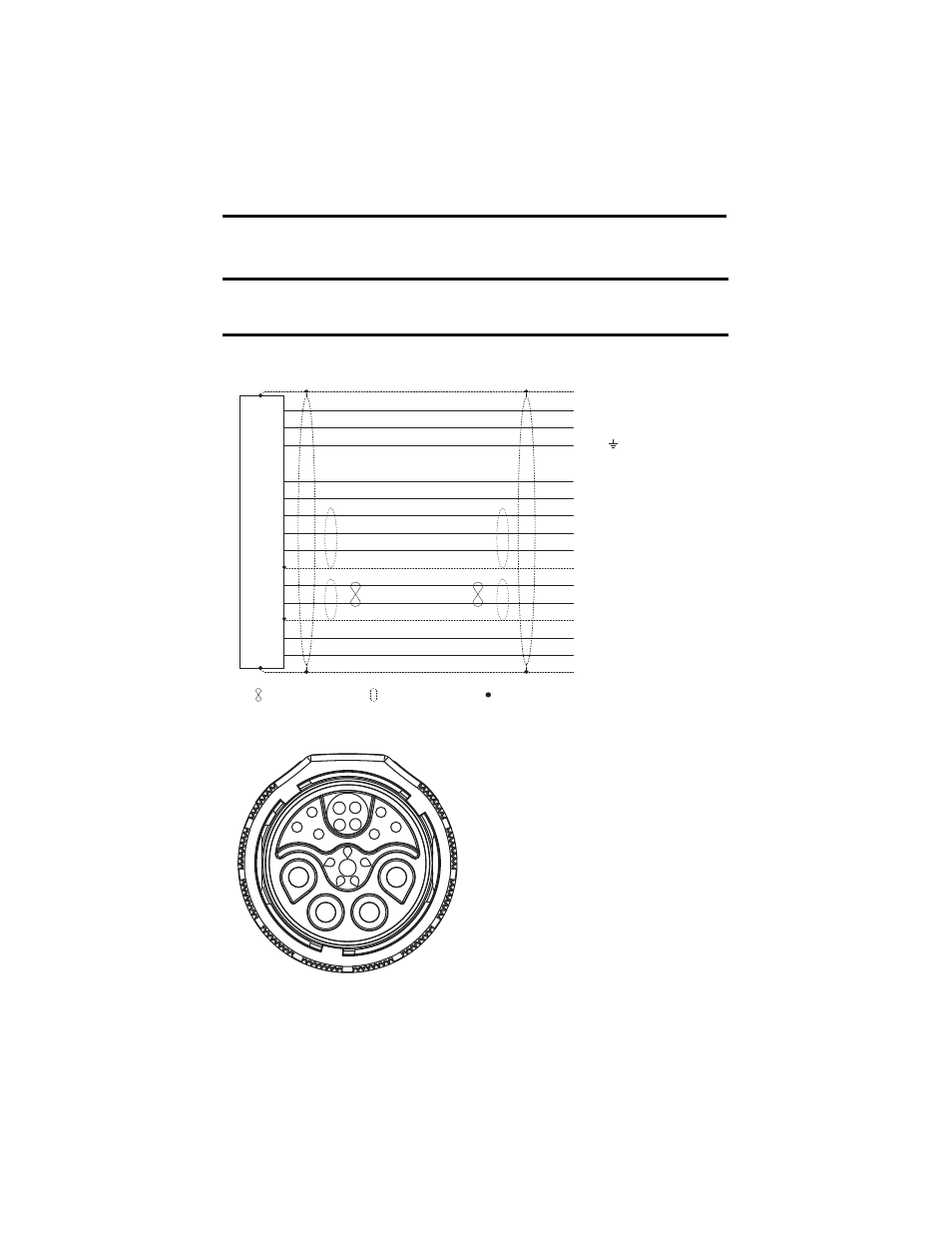

2090-CHBIFS8-12AA Cable Schematic and Connector Pinout
IMPORTANT
The internal O-ring is self-conforming and requires a short period between each
connect/disconnect cycle to expand to full size. Let the O-ring expand for at least 60 seconds
before reconnecting a hybrid cable.
A
B
GND
C
D
4
5
6
7
8
9
10
IPIM Terminals
DC+
DC-
42+
42-
SE1
SE-
SE2
SH3
CN-
CN+
SH2
OUT
RTN
(1)
(2)
(2)
(3)
(3)
(1)
Brown
Grey
Blue
White/Blue
Brown
White/Pink
Pink
Green/Yellow
Orange
Violet
Yellow
Braided Shield
Twisted pair
Shield
Wire Connection
1. The braided shield connects to the cable ground clamp with a 360º connection.
2. Drain wire provides continuity from the connector to the cable ground clamp.
3. Braided shield provides continuity from the connector to the cable ground clamp.
White/Brown
GND
7
8
9 10
6
5
4
1
3
2
D
A
B
C
Female Plug
