Installing the Wiring Base and Power Supply

3–5

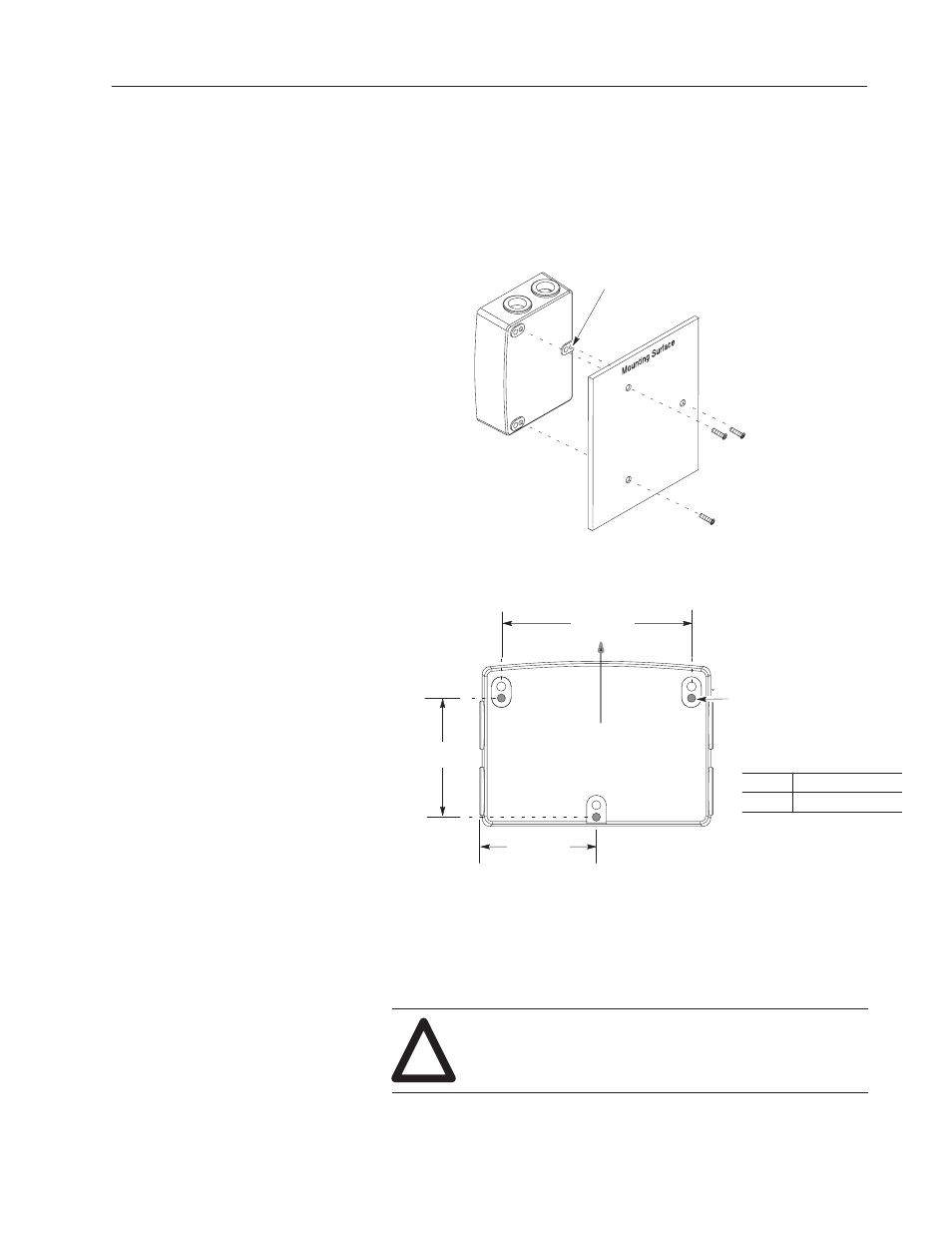

Bottom Mounting

The wiring base mounts from the bottom to any flat surface with
three mounting screws. The holes on the U.S. version have #10-32
UNF-2B threads. The holes on the metric version have M5 x .8
threads. The length of the screws must not be greater than 1/2 inch
(12.5 mm) plus the thickness of the mounting surface.

ОООООО

ОО

Wiring Base Has
Three Threaded
Mountng Holes

A full size mounting template is provided with the wiring base. Use
the following diagram for reference.

4.46 Inches

(113 mm)

2.65 Inches

(67 mm)

2.79 Inches

(71 mm)

ББ

Scan Beam

3 Holes
.6 inch (15 mm) deep

Thread Size of Holes

#10-32 UNF-2B
M5 x .8

U.S.

Metric

Wiring Base Dust Cover

To prevent debris from entering the wiring base when a Reader is not
installed, slip the dust cover over the base. The dust cover is held in
place by the stretch fit over the wiring base.

ATTENTION: The wiring base dust cover is not for
permanent installation. The dust cover temporarily
protects the wiring base until the Reader is installed.
