E3 Plus EtherNet/IP Adapter 11
Rockwell Automation Publication 2100-IN090A-EN-P - February 2012

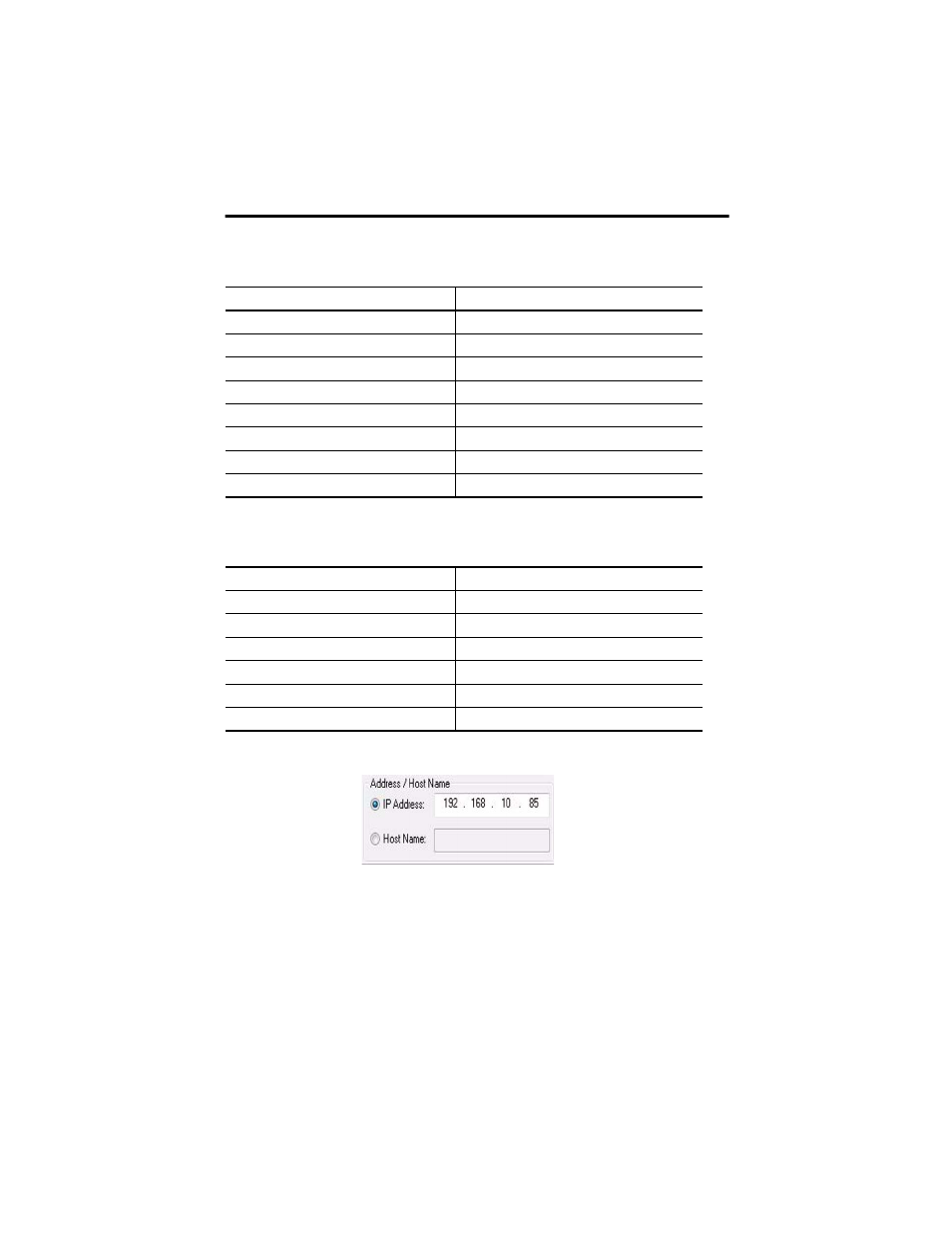

6. Enter the IP address of the E3 Plus EtherNet/IP adapter.
7. Click Next.
Output Assembly - Instance 105
Bit Contents
0 OutA
1 OutB
2 Fault Reset
3 Not Used
4 Not Used
5 Remote Reset
6 Not Used
7 Not Used
Input Assembly - Instance 100
Byte Size Contents
2 Bytes Header information (Pad Word)
2 Bytes Header information (Pad Word)
2 Bytes Value of parameter pointed to by parameter #61
2 Bytes Value of parameter pointed to by parameter #62
2 Bytes Value of parameter pointed to by parameter #63
2 Bytes Value of parameter pointed to by parameter #64
