10 E3 Plus EtherNet/IP Adapter
Rockwell Automation Publication 2100-IN090A-EN-P - February 2012

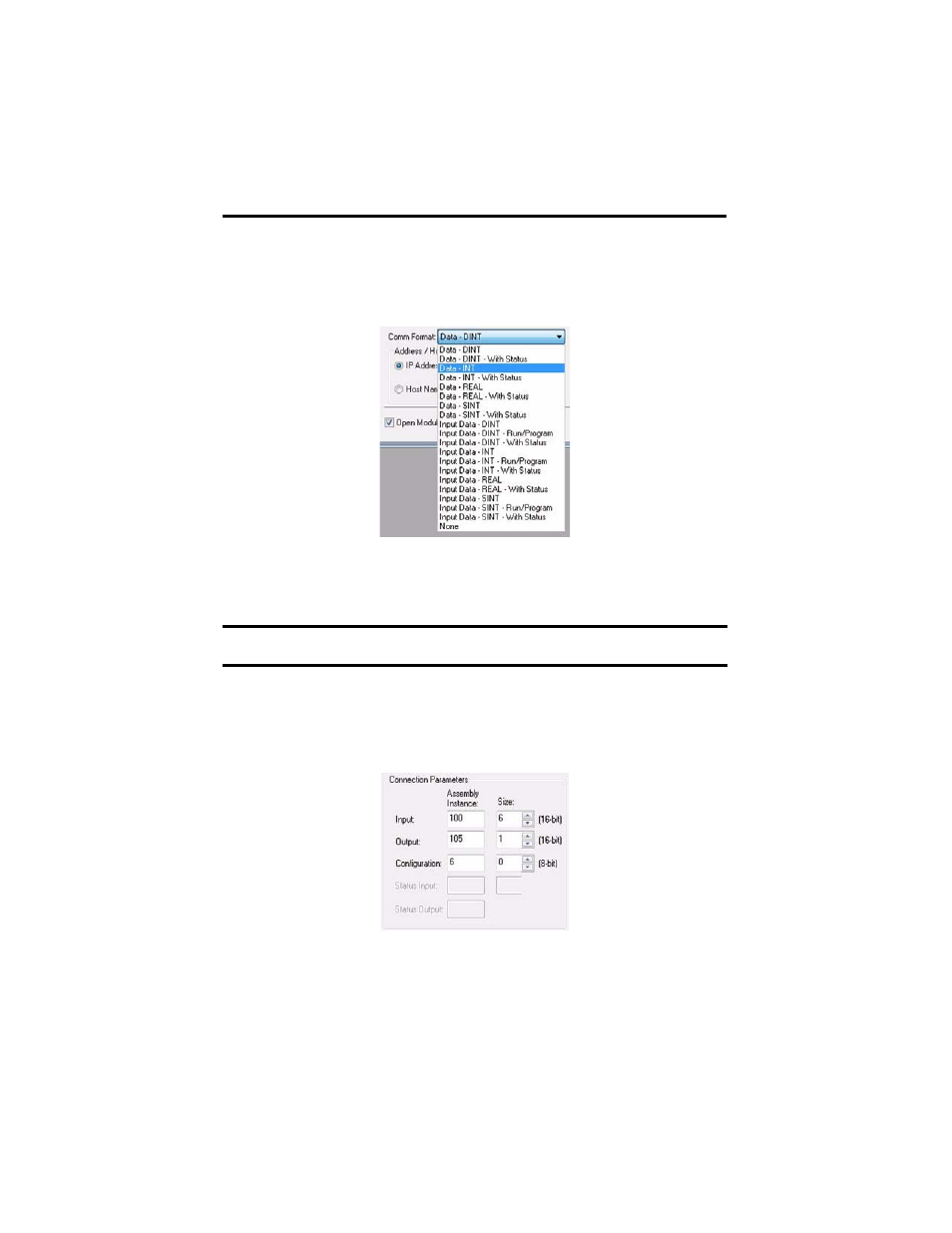

4. Select Data-INT for the Comm Format.
The Comm Format tells RSLogix 5000 software the format of the data. The Data-INT
format represents the data from the E3 Plus EtherNet/IP adapter as a field of 16-bit
values.
5. Set the Connection Parameters.
I/O data is accessed using Input Instance 100 and Output Instance 103 (for E3
standard) or 105 (for E3 Plus) by default.
The size of the input connection and the output connection shall correspond to the size
of the chosen instance. For Instance 100, the size is 6. For Instances 103 and 105, the size
is 1. The E3 Plus EtherNet/IP adapter Configuration Assembly Instance is 6. Currently,
the 2100-ENET adapter does not support the configuration assembly.
IMPORTANT If you have already changed the Input and Output Assemblies, you will need to enter those
values instead of the default values.
