Connect the 2706-P92C and 2706-P94C Displays
1. Open the front of the sign case by turning the half-turn latches to the left
with a large screwdriver. (On the 2706-P92C, there are 3 half-turn latches; on
the 2706-P94C there are 5.) Carefully let the front of the case drop forward.
2. Feed electrical cable through 1/2” water-tight conduit, the outside end of the
connector (supplied), the electrical opening in the sign case, and then
through the inside end of the connector. Screw the inside and outside ends
of the connector together until water-tight.
WARNING
HAZARDOUS VOLTAGE
• Contact with high voltage may cause death or serious injury. Always disconnect
power to sign prior to servicing.
•
Maintain Separation of circuits. Route the incoming power directly to the power
connection terminal block.
•
Do not run the power wiring over the logic board or optional Legacy Communication
board.
TIP
Use either of the two holes nearest the power connection terminal block.

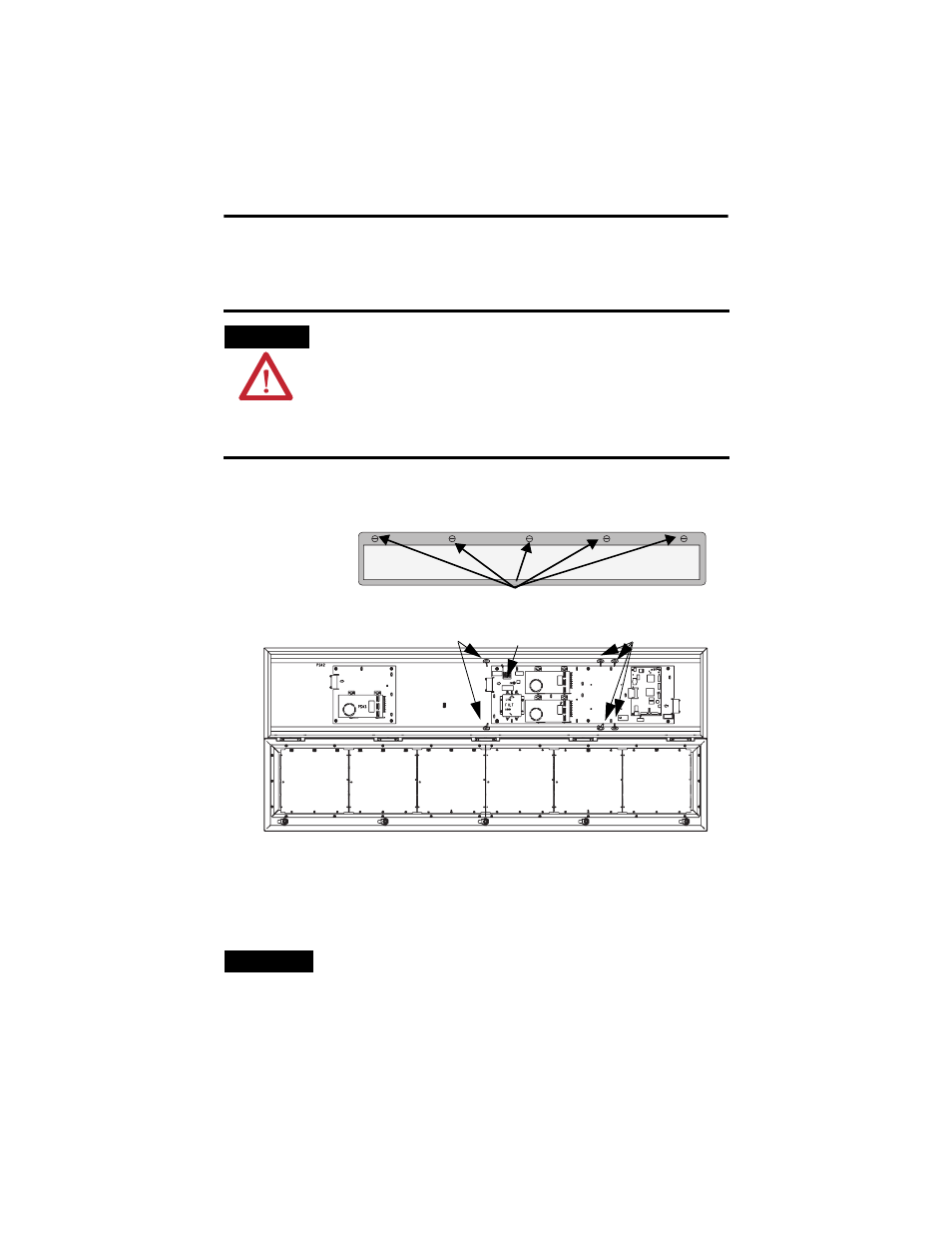

Half-turn Latches on an 2706-P94C Sign
Front View, closed
Front View, open
Power Connection
Terminal Block Electrical
Opening Communication
Opening
