Rockwell Automation 2093-PRSxx Kinetix 2000 Power Rail Installation Instructions User Manual
Page 63
Kinetix 2000 파워 레일 63
Publication 2093-IN004A-MU-P - 2006.12
고주파 소음을 효과적으로 감소시키는 결합 기술에 대해서는, 전기적 소음
컨트롤을 위한 시스템 디자인 참고 자료 GMC-RM001 을 참조하십시오 .
3. 모든 마운팅 파스너를 조이십시오 .

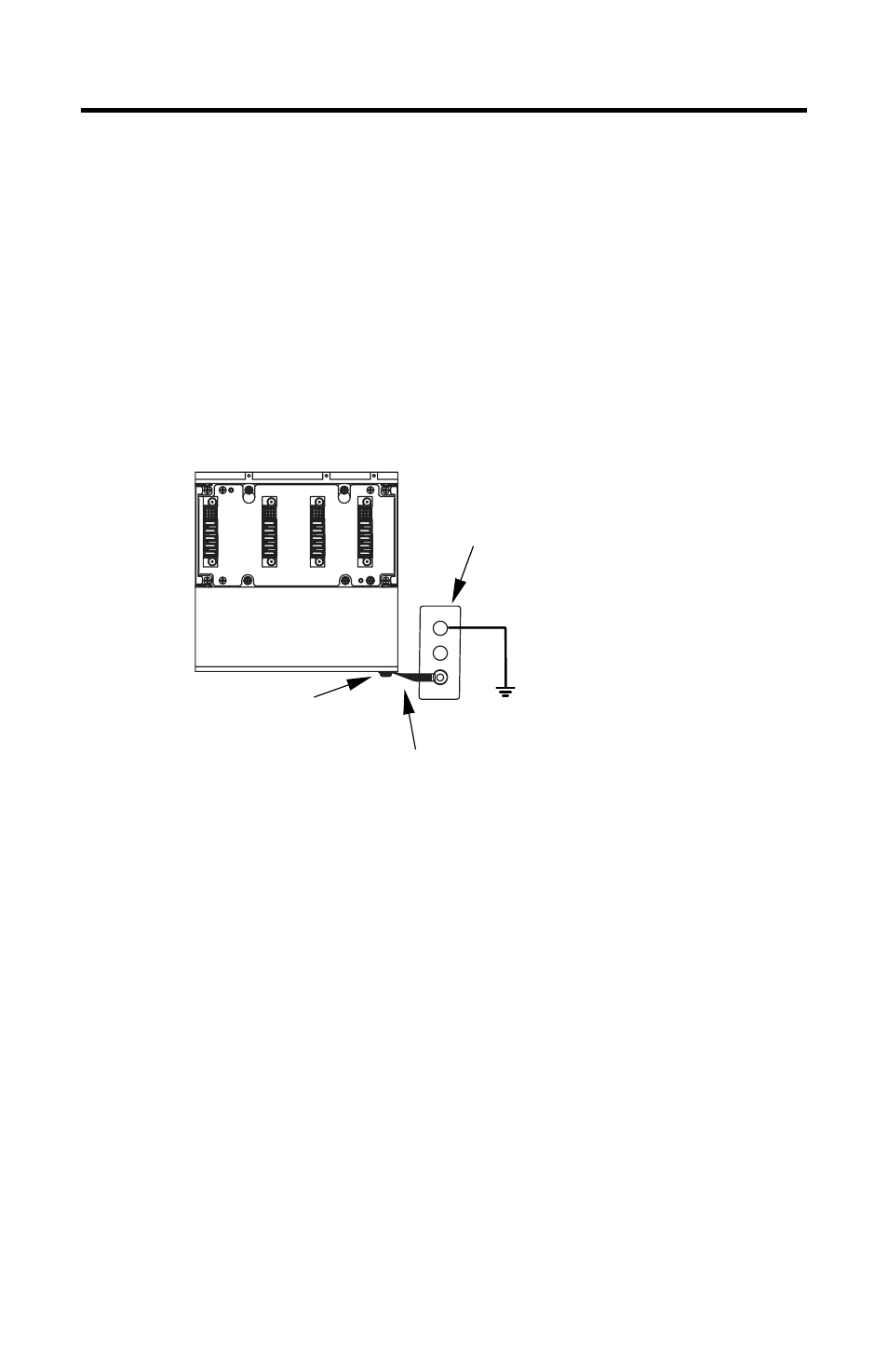

4. 다음 그림에 나타난대로 , 접지 스터드와 결합된 캐비넷 접지 사이에
편복선 접지 스트랩을 부착하십시오 .
편복선 접지 스트랩 부착
편복선 접지 스트랩
100 mm (3.9 in.)
접지 그리드 또는 전력
분배 접지
결합된 캐비넷
접지 버스
Kinetix 2000 파워 레일
(2093-PRS3 에서 나타냄 )
파워 레일
접지 스터드
